MSD
TM
Series
© Copyright 2018 Fluid Equipment Development Company | www.fedco-usa.com
- 32 -
Pump Assembly Continued
A
C
A
A
B
B
NOTES: Pump horizontal alignment is adjusted
by rotating the precision leveling foot jacking
bolts in or out.
NOTES: The space between the motor adapter
and motor can be adjusted by rotating the in-
line jacking bolt in or out. (Refer to gure be-
low)
1. Using the described Horizontal Lifting and
Handling methods described in this manual,
place the MSD in it’s horizontal mounting
position.
2. Completely loosen both top nuts on each of
the precision leveling feet.
3. Completely loosen all precision leveling foot
jacking bolts and tighten the in-line jacking
bolt.

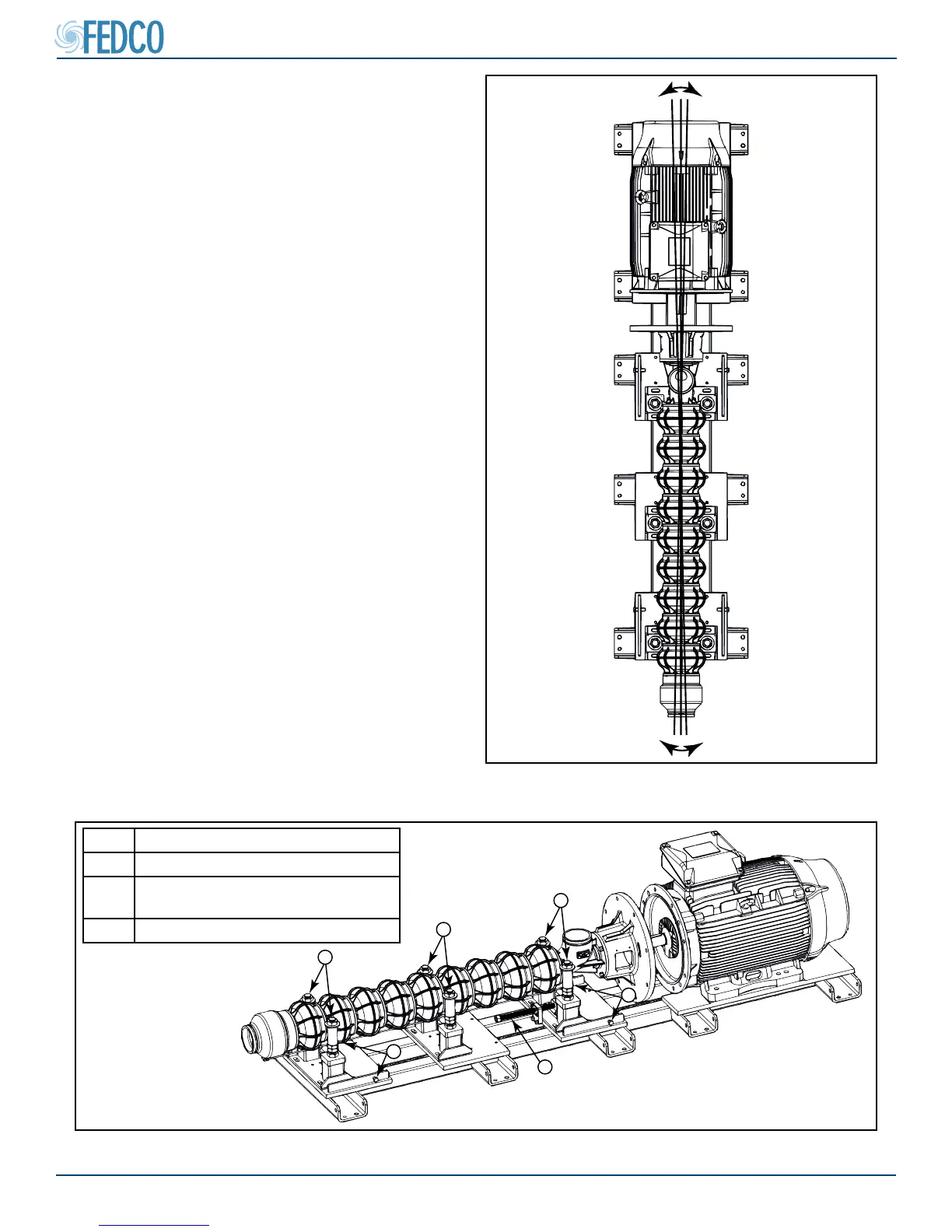

Figure 50 - Pump Assembly Horizontal
Alignment
Figure 51 - Precision Leveling Foot Adjustment (Initial)
Item Description
A Precision leveling foot top nuts
B Precision leveling foot jacking bolts
(not provided by FEDCO)
C In-line jacking bolt
To Next Page
