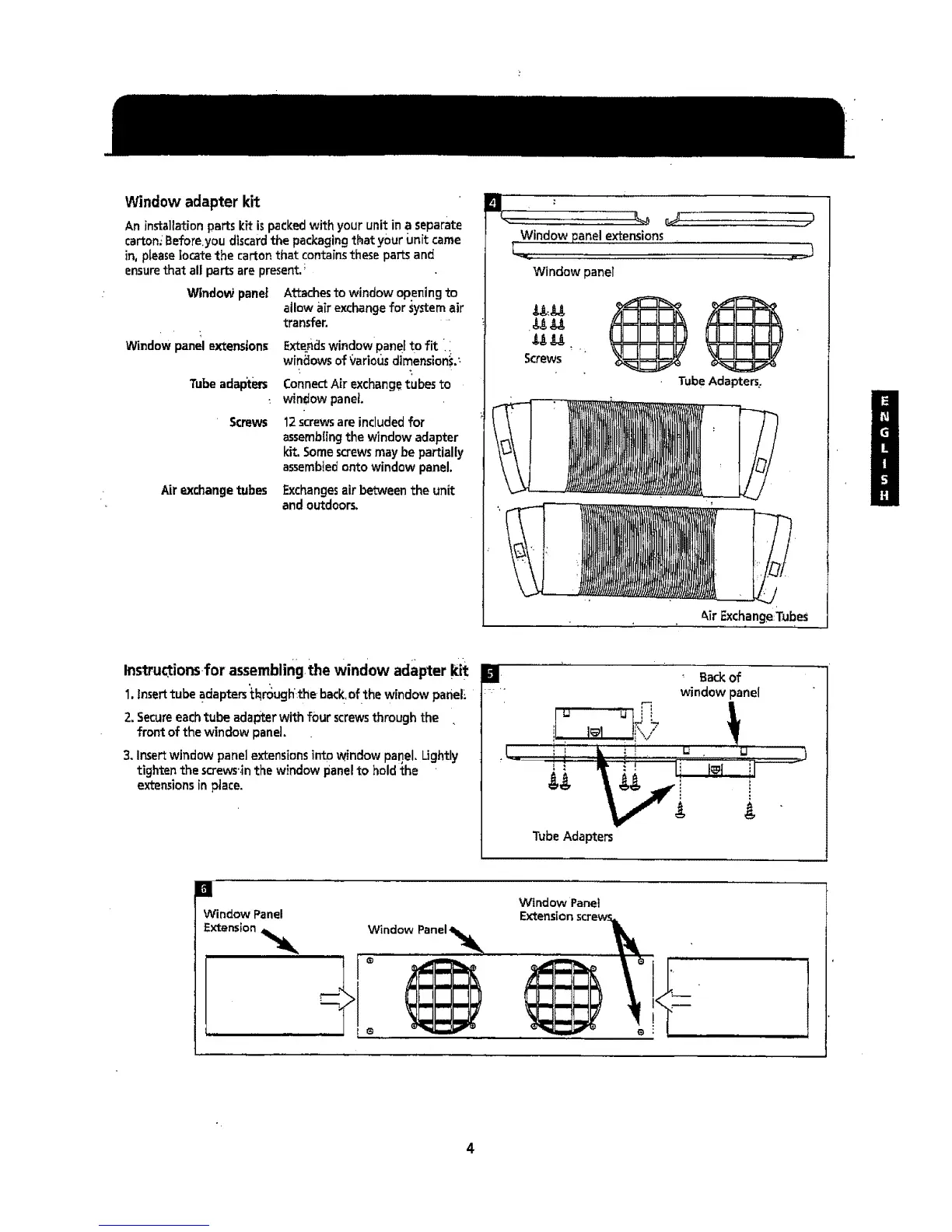

Window adapter kit
An installation parts kit is packed with your unit in a separate
carton_ Before.you discard the packaging that your unit came
in, please locate the carton that contains these parts and
ensurethat all parts are present.
Wtndow panel
Window panel extensions
Tube adapters
Screws
Attachesto window openingto
allow air exchangefor Systemair
transfer.
Extenclswindow panel to fit .i
windows of Various dim ension_.=
Connect Air exchange tubes to
window panel
12 screws are included for
assernb[ing the window adapter
kit. Some screws may be partially
assembled onto window panel.
Airexchangetubes Exchangesairbetweenthe unit
and outdoors.
J
Window panel extensions
E
Window panel
Screws
@@
Tube Adapters.
=/
Air Exchange:Tubes
Instructions-forassembling,the window adapter kit
1.Insert tube adapters '_hrough:the back,of the window panel
2. Secure each tube adapter with four screws through the
front of the window panel.
3. Insertwindow panelextensionsintowindow panel. Lightly
tighten the screws'.inthe window panelto hold the
extensionsin ptace.
.
Tube Adapters
Back of
window panel
,
[]
Window Panel
Extension
Window Pane!
Window Panei_lk_ Extens,on scr,w_l_
4
