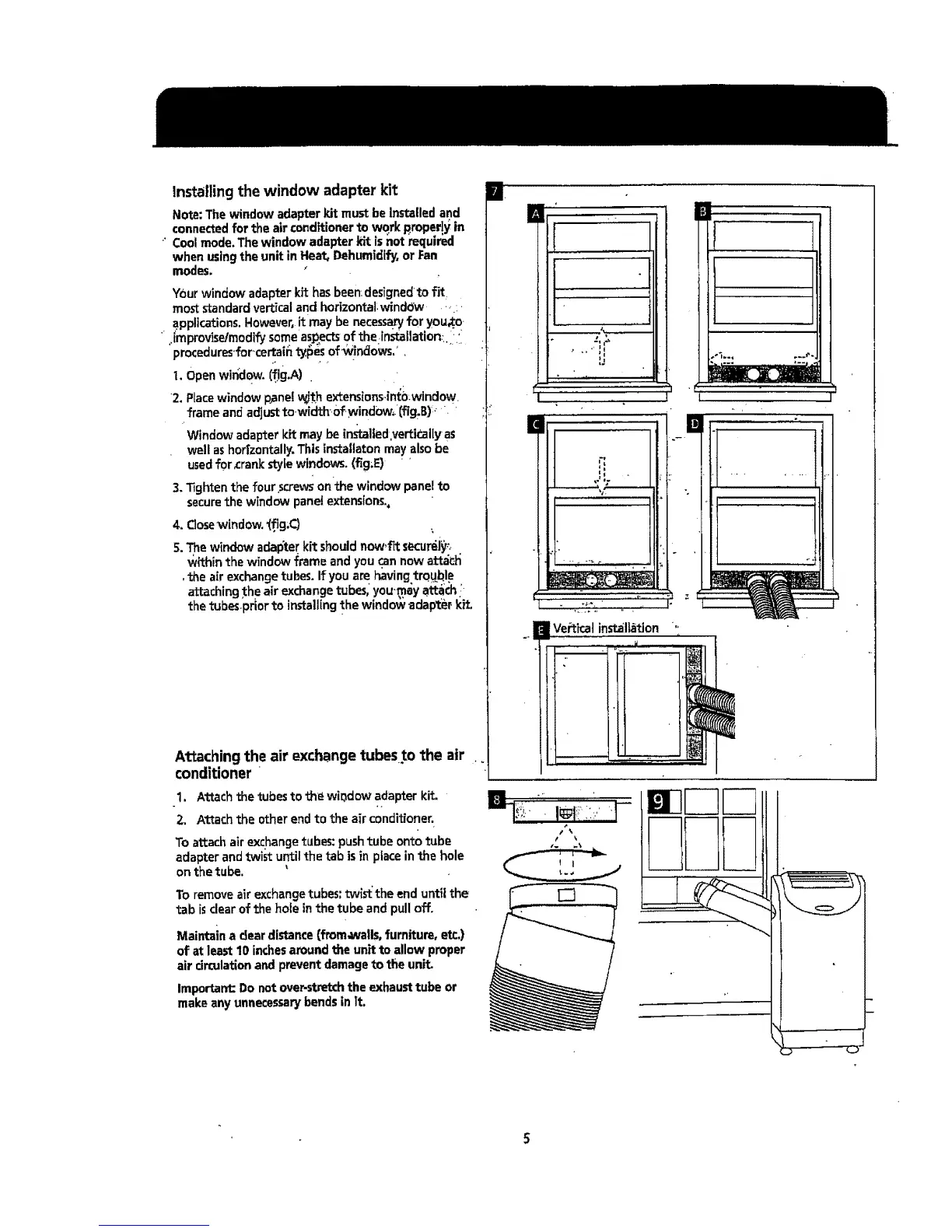

installing the window adapter kit
Note:Thewindow adapterkit must be Installedand
connectedforthe air conditioner to workproperlyin
Coolmode.Thewindow adaptertrit isnot mquir_
when usingthe unitin Heat,Dehumidify.or Fan
modes.
Yourwindow adapterkit hasbeen designedto fit
most standardverticaland horizontal:window ....:
applications,However,it maybe necessarYfor you_o
,improvise/modifysomeaspectsof theinstallation_.'i
'procedures'for'ce_aii_ty_e_;of_itndowsJ , °
1. Openwir_dow.(fig.A)
2. Placewindowp_aneiwjth extensionsintb:window
frameand adjustto widthofwindow, [fig.B)_:__=,
Windowadapterkit maybe instalted,vertiCallyas
well ashoffzontally.Thisinstallatonmayalsobe
usedfor _:rankstylewindows.(fig;E) •
3. Tightenthe four screwson the window panelto
securethe window panelextensions.,
4. Closewindow._g;C)
5. Thewindowadapterkit shouldnow,fit sL_curel_
Within the windowframe andyou cannowattac_
,the air exchangetubes.Ifyouapehavingtrquble
attachingthe air exchangetubes,you.mayattach_
thetubes priorto installingthe windowadapter kit_
Attaching the air exchange tubesto the air
conditioner
1. Attachthetubesto th_ wi0dow adapter kit.
2. Attachthe otherendto the airconditioner.
To attachairexchangetubes: pushtube ontotube
adapterand_wistuntilthe tab isin placeinthe hole
onthetube.
Toremoveair exchangetubes:twi_the end until the
tab isclearof the hole inthe tube andpulloff.
Maintaina deardistance{from,walls,furniture,etc.)
of at least10 inchesaroundthe unit to allow proper
air circulationandpreventdamageto t!_eunit.
Important: Do not over-stretch the exhaust tube or
make any unnecessary bends in It.
