C9

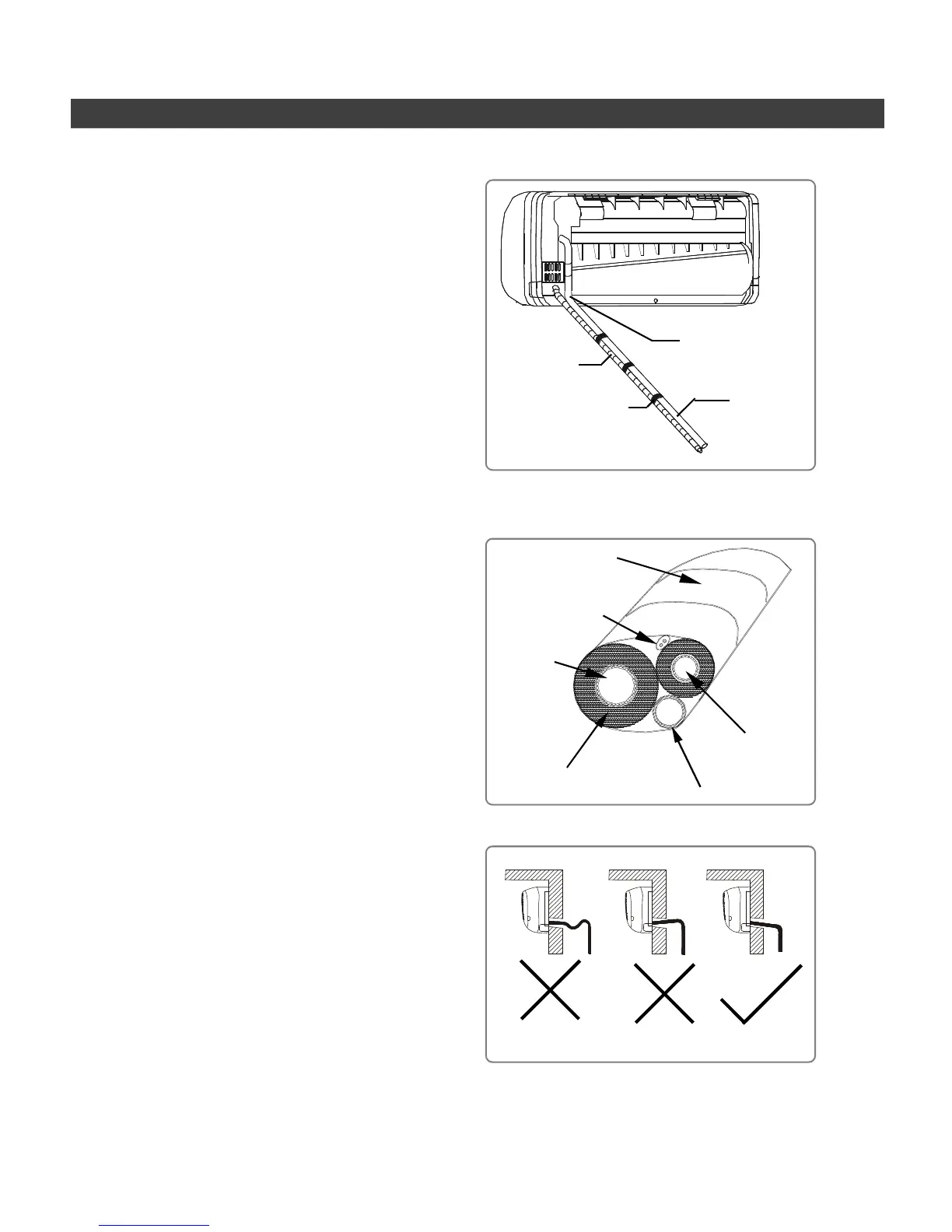

Sealing The Drain Hose And Tubing
• Wrap the drain hose, tubing and elec-
tric wire together with polyethylene
tape.
• Wrap all exposed tubing with tape
except tubing, which will rest inside the
unit.
Drain hose
Tubing
Polyethylene tape
Use caution
when bending
Piping Tape
Gas Pipe
Insulations
Drain Pipe
Liquid Pipe
Connecting Wire
• Insert the tubing, hose and wire
through the wall tube with the drain
hose in the lowest position.
• Make sure the tubing, hose and wire
angle downwards as they pass through
and exit the wall tube.
INDOOR UNIT INSTALLATION
To Next Page
