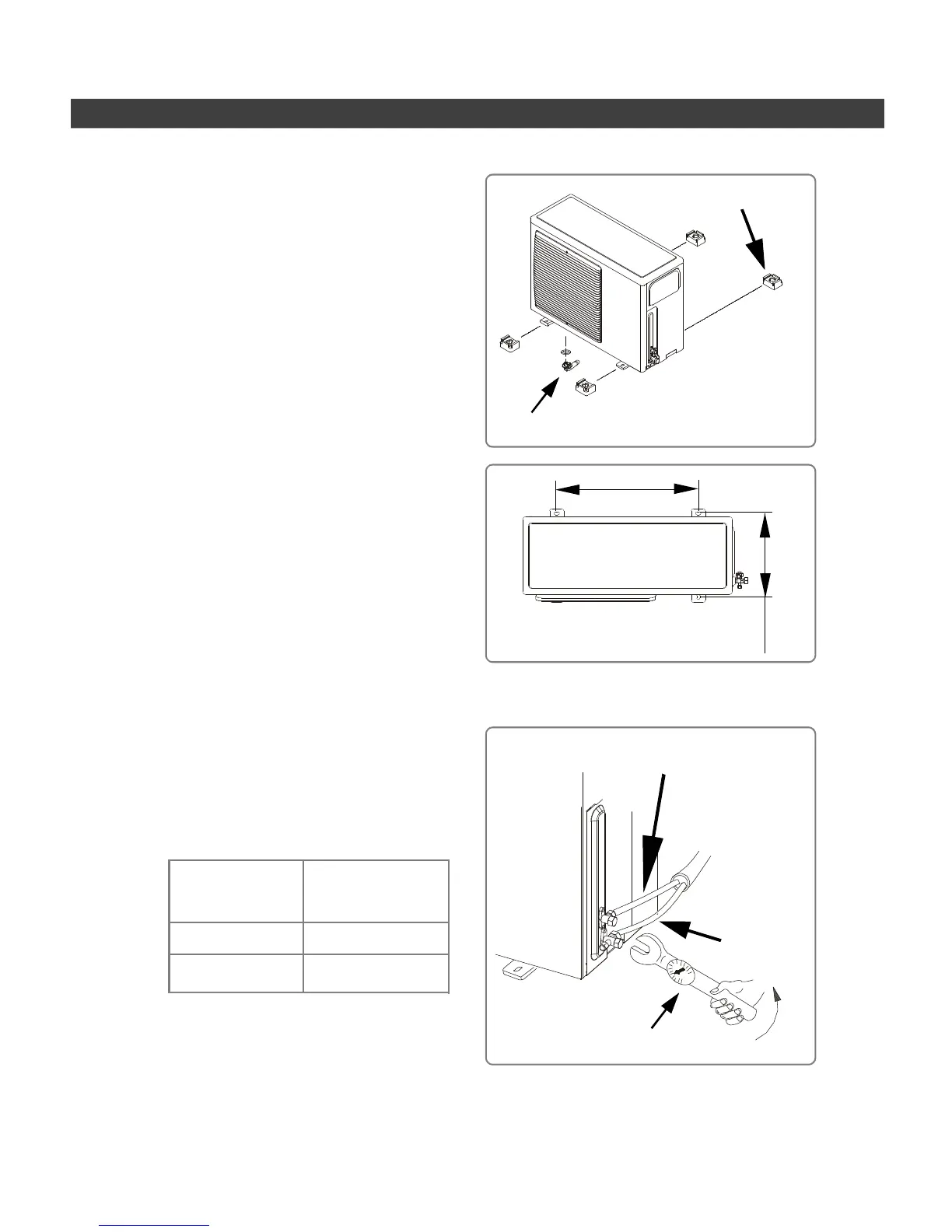

OUTDOOR UNIT INSTALLATION
Installing The Outdoor Unit
• Attach the Base Leg Damper by
sliding the slot into the base of the
outdoor unit.
• Attach the drain gasket and drain
adapter to the base pan of the unit
before you secure the unit.
• Fasten the unit down, referred to
the mounting dimensions as
shown here.
604mm
356mm
Connecting The Pipe To The Outdoor Unit
• Align the center of the piping and
sufficiently tighten the flare nut with
fingers.
• Finally, tighten the flare nut with torque
wrench according to the Table shown
here.
Torque Table
Torque
Wrench
Liquid
Line
Gas
Line
Pipe Size
Diameter
Torque (N.m)
35.6 - 44.4
9.52mm (3/8”)
15.87mm (5/8”) 58.7 - 73.2
Base Leg Damper
Drain Adapter
