Federal Signal Corporation Serial Interface Module User Manual

Installation and Programming Instructions for the Serial Interface Module
10
Serial Interface Module
Federal Signal www.fedsig.com

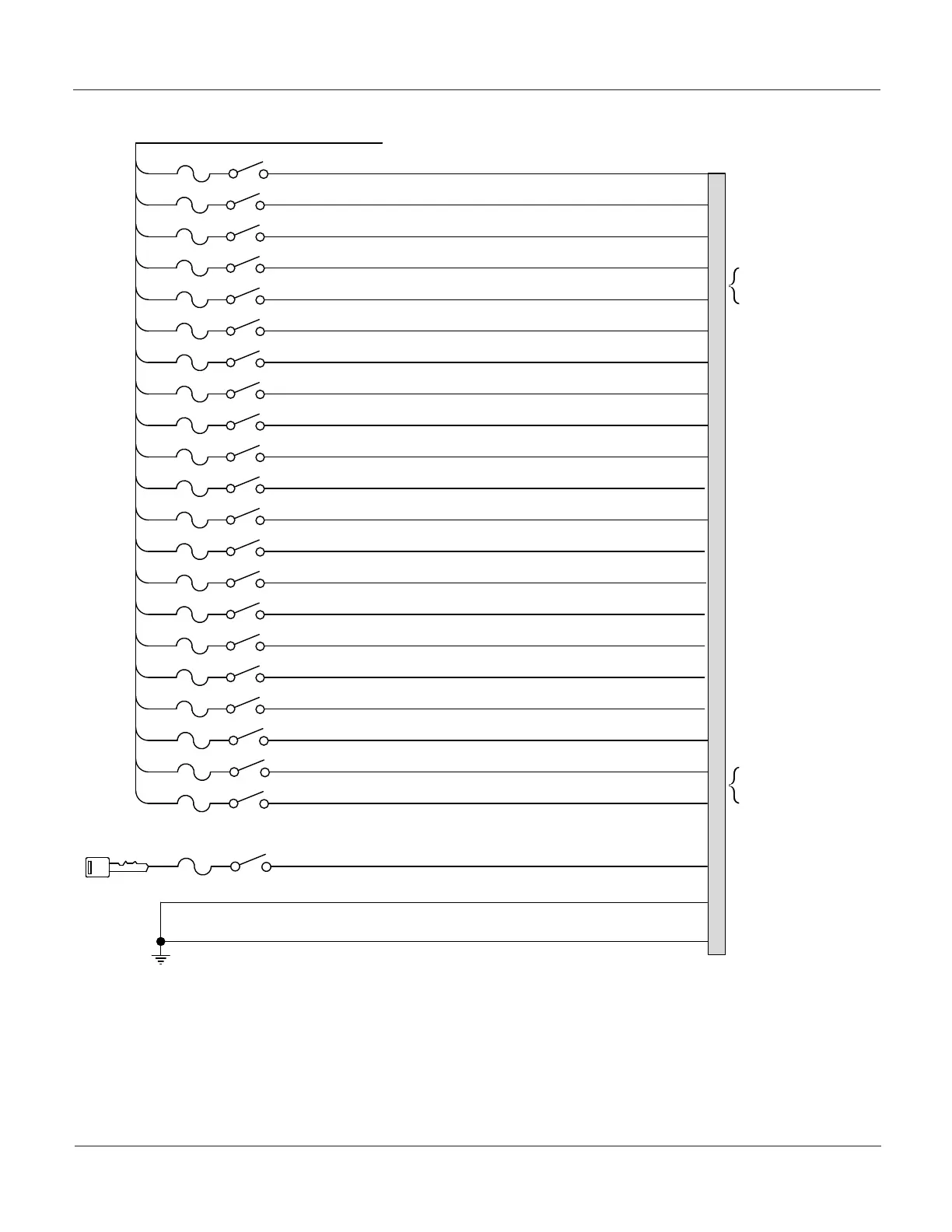

Figure 4 SignalMaster control functions wired to 12 Vdc for Internal Control (factory default)
Blue/Black
Red/Black
Orange/Red
Green/Black
White/Black
Green/White
Orange/Black
White/Black/Red Low Power
Black/White/Red Light Bar Test
Red SignalMaster Left
Green
Green/Black/White
Orange/Green
Orange
Blue/Red
Red/Green
White/Red
Ignition PowerWhite
Black Ground 1
Black/White Ground 2
Ignition*
* Ignition power includes power in the cranking position
290A7695
Power (+12 Vdc)
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
1 A
Mode 2
Mode 1
Steady Burn
Intersection
Flash Takedown/Alley
Right Alley
Left Alley
Front Cutoff/Enable
Rear Cutoff/Enable
Black/Red Mode 3
Takedown
Blue/White
Blue
Red/Wite
SignalMaster Center
SignalMaster Right
SignalMaster Warn 1
SignalMaster Warn 2
SignalMaster Warn 3
SignalMaster Warn 4
Fast
J1 Cable to
Serial Interface
Module
(Or Scene Light, Left with SW-2 Switch 3
Down [On] in the Serial Interface Module)
(Or Scene Light, Right with SW-2 Switch 3
Down [On] in the Serial Interface Module)
Available in Light Bars with
Spectralux technology
(Valor and Vision SLR)
Available in Light Bars with
Spectralux technology
(Valor and Vision SLR)
