SmartSiren Platinum Convergence Network
54
CHAPTER 8
Control Head Legends and Safety Messages
To complete the installation, the SmartSiren kit includes:
◆ A scored sheet of replaceable keyhead legends that identify the functions of the control head
buttons (part no. 181460). Before installing the legends, congure the operation of the control
head with the Convergence Conguration Software (see the Convergence Network Software
Conguration Manual, part no. 2562418).
◆ A scored sheet of two labels with precautions to guard against hearing loss when operating the
siren amplifier/relay module (part no. 1612339).
◆ A safety message card for operators of Federal Signal Sound and Light System (part no.
256B691).
Applying the Replaceable Control Head Legends
To apply the legends:
1. Peel the appropriate legends from the sheet and apply them to the control head in the areas shown
in Figure 8.1.
2. Verify that the label is properly tucked under the retaining ridge on the button.

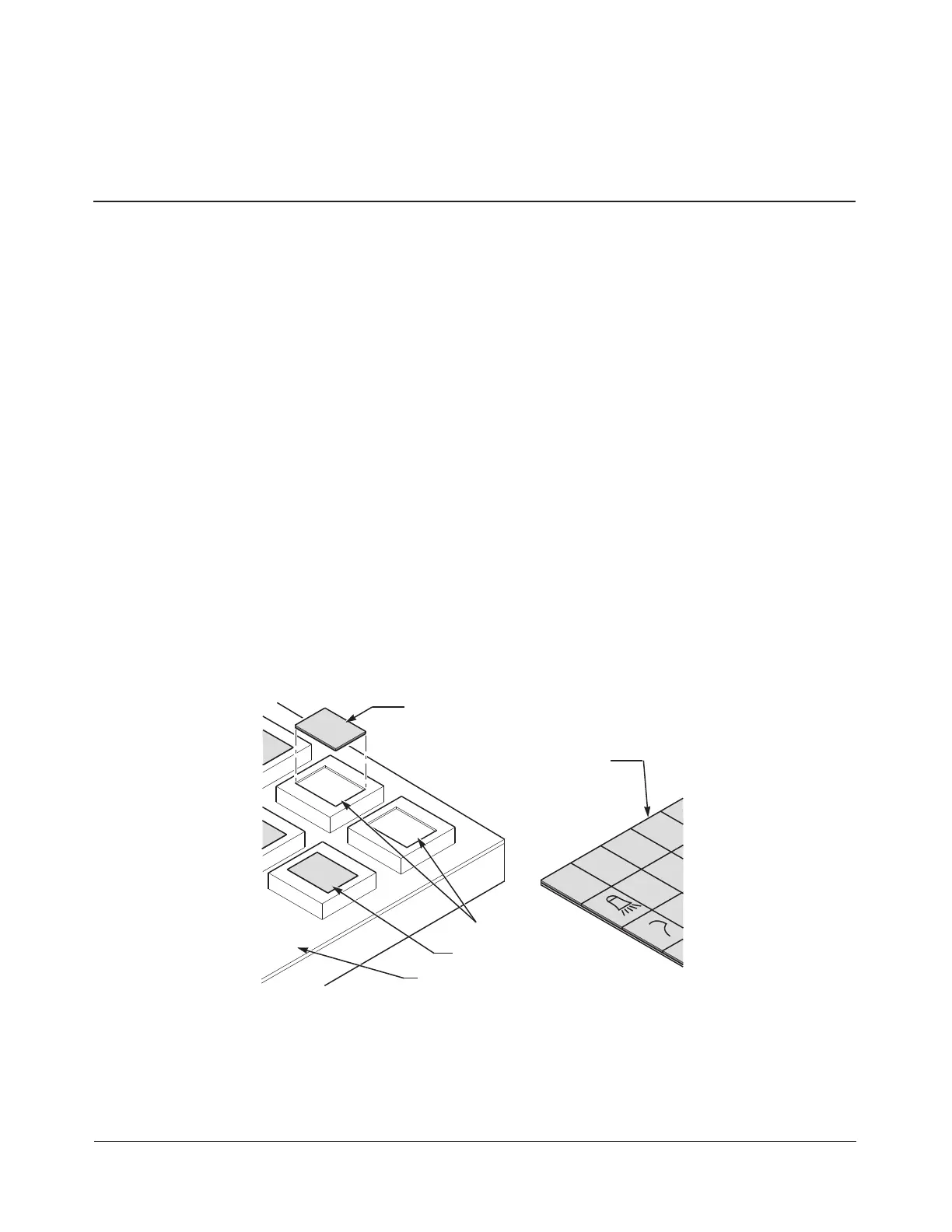

Figure 8.1 Installing the control head labels
DOOR
AREA
P
AUX 1
WAIL
WAIL
DOM
AUX 2
A / H
AU
Y
RIGHT
ALLEY
E
290A6323
MAN
LEGEND STICKER
REMOVED FROM
ADHESIVE SHEET
ADHESIVE SHEET
BLANK PUSHBUTTONS
INSERTED LEGENDS
CONTROL PAD
To Next Page
