Assembly 3）Collection bag fixing bracket assembly—Insert the left and right ends of the collection bag fixing bracket into the
corresponding four holes on the upper handrail bar assembly.

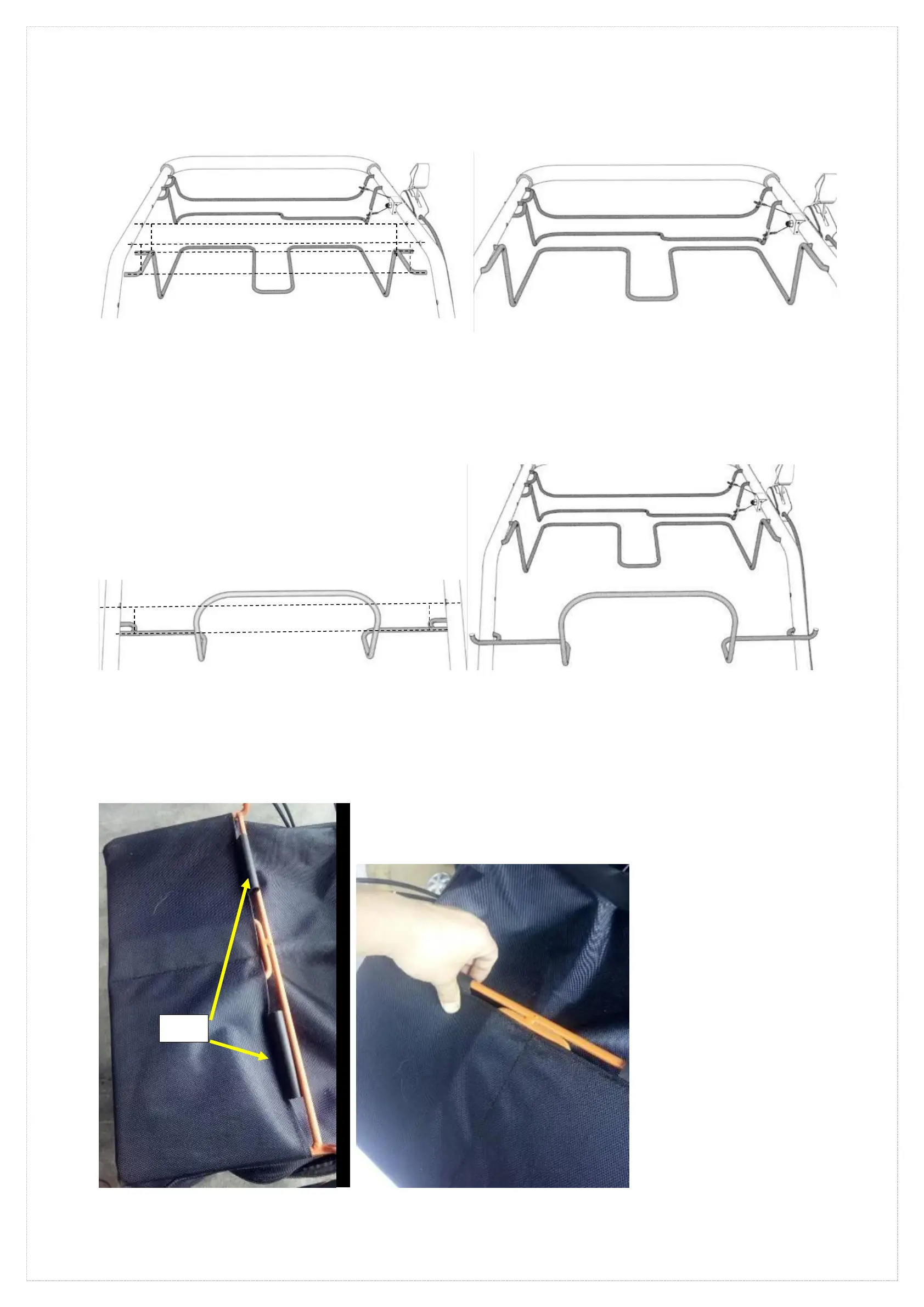

Fig.8-1 Assembly guide
Fig.8-2 Assembly completion diagram
Assembly step 4）Hose bracket assembly—Insert the left and right ends of the hose bracket into the corresponding two holes
on the upper grab bar assembly.
Fig.9-1 Assembly guide Fig.9-2 Assembly completion diagram
Assembly step 5）Collection bag assembly—Put the upper layer of the collection bag into the collection bag fixing bracket，The left
and right clips are fastened to the bracket. Hang the two left and right hanging plates on the ends of the hose fixing bracket. Press the
baffle and open the rear cover，Insert the collection bag interface into the back cover bracket.
