8. Installation
The Reader has been designed for wall installation on 60 mm flush-mounting box. For surface in-
stallation you can use the surface adapter.
NOTES:
• The Reader must not be installed directly upon conductive materials as e.g. metal sur-
faces, metal grids (reinforcements) or metallized surfaces, as these surfaces reduce the
detection range of the Reader.
• If the reader is installed in a metal frame it must be ensured that a minimum distance of
25mm to the reader is observed.
• Closed metal frame loop must be interrupted on one position.
If an installation to a metal surface becomes necessary, the surface adapter can be em-
ployed in order to keep the minimal distance.
• The distance between two Readers of the same type should not fall below 30 cm.
• Before any installation the intended position of the Reader should be tested for its suit-
ability.
X1
1

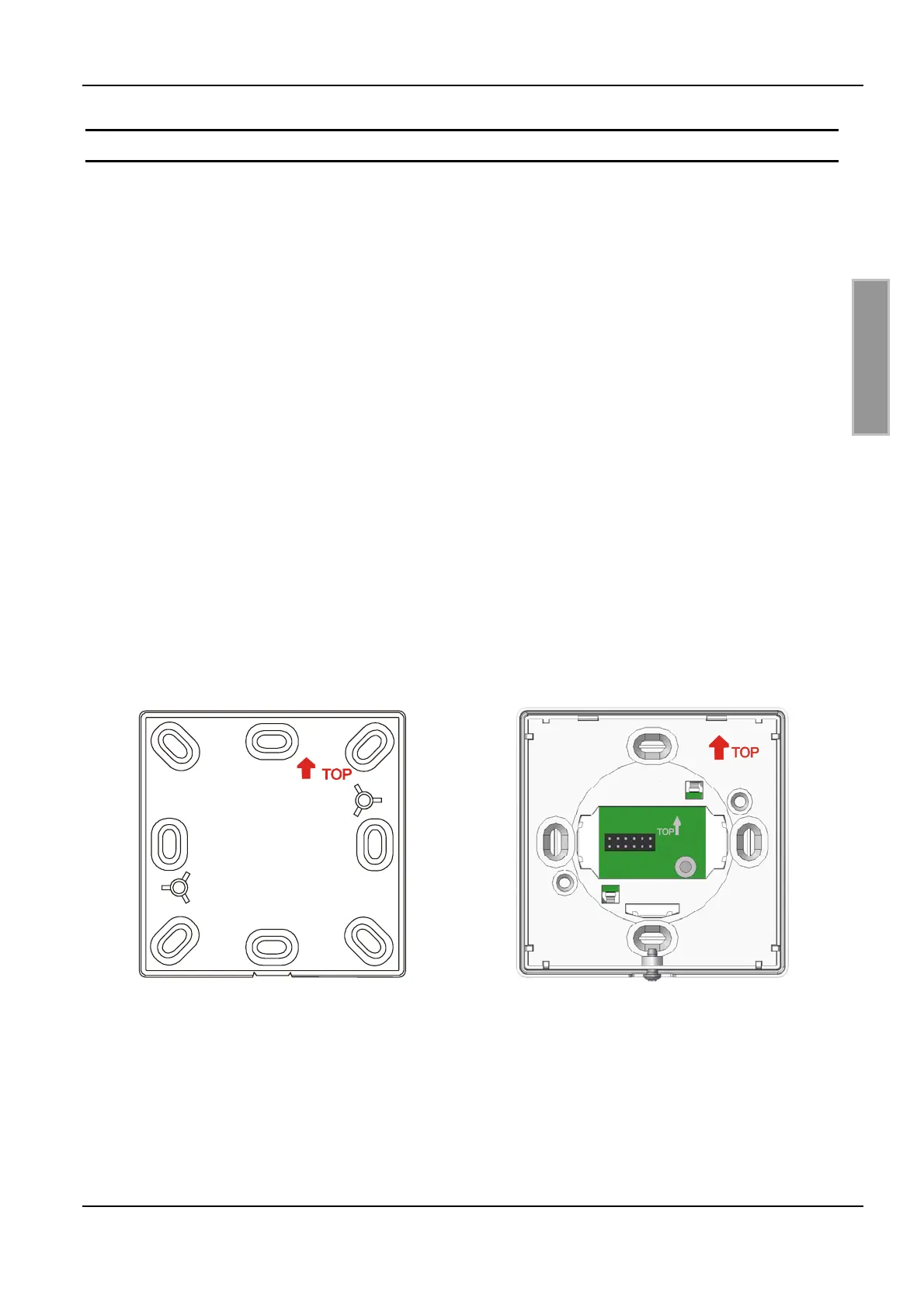

Fig. 2 Surface adapter,
Mounting direction,
(⇑ TOP) on top position
Fig. 3 Concealed casing,
Mounting direction,
(⇑ TOP) on top position
