9.5. Dimensions
X1
1
84,2 mm
84,2 mm
60,0 mm
60,0 mm
77,7 mm
56,8 mm
60,0 mm
28,4 mm
28,4 mm
77,7 mm

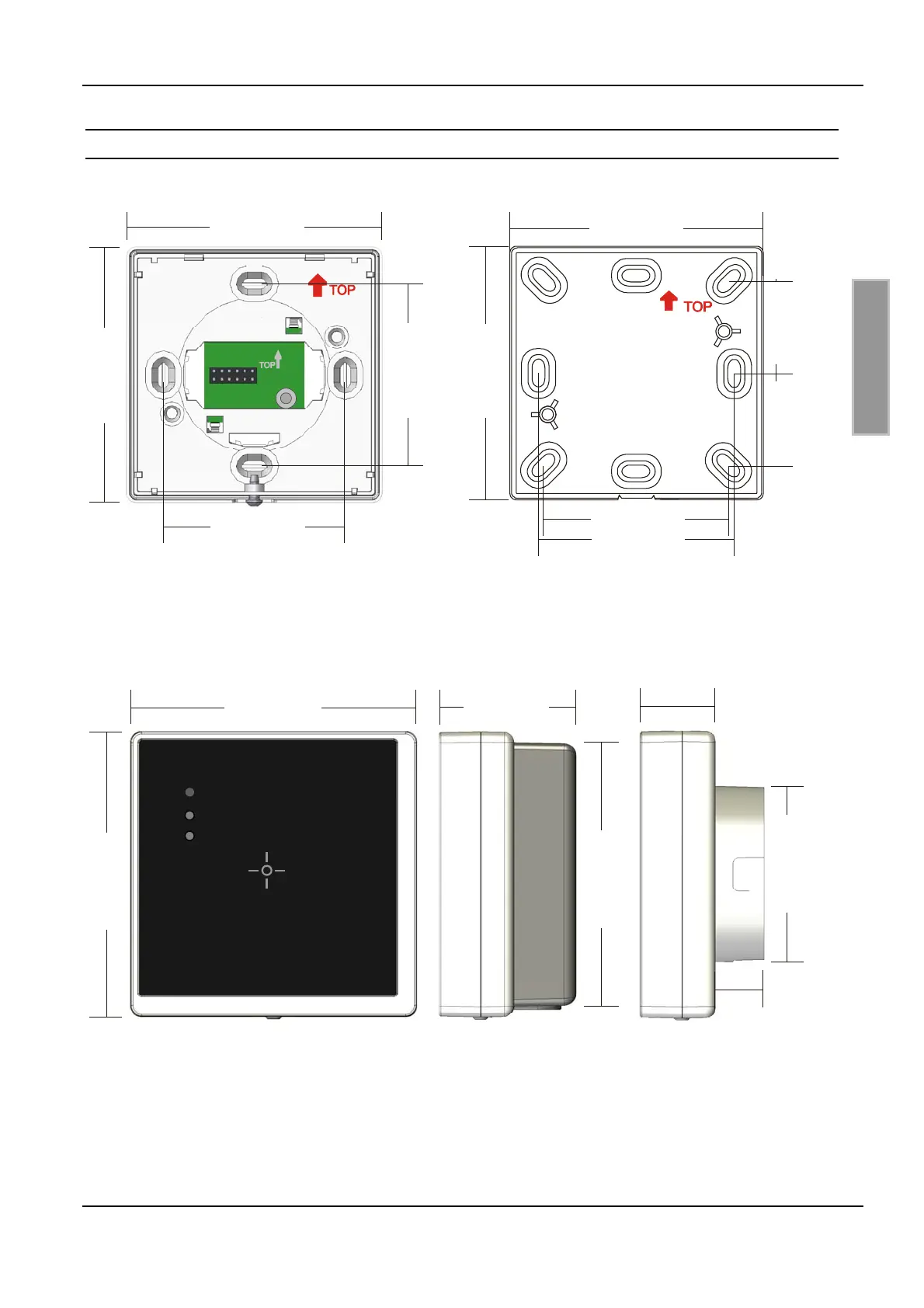

Fig. 11 Concealed casing
Fixing dimensions
Fig. 12 Surface adapter
dimensions
84,2 mm
84,2 mm
77,7 mm
40 mm
22 mm
51,5 mm
14,0 mm
Fig. 13 Housing dimensions
