4. Gimbal Balancing
Please balance the gimbal before shooting. Make sure the
camera and lens are ready for shooting, and the gimbal
is powered o󽗈 or in sleep mode before balancing. It is
recommended to hold up the camera 󽗉rst, then move the
slide arm, cross arm and vertical arm.
Tutorial Videos
4.1 Balancing the tilt axis
4.1.1 Balancing the vertical tilt

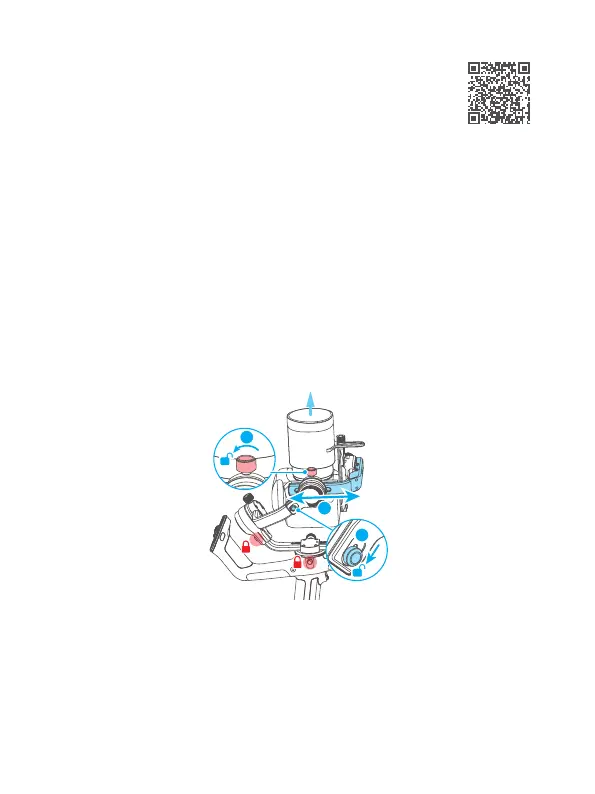

a. Unlock the tilt lock ① , and loosen the slide arm lock knob ② .
b. Rotate the tilt axis so that the camera lens is pointing upward. Check the direction
which the lens tilts to.
c. If the lens tilts to one side, then the camera is that side heavy, move the slide
arm ③ to the opposite direction, until the camera is steady pointing upward.
d. Tighten the slide arm lock knob ② while holding the camera.
A
B
1
3
2
4.1.2 Adjust depth for the tilt axis
a. Rotate the tilt axis so that the camera lens is pointing forward. Check the direction
which the lens tilts to.
b. If the lens tilts to one side, then the camera is that side heavy, unlock the quick
release plate safety lock ① and then move the quick release plate to the opposite
direction, until the camera is steady pointing forward.
