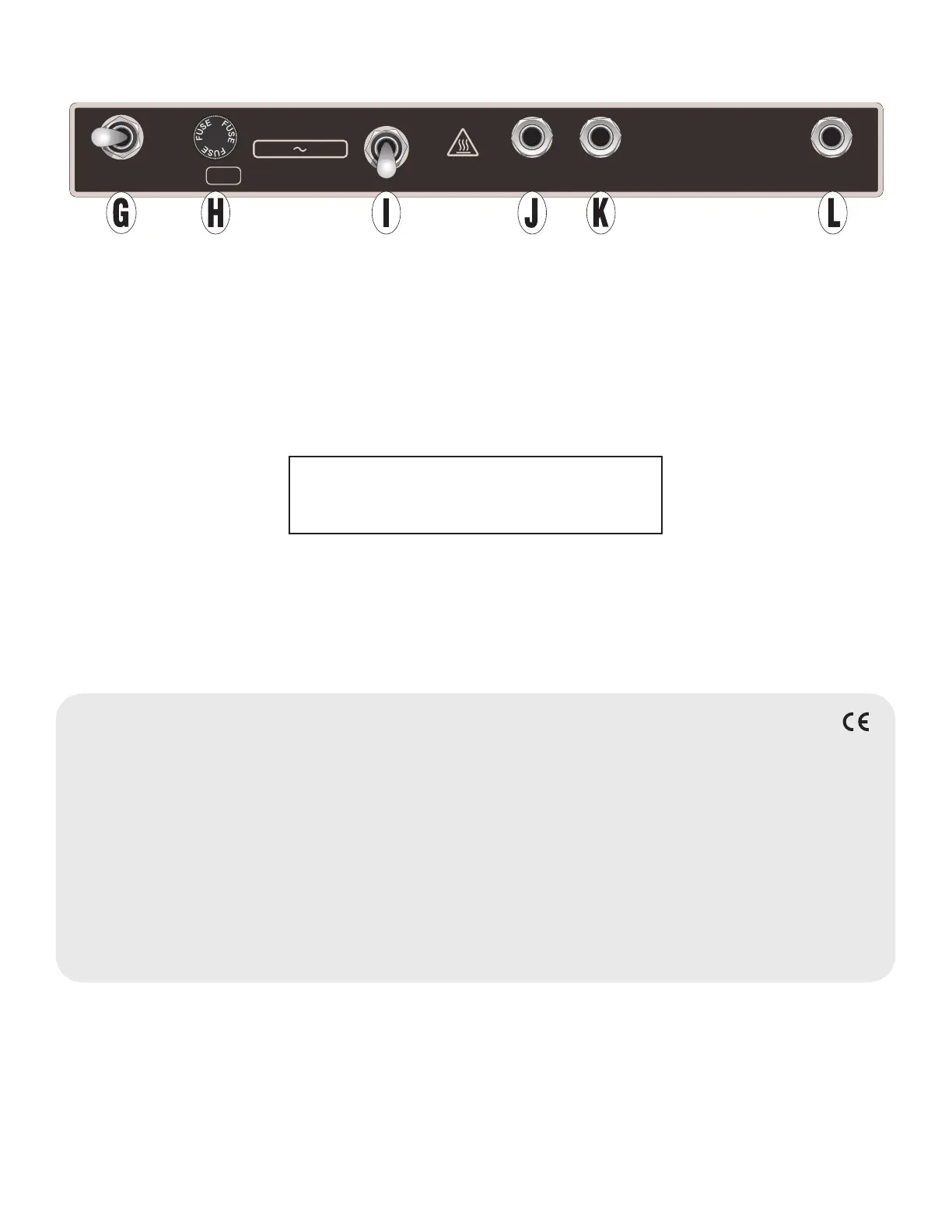

G. GROUND SWITCH: Note that this is a non-functional ground switch,
included here for the purpose of vintage-accurate appearance.
H. FUSE
:
Provides electrical overcurrent protection.
I. POWER SWITCH
: Turns amplier on and o.
J. SPEAKER
:
Jack for internal 8-ohm speaker. If connecting a
different speaker to this jack when this is the only jack in use,
speaker must have an 8-ohm impedance rating.
K. EXTERNAL SPEAKER
:
Allows use of external speaker cabinet
in addition to internal speaker—note that this jack does not
function when internal speaker jack (J) is disconnected. This
jack is wired in parallel with internal speaker jack (J) and
affects total impedance.
L. TREMOLO PEDAL
:
1/4” phone jack for connection of
included tremolo on/off footswitch (tremolo is enabled with
footswitch disconnected).
REAR PANEL
SPECIFICATIONS
TYPE PR 5469
POWER Requirements: 125 watts Output: 12 watts into 8Ω at 1kHz
INPUT IMPEDANCE 1MΩ (Input 1) 136kΩ (Input 2)
OUTPUT IMPEDANCE 8Ω
SPEAKER 12” Eminence (8Ω, PN 7714090000)
TUBES Two 6V6 power tubes (PN 5550113539) Two 12AX7 preamp tubes (PN 5550112391)
One 5Y3 rectifier tube (PN 5550114302 )
FUSE F2A L 250V (100V-120V models) F1.25A L 250V (220V-240V models)
FOOTSWITCH Single-button tremolo on/off (included, PN 7708216000)
ACCESSORIES Fitted cover (included, PN 7714077000)
DIMENSIONS AND WEIGHT Width: 18.9” (47.9 cm) Height: 16” (40.6 cm) Depth: 9.4” (23.8 cm) Weight: 33.25 lbs. (15 kg)
Product specifications subject to change without notice.
For questions and troubleshooting,
contact a Fender specialist at:
--- (U.S. toll free)
--- (International)
CAUTION
HOT SURFACES BELOW
GROUND
SPEAKER
EXT.
SPKR.
TREMOLO
PEDAL
ON
PARALLEL
SPEAKER
JACKS
12 WATTS
8Ω MIN
TOTAL
INPUT POWER
125W
120V 60Hz
