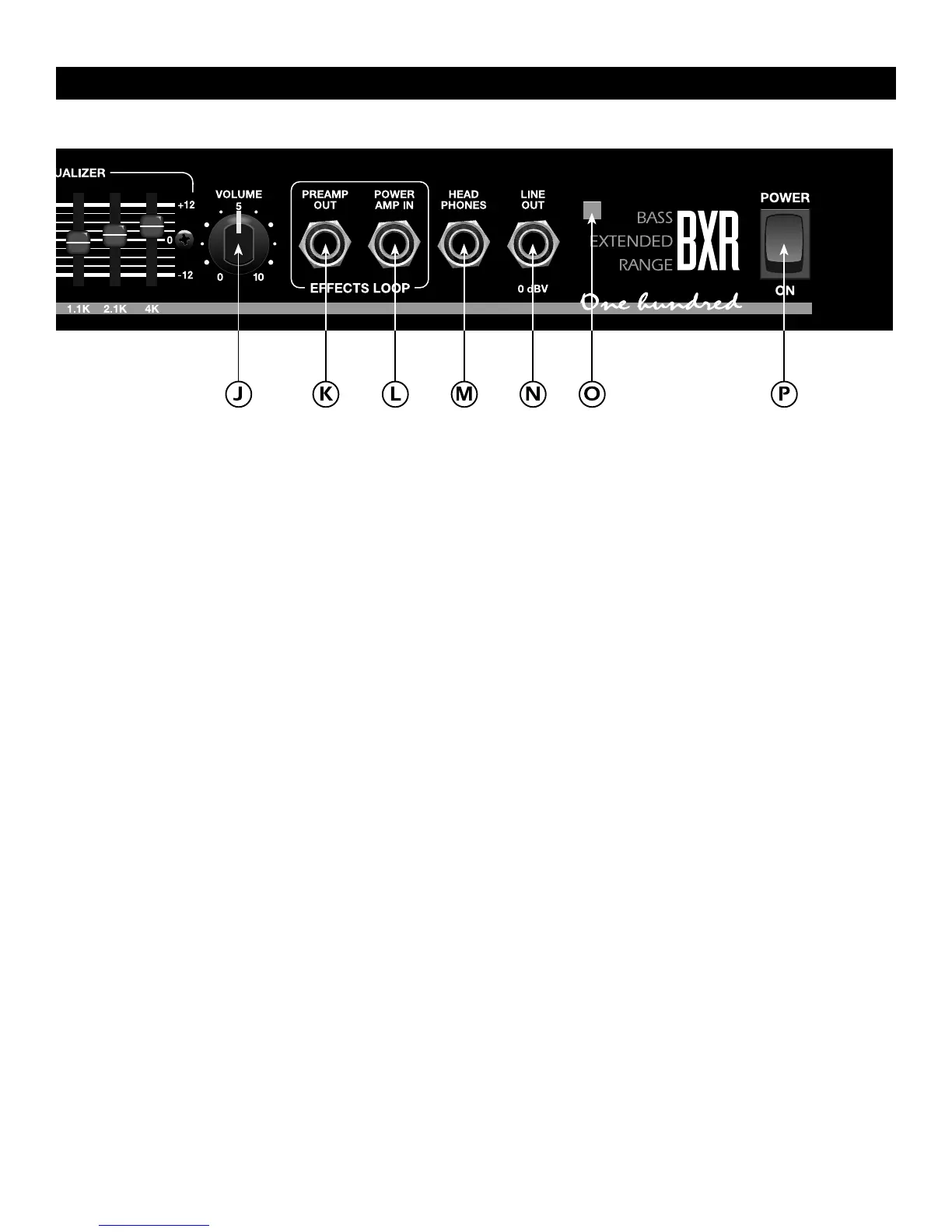

J. VOLUME control - adjusts the level of the signal coming out of
the pre-amplifier section. This control is used in conjunction
with the GAIN control to set the overall sound level of the
amplifier. In order to maximize headroom and minimize noise,
instruments with low- level pickups will require a high GAIN
and low VOLUME setting, while other instruments will require
a lower GAIN and higher VOLUME setting. It is recommended
that the VOLUME control be set as high as possible for
maximum DELTACOMP™ compressor range.
K. PREAMP OUT jack -This jack provides an unbalanced mono
output signal from the preamp. This output can be used with the
POWER AMP IN jack (item L) as a patch point for mono effects
devices. It can also be used to provide a signal to a recording
or sound reinforcement mixer. In addition, this output can be
used to drive another BXR 100 used as a slave amp. This is
done by connecting a standard guitar cord from the PREAMP
OUT jack of the master amplifier to the POWER AMP IN jack
(item L) of the slave.
L.. POWER AMP IN jack - This unbalanced input goes directly into
the power amp. It automatically disconnects the preamp when
used. This jack is useful when using the effects loop feature, or
when using the BXR 100 as a slave amp.
M. HEADPHONES output jack - This jack allows the use of stereo
headphones for private listening. When this jack is used, the
internal speaker is disconnected. WARNING: BE CAREFUL
WHEN USING HEADPHONES, AS EXCESSIVE VOLUME WILL
RUIN YOUR HEARING!
N. LINE OUT jack - This quasi-balanced output is derived from the
speaker, and is at line level, similar to that of the PREAMP OUT
jack (item K). Since the LINE OUT jack is post-power amp, it
provides a signal that is affected by the DELTACOMP™
adaptive compressor. The jack is wired TIP (+), RING (-), and
SLEEVE ground. If the LINE OUT jack is used to connect to a
balanced input, it will greatly reduce hum caused by a ground
loop (a difference in ground potential) between the BXR 100
and another piece of equipment.
0. POWER INDICATOR When this LED is illuminated, the BXR 100
is eceiving power.
P. POWER SWITCH - turns the BXR 100 ON or OFF.
