3

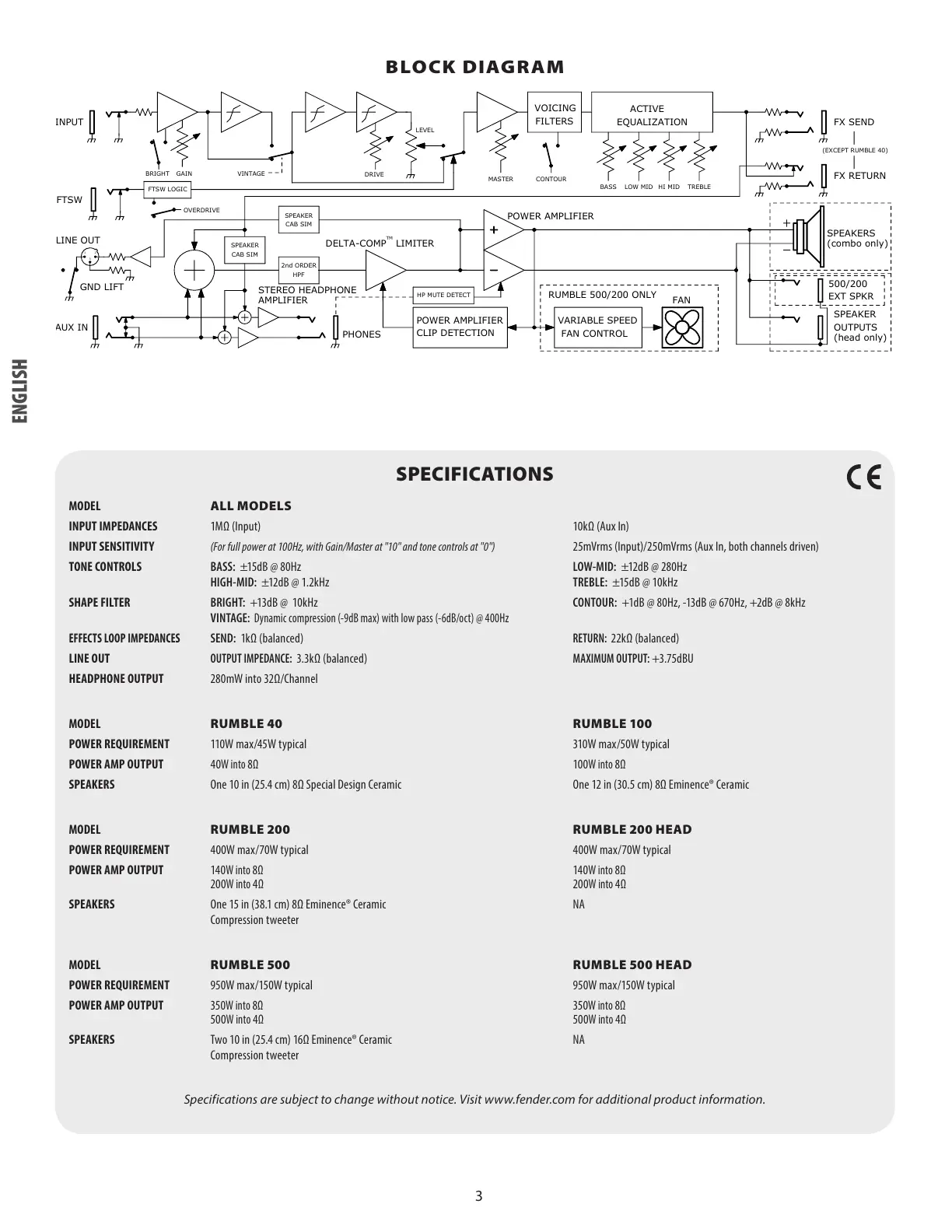

SPECIFICATIONS
MODEL ALL MODELS
INPUT IMPEDANCES 1MΩ (Input) 10kΩ (Aux In)
INPUT SENSITIVITY (For full power at 100Hz, with Gain/Master at "10" and tone controls at "0") 25mVrms (Input)/250mVrms (Aux In, both channels driven)
TONE CONTROLS BASS: ±15dB @ 80Hz LOW-MID: ±12dB @ 280Hz
HIGH-MID: ±12dB @ 1.2kHz TREBLE: ±15dB @ 10kHz
SHAPE FILTER BRIGHT: +13dB @ 10kHz CONTOUR: +1dB @ 80Hz, -13dB @ 670Hz, +2dB @ 8kHz
VINTAGE
: Dynamic compression (-9dB max) with low pass (-6dB/oct) @ 400Hz
EFFECTS LOOP IMPEDANCES
SEND: 1kΩ (balanced)
RETURN:
22kΩ (balanced)
LINE OUT
OUTPUT IMPEDANCE:
3.3kΩ (balanced)
MAXIMUM OUTPUT:
+3.75dBU
HEADPHONE OUTPUT 280mW into 32Ω/Channel
MODEL RUMBLE 40 RUMBLE 100
POWER REQUIREMENT 110W max/45W typical 310W max/50W typical
POWER AMP OUTPUT
40
W into
8
Ω
100
W into
8
Ω
SPEAKERS One 10 in (25.4 cm) 8Ω Special Design Ceramic One 12 in (30.5 cm) 8Ω Eminence® Ceramic
MODEL RUMBLE 200 RUMBLE 200 HEAD
POWER REQUIREMENT 400W max/70W typical 400W max/70W typical
POWER AMP OUTPUT
140
W into
8
Ω
140
W into
8
Ω
200
W into
4
Ω
200
W into
4
Ω
SPEAKERS One 15 in (38.1 cm) 8Ω Eminence® Ceramic NA
Compression tweeter
MODEL RUMBLE 500 RUMBLE 500 HEAD
POWER REQUIREMENT 950W max/150W typical 950W max/150W typical
POWER AMP OUTPUT
350
W into
8
Ω
350
W into
8
Ω
500
W into
4
Ω
500
W into
4
Ω
SPEAKERS Two 10 in (25.4 cm) 16Ω Eminence® Ceramic NA
Compression tweeter
Specifications are subject to change without notice. Visit www.fender.com for additional product information.
BLOCK DIAGRAM
