14.4 Troubleshooting
Fault
Two shutdown conditions resettable by the user can occur :
A Burner shutdown signalled by the special indicator. Refer to the burner manual.
B Cutting in of the safety thermostat, which occurs when the boiler temperature
reaches a value beyond which a dangerous condition may be created. To re-
store operation, unscrew cap 3 of fig. 21 and press the reset button below.
If the problem persists, request the assistance of Qualified Personnel or the After-Sales
Centre.
In case of a fault and/or poor operation, deactivate the unit, do not try to fix the problem
or directly carry out any operation. Contact authorised and professionally qualified per-
sonnel.
15. TECHNICAL DATA AND CHARACTERISTICS
15.1 Dimensions, connections and main components

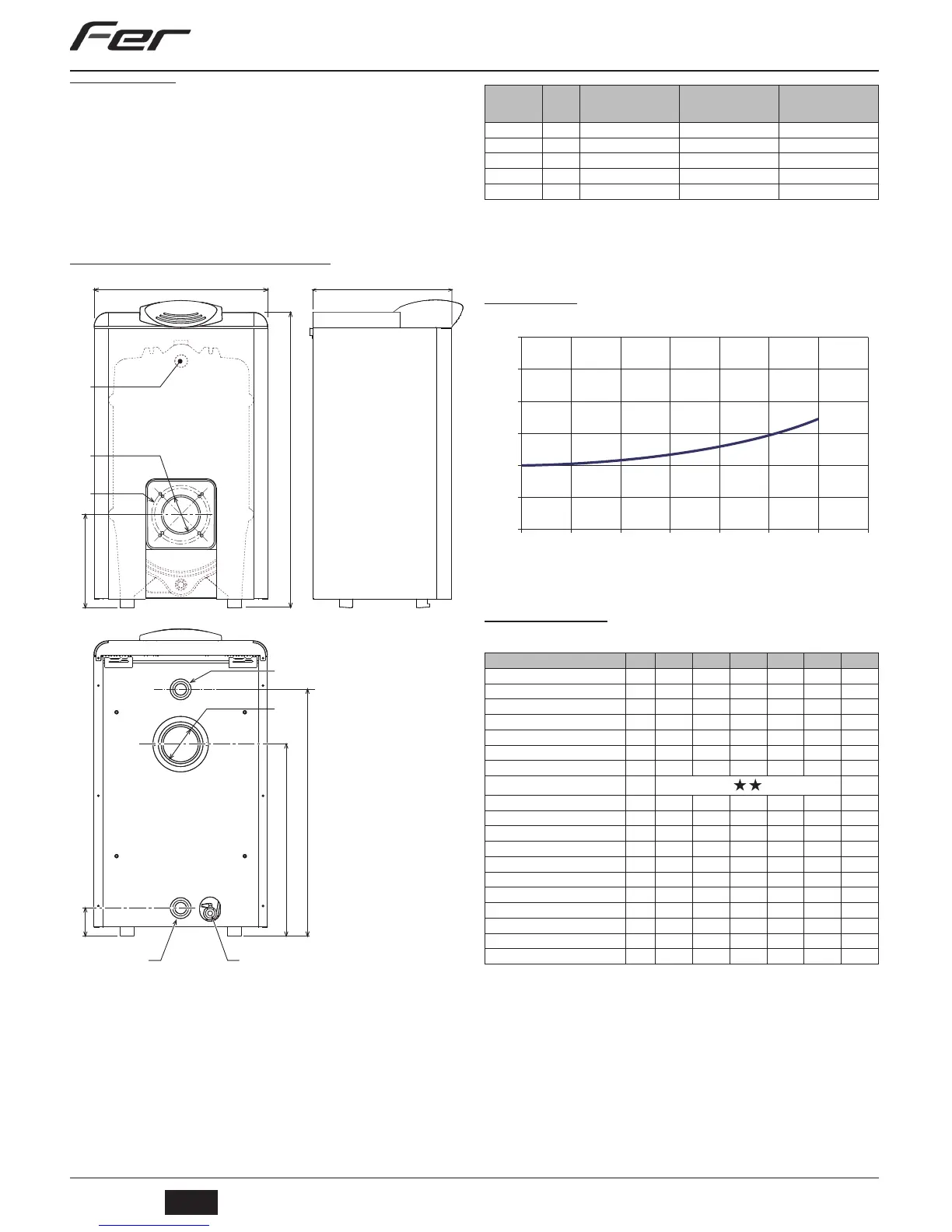

fig. 25 - Dimensions, connections and main components
10 System delivery - 1” 1/2”
11 System return - 1” 1/2”
275 System drain - 1/2”
a4 Flue connection
a5 Burner hole
a6 Burner fixing
34 Safety and heating temperature bulb
15.2 Pressure loss
Pressure loss water side
fig. 26 - Pressure loss
A mbar
B Flowrate l/h
15.3 Technical data table
268
850
500
A
10
a4
11
275
a5
a6
34
711
80
553
Model
A
mm
a4
flue connection
Ø mm
a5
burner hole
Ø mm
a6
burner fixing
Ø mm
G3G 32
400 120÷130 105 150
G3G 47 500 120÷130 105 150
G3G 63 600 120÷130 105 150
G3G 80 700 120÷130 105 150
G3G 98 830 120÷130 125 170
Model G3G 32 G3G 47 G3G 63 G3G 80 G3G 98
Number of elements no.34567
Max. heating capacity kW 34.9 51.6 69.0 87.8 106.5 (Q)
Min. heating capacity kW 17.0 34.3 45.8 59.0 75 (Q)
Max. heat output in heating kW 32 47 63 80 98 (P)
Min. heat output in heating kW 16 32 43 55 70 (P)
Efficiency Pmax (80-60°C) % 91.6 91.5 91.5 91.8 92.1
Efficiency 30% % 94.1 93.9 93.7 93.4 93.3
Efficiency class Directive 92/42 EEC
Max. working pressure in heating bar66666(PMS)
Min. working pressure in heating bar 0.8 0.8 0.8 0.8 0.8
Max. heating temperature °C 95 95 95 95 95 (tmax)
Heating water content L 12.5 17 21.5 26 31
Protection rating IP X0D X0D X0D X0D X0D
Power supply voltage V/Hz 230/50 230/50 230/50 230/50 230/50
Electrical power input W 5 5 5 5 5
Empty weight kg 133 175 216 259 301
Combustion chamber length mm 365 465 565 665 765
Combustion chamber diameter mm 326 326 326 326 326
Pressure loss on fume side mbar 0.05 0.2 0.3 0.5 0.6
0
10
20
30
40
50
60
2000 2500 3000 3500 4000 4500 5000 5500
B
A
