Pag. 30

Technical

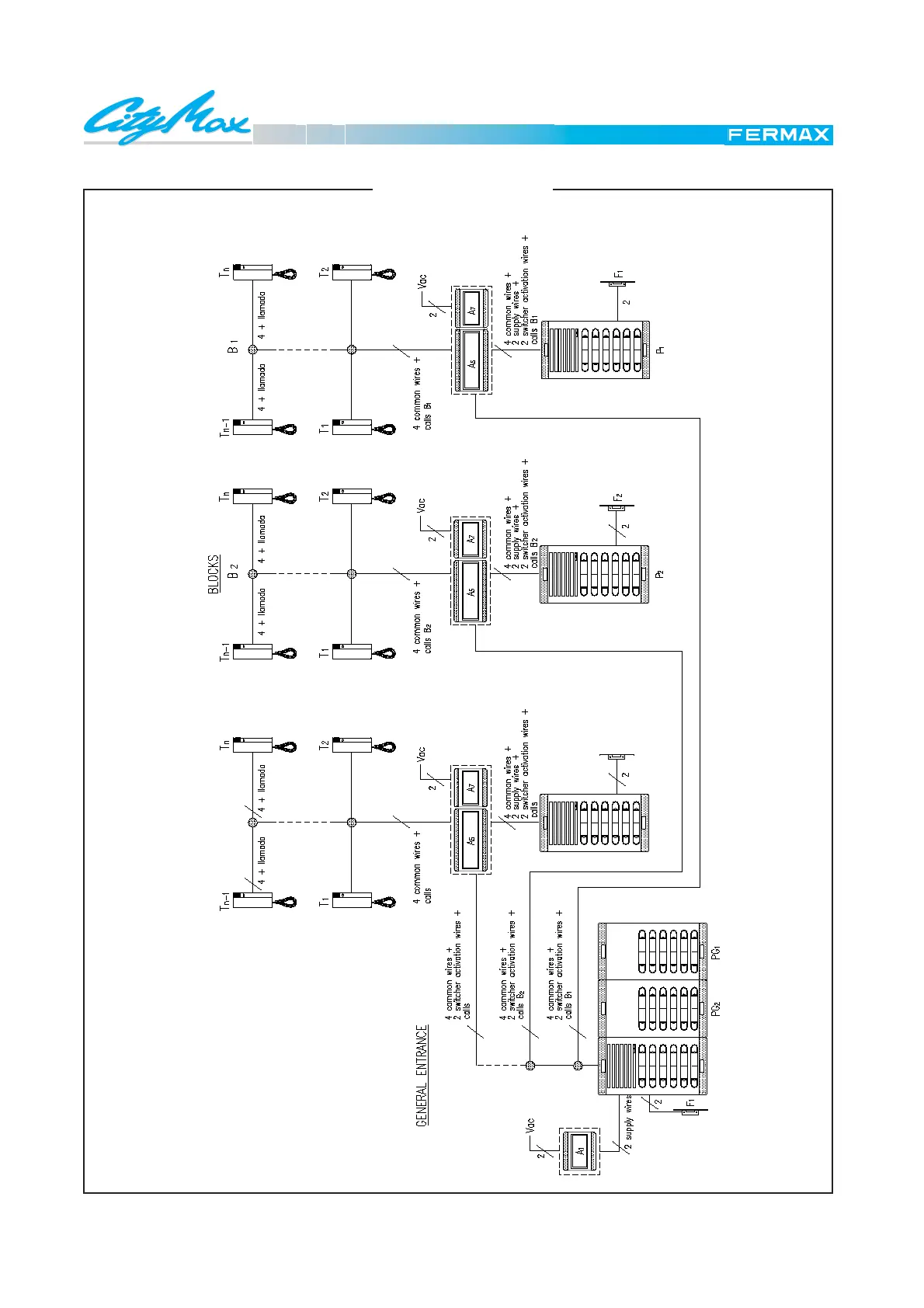

SCHEMATIC DIAGRAM

E 1.6 DOOR PHONE SYSTEM

CONDOMINIUM WITH SEVERAL BLOCKS

B 3

PG3

Table of Contents1
General Information about the Door Phone and Video Door Phone Systems2
Components of the Door Phone and Video Door Phone Systems3
Denomination of the City Line Panels8
Citymax Modular Panels11
Practical Advice on the Installation12
Understanding the Diagrams17
Starting up the Installation18
E1.1 Basic Installation19
E1.2 Installation with Privacy Telephones 5+N21
E1.3 Installation with Privacy Telephones 4+N23
E1.4 Building with Two Entrances25
E1.5 Building with Three Entrances27
E1.6 Condominium with Several Blocks29
E1.7 City Line Guard Unit35
E1.8 Citycom III. Basic Version37
E1.9 Citycom III. Featuring Retention Light39
VIDEO DOOR PHONE WIRING DIAGRAMS E2.1 Basic Installation41
E2.2 Installation with Privacy Monitors 5+N43
E2.3 Building with Two Entrances45
E2.4 Buildings with Three Entrances49
E2.5 Condominium with Several Blocks53
Complementary Installations59
Connection of a Call Tone Extension59
Activation of Additional Lights or Bells59
Enlarging the Installation with Additional Monitors And/Or Telephones60
Activating the "Stair Light61
Seeing the Monitor Image and Hearing the Sound with a Television Set61
Opening the Hall Door from Inside62
Opening a Second Door62
Opening a Common Door to Two Entrances63
