Pag. 61
Technical
Activating the "stair light"
USE
For activating the stair light timer from the monitor.
It can also be used to activate another light from the monitor (for example to increase the amount of light in the place
where the telecamera is installed).
MATERIAL NEEDED
Stair light relay Ref. 2013.
Seeing the monitor image and hearing the sound with a television set
USE
To be able to see the image captured by the telecamera (and hear the sound) on the television screen.
MATERIAL NEEDED
A cable with a male Euroconnector to which a cable must be soldered as shown in the diagram below to be connected
to the monitor. The television must have a Euroconnector socket.
OBSERVATIONS
When someone calls, select the AV channel to be able to see and hear the visitor.
Use the monitor if you want to speak with the caller or open the door.

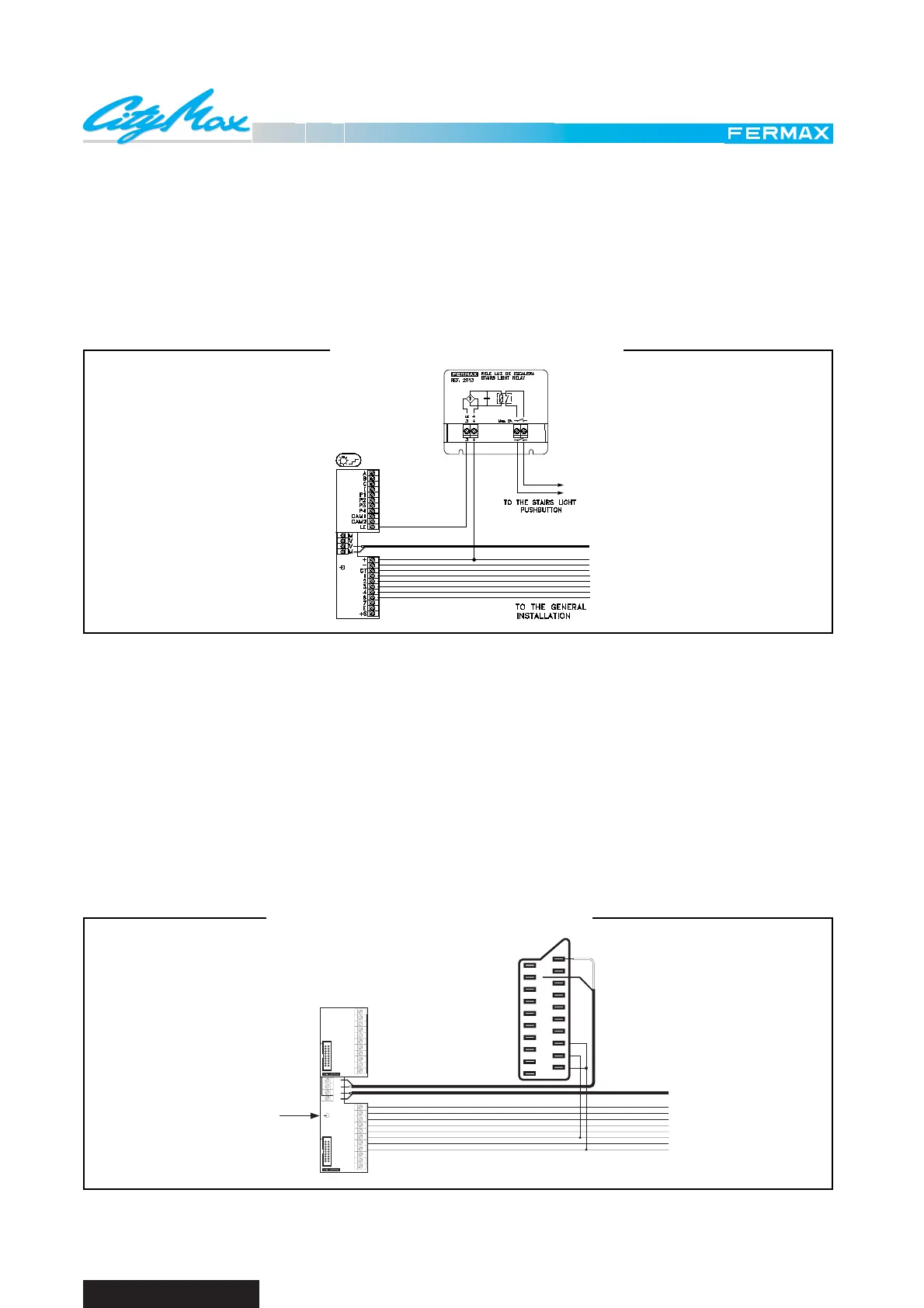

ACTIVATING THE STAIR LIGHT TIMER
CONNECTING THE MONITOR TO A T.V. SET
COMPLEMENTARY INSTALLATIONS
FROM THE GENERAL
INSTALLATION
7
+S
E
CAM1
CAM2
V
M
M
V
1
4
6
2
3
-
CT
+
LE
P2
P4
P3
P1
C
A
B
I
CN1
CN1
17
1
3
5
7
9
11
13
15
19
20
18
16
14
12
10
8
6
4
2
EUROCONNECTOR
TV. OR VIDEO
CUT
RESISTOR
