Fermax 8045 User Manual

Pag. 55
Technical

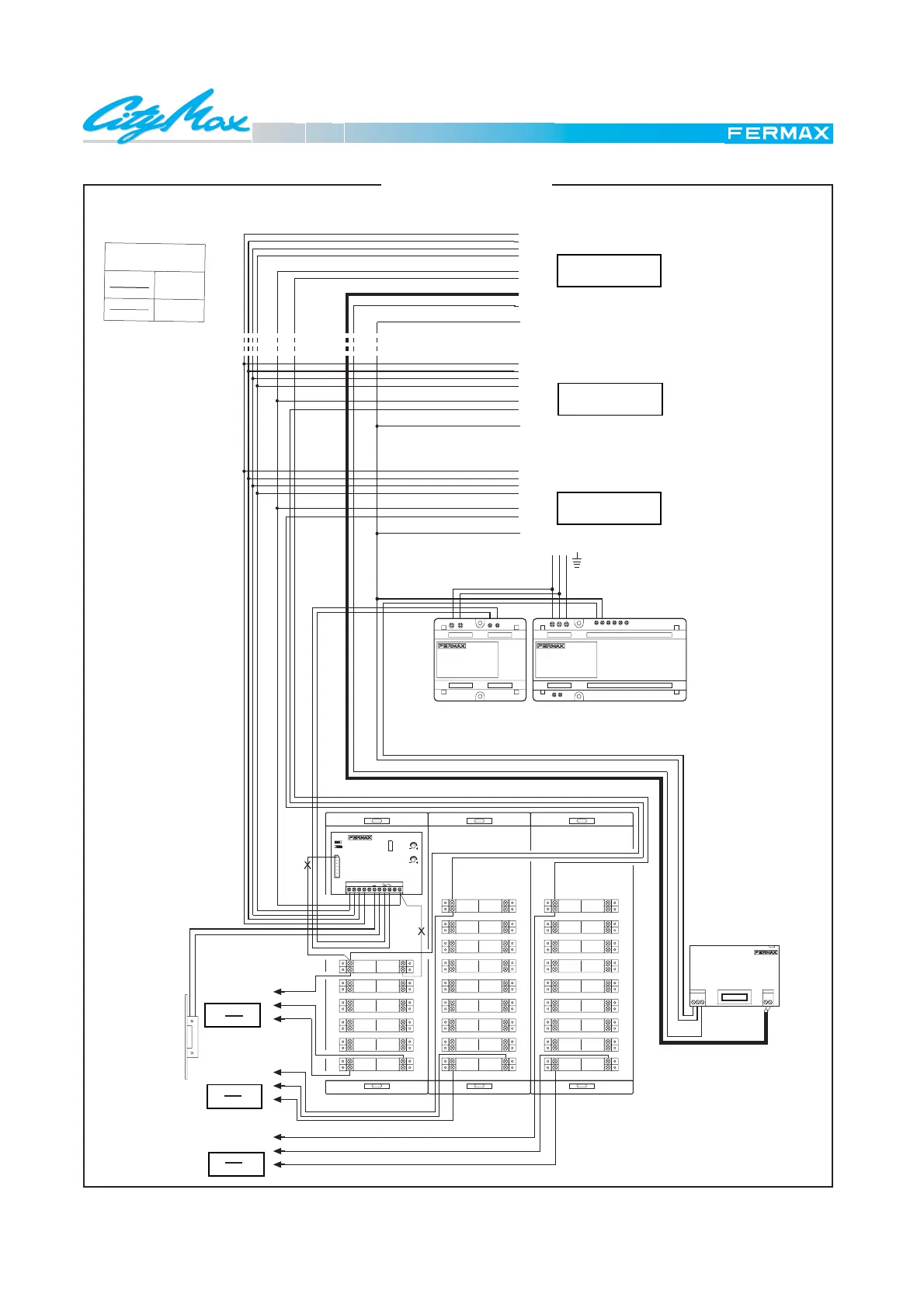

WIRING DIAGRAM
GENERAL ENTRANCE
E 2.5 VIDEO PHONE SYSTEM
CONDOMINIUM WITH SEVERAL BLOCKS
F
1
1
A
1
PG
2
PG
3
PG
3
A
CG
6
3
2
1
J
H
H
CT
-
COAX
H
J
1
6
3
2
1
1
2
2
-
1
3
J
2
3
6
-
3
SEC. 12VacPRIM PRIM SEC. 18Vdc220V
Vac
FE
-+-+-+
21
n-1n
21
n-1n
21
n-1n
CONECTOR TEST
DE PRUEBA
-+CT VM
CN1
EXT.
INT.
3
PT1
PT2
1
2
FU
1
3
2
6
Ab
Cp2
Ab
Cp1
Tc
TO THE MIDDLE
BLOCK DIAGRAM
TO THE LAST BLOCK
DIAGRAM
TO THE FIRST BLOCK
DIAGRAM
CALLS
block 2
CALLS
block 3
(*) Cut the common pushbutton wire (according to the panel model).
SECTION TABLE
Distances
up to 300 meters
0.5 mm
1 mm
2
2
CUT
(*)
CUT
(*)
CALLS
block 1
