INSTALLATION
MONITOR INSTALLATION

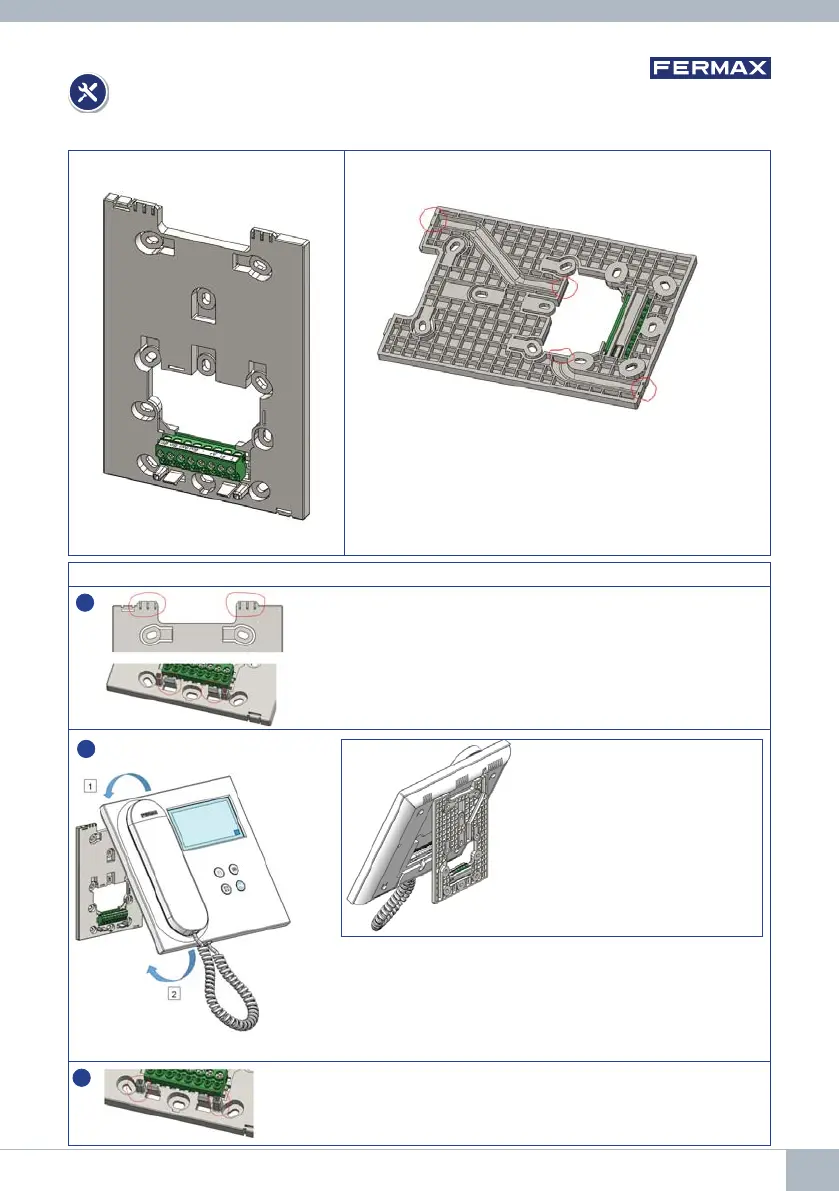

Mounting the monitor
Connector
For non-embedded installations, the connector has two
channels to guide the cables to the connection strip from
the fl oor or ceiling. Two of the marked partitions must
be removed with cutting pliers to create access for the
cables from the bottom or top of the connector.
Surface wiring
The monitor is to be hung from the two upper hooks on the
connector and held in place by two clips in the lower area.
1
3
To position the monitor and keep it fi rmly attached, the connector has
two guides on either side of the clips.
The following diagram shows
the monitor as it is being hung
onto the connector, before it
is tilted down to complete the
assembly.
2
Hold the monitor in front of the connector at an angle between
15 and 30 degrees and hang it on the aforementioned hooks. Tilt
the monitor down over the connector and exert force towards the
wall on both sides of the lower end until you hear or notice that
the lower clips have closed.
DUOX VEO MONITOR 5
