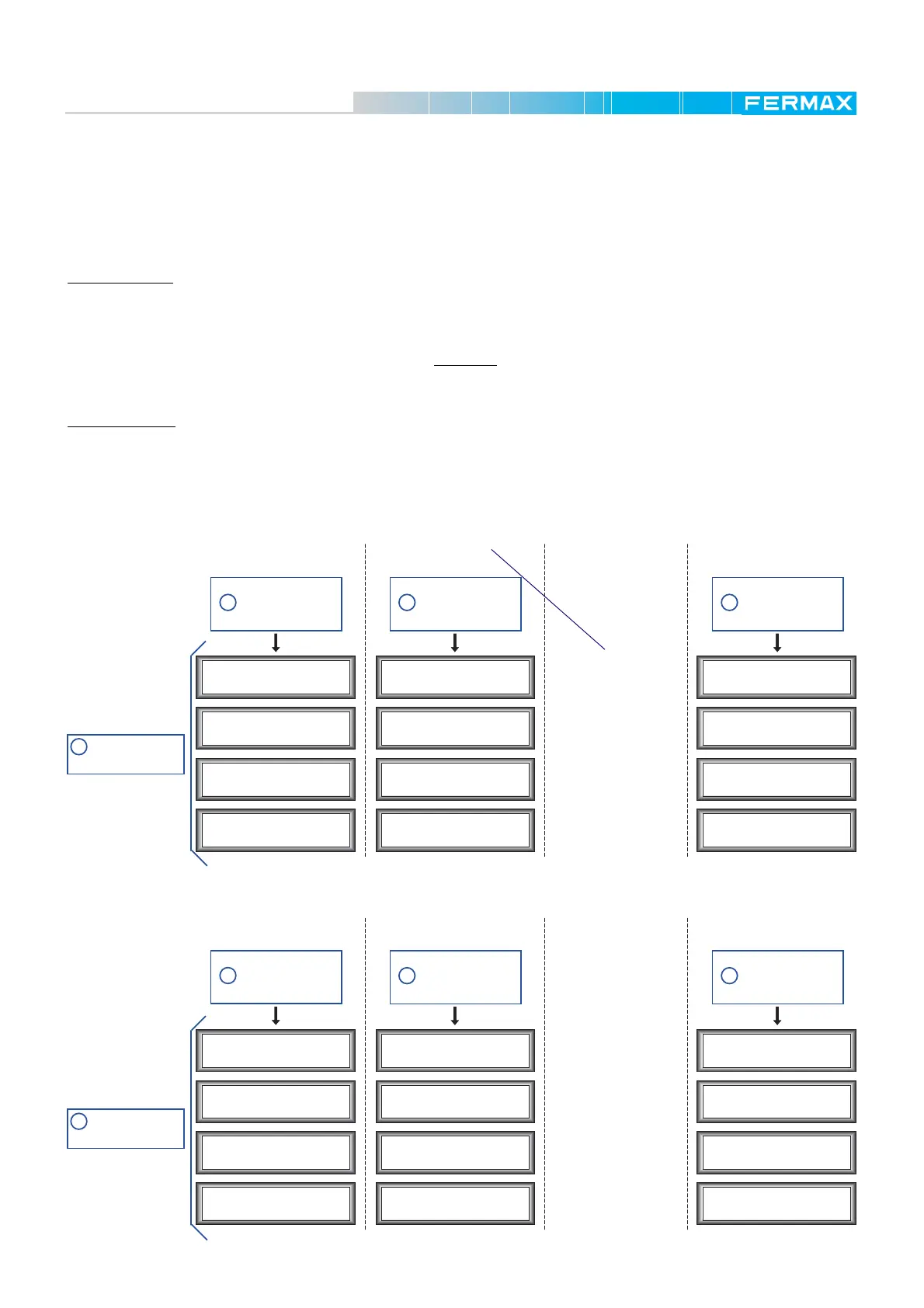

EXAMPLE 1.
Facility with 16 blocks (each block with its ADS panel).
* 10 Blocks with 45 apartments each, (Block 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10).
* 6 Blocks with 30 apartments each, (Block 11, 12, 13, 14, 15 and 16).
Observations:
- We want all the apartment numbers in each block to start from number 1.
- We want to program the house terminals (monitors/telephones) from the Interior Block ADS panel. See
"Programming house terminals from INTERIOR BLOCK.".
- Due to the facility features, all the blocks are
TYPE C --> B B i i / B B f f, (Medium-sized Blocks , 99
apartments per block and up to 99 blocks).
Programming:
1. Follow the "Enter Programming mode" steps.
2. Follow the steps defined in "ADS Decoder Programming (depending on Type)", (there is one decoder per
block).
MDS-ADS SYSTEM PROGRAMMING
EXAMPLES:
Enter
STEPS
1
Programming mode
Enter
STEPS
1
Programming mode
Enter
STEPS
1
Programming mode
Audio-4:
Telephone 1: 1 1 0 1
Audio-4:
Telephone 2: 1 1 3 0
Audio-4:
Telefono 3: 0 0 0 0
Audio-4:
Telefono 4: F F F F
Block 11
(30 Apartments)
Audio-4:
Telephone 1: 1 2 0 1
Audio-4:
Telephone 2: 1 2 3 0
Audio-4:
Telephone 3: 0 0 0 0
Audio-4:
Telephone 4: F F F F
Block 12
(30 Apartments)
Audio-4:
Telephone 1: 1 6 0 1
Audio-4:
Telephone 2: 1 6 3 0
Audio-4:
Telephone 3: 0 0 0 0
Audio-4:
Telephone 4: F F F F
Block 16
(30 Apartments)
...................................
ADS Decoder
2
Programming
Blocks 13, 14 and 15
(will be programmed in the same way)
Enter
STEPS
1
Programming mode
Enter
STEPS
1
Programming mode
Enter
STEPS
1
Programming mode
Audio-4:
Telephone 1: 0 1 0 1
Audio-4:
Telephone 3: 0 0 0 0
Audio-4:
Telephone 4: F F F F
Block 1
(45 Apartments)
Audio-4:
Telephone 1: 0 2 0 1
Audio-4:
Telephone 2: 0 2 4 5
Audio-4:
Telephone 3: 0 0 0 0
Audio-4:
Telephone 4: F F F F
Block 2
(45 Apartments)
Audio-4:
Telephone 1: 1 0 0 1
Audio-4:
Telephone 2: 1 0 4 5
Audio-4:
Telephone 3: 0 0 0 0
Audio-4:
Telephone 4: F F F F
Block 10
(45 Apartments)
...................................
Audio-4:
Telephone 2: 0 1 4 5
ADS Decoder
2
Programming
Blocks 3, 4, 5, 6, 7, 8, 9
(will be programmed in the same way)
Initial address
02: Block nº
01: Initial house nº.
Final address
02: Block nº.
45: Final house nº.
