Fermax VEO DUOX User Manual

2 DUOX VEO MONITOR

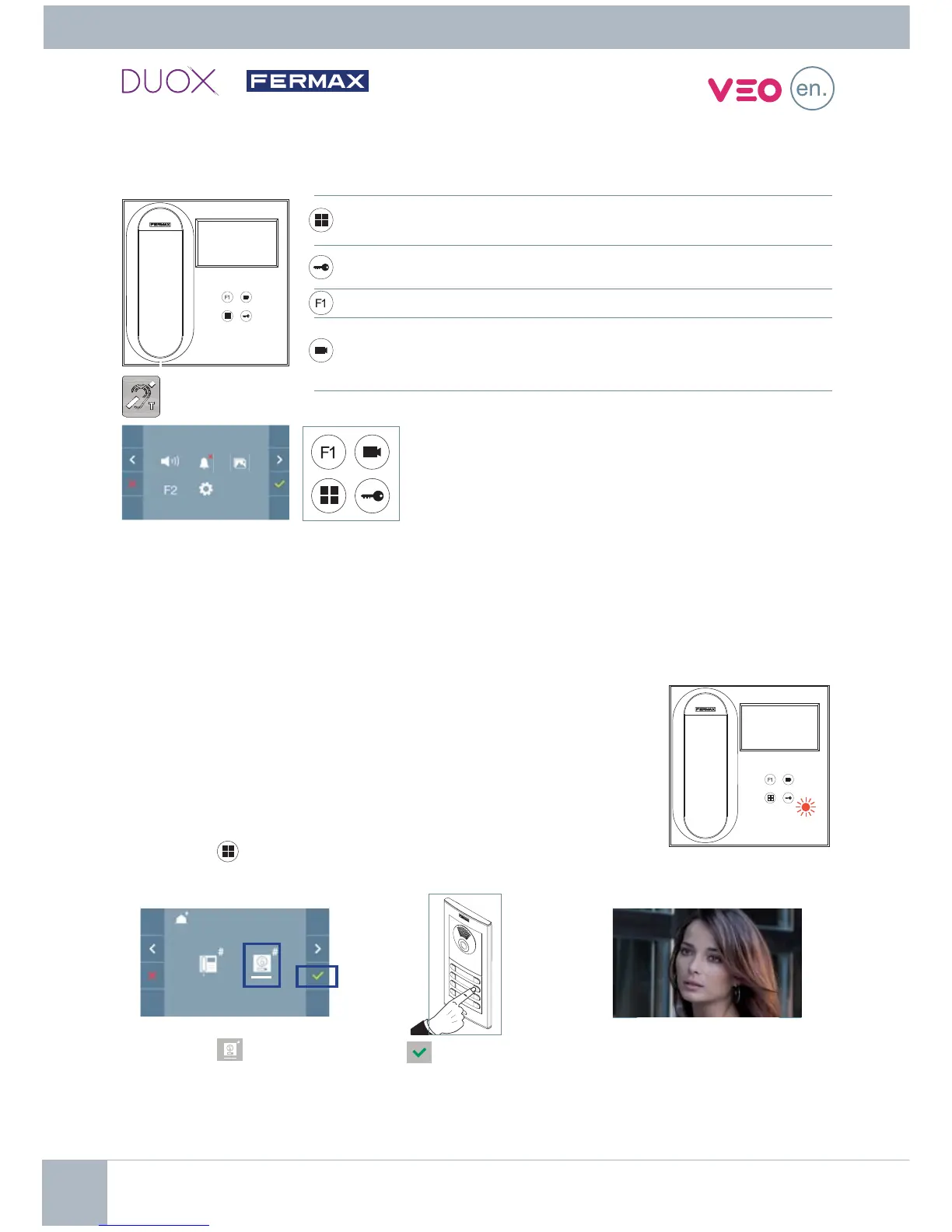

START GUIDE FOR MONITOR VEO DUOX
CONTROL BUTTONS
CONFIGURING AS MASTER PANEL
HOW TO PROGRAM THE VEO MONITOR
Digital menu for internal parameter settings and confi guration. (When
the monitor has already been programmed)
In conversation, press to open the door.
In standby, call to guard unit (if applicable).
Auxiliary function, (contact your installer).
In standby, press and it displays the option of auto-starting with
different panels. By sequentially pressing Panel 0, Panel 1, General
Panel, (depending on the available panels).
VEO monitor incorporates an OSD menu that is managed
via the monitor´s push buttons to access the terminals´user
and programming functions.
The icons displayed are managed with the corresponding
buttons located on the monitor.
Press the SW1 button 3 consecutive times quickly. After 2 seconds, a confi rmation tone is heard, and
the master panel is activated. Once having completed the monitor´s programming, we recommend
deactivate the MASTER panel by pressing the SW1 button 3 consecutive times.
Monitor powered for the fi rst time.
The red led blinking rapidly indicates that the monitor has not been
programmed. The fi xed red led indicates that the monitor has not been
programmed.
1. INSTALL
Press the button to access the "programming menu."
2. ENTER PROGRAMMING MENU
Select the
icon and confi rm with , (you hear a beep in the monitor).
Enter the calling code for this monitor from the panel (calling code for this monitor). A different
call tone sounds, confi rming the monitor´s programming. After a few seconds the monitor returns
to standby.
PROGRAMMING MENU
PROGRAMMING FROM THE PANEL
Code 970044 V03_17
Inductive loop
label (depending
on the model)

Fermax VEO DUOX Specifications

General

Surface Mount	Yes
Housing	ABS plastic
Display	4.3 inch color TFT screen
Resolution	480 x 272 pixels
Audio	Duplex communication
Installation	Surface
Technology	DUOX
Type	Video
Connectivity	2 wires
