2 DUOX VEO XS MONITOR
START GUIDE FOR MONITOR VEO XS DUOX

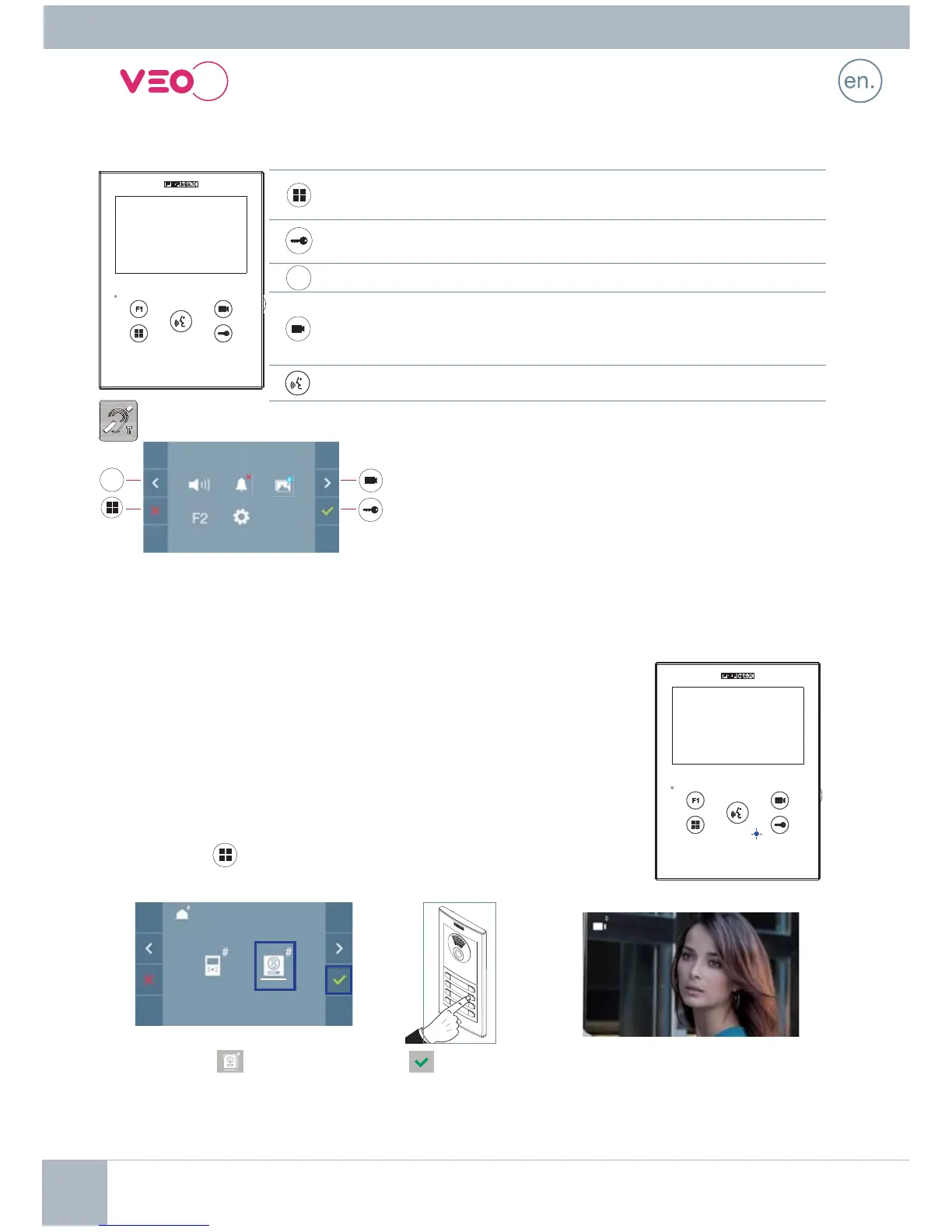

CONTROL BUTTONS
CONFIGURING AS MASTER PANEL
HOW TO PROGRAM VEO XS MONITOR
Press the SW1 button 3 consecutive times quickly. After 2 seconds, a confi rmation tone is heard,
and the master panel is activated. Once having completed the monitors’ programming, we
recommend deactivate the MASTER panel by pressing the SW1 button 3 consecutive times.
Monitor powered for the fi rst time.
The blue led blinking slowly indicates that the monitor has not been
programmed.
1. INSTALL
Press the
button to access the «programming menu».
2. ENTER PROGRAMMING MENU
Select the
icon and confi rm with
, (you hear a beep in the monitor).
Enter the calling code for this monitor from the panel (calling code for this monitor). A different
call tone sounds, confi rming the monitor´s programming. After a few seconds the monitor
returns to standby.
PROGRAMMING MENU
PROGRAMMING FROM THE PANEL
Digital menu for internal parameter settings and confi guration.
(When the monitor has already been programmed)
In conversation, press to open the door.
In standby, call to guard unit (if applicable).
Auxiliary function, (contact your installer).
In standby, press and it displays the option of auto-starting with
different panels. By sequentially pressing Panel 0, Panel 1, General
Panel, (depending on the available panels).
Audio activation and hang-up (hands-free functions).
VEO XS monitor incorporates an OSD menu that is managed
via the monitor´s push buttons to access the terminals´user
and programming functions. The icons displayed are
managed with the corresponding buttons located on the
monitor.
F1
F1
Inductive loop label
(depending on the model)
Cod. 970042 V03_17
