KIT EXPANSIONS

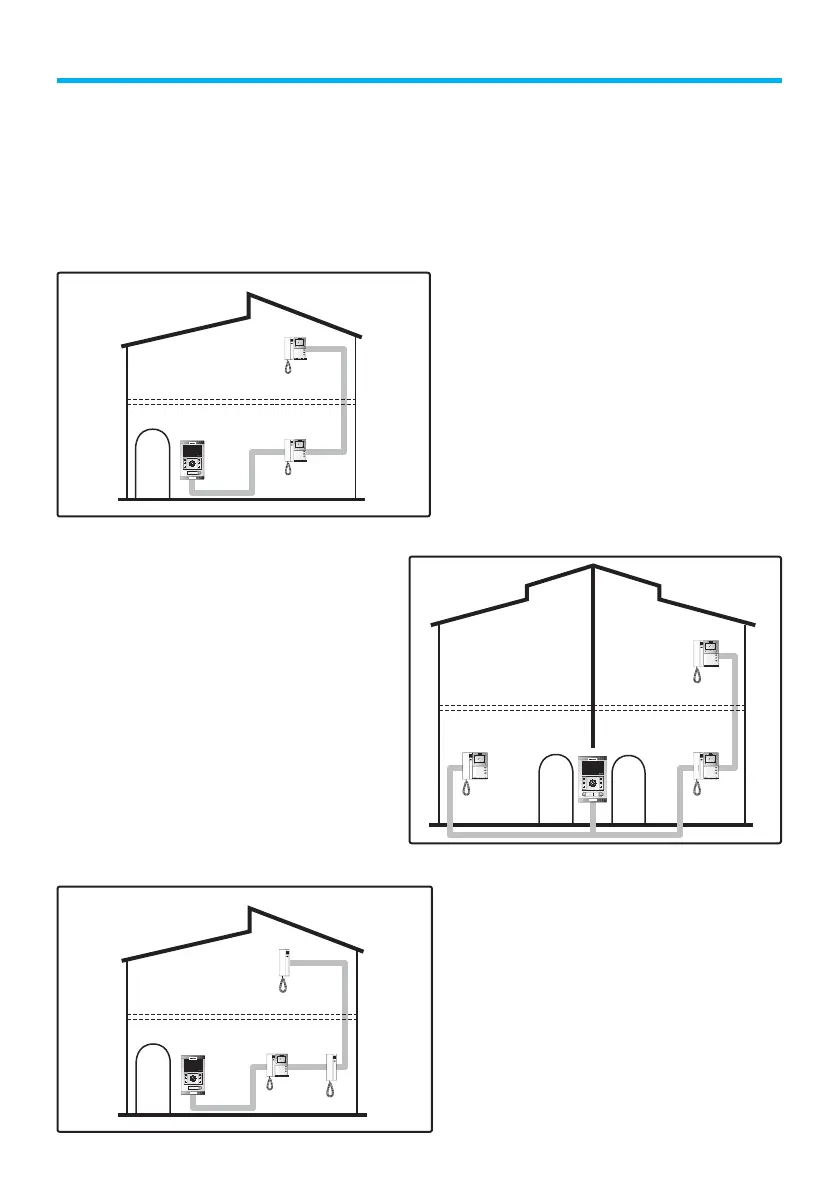

The FERMAX VIDEO DIGITAL COLOR KIT can be expanded with additional
color monitors (REF.6051) or B/W ones (REF.6070) or telephones (REF.2451)
in the same apartment following the connections shown in the next page.
It is also possible to install an additional Outdoor Panel (see wiring details
on page 39) or an auxiliary camera.
Another extension example for
the DIGITAL KIT would be to install
aditional telephones in different
areas of the apartment (kitchen or
bedrooms), allowing to use the
talk-listen and door control functions
within the buiding (see backpage for
wiring detail).
1
2
HIGH RESOLUTION
FLAT MONITOR
1
2
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
2
1
1
2
HIGH RESOLUTION
FLAT MONITOR
The DIGITAL KIT 2/L can be also
improved by adding terminals in one
of the apartments without affecting
a neighbour's Monitor (see
backpage for details).
1
2
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
1
2
HIGH RESOLUTION
FLAT MONITOR
One possibilty is to install an
additional monitor in another area of
the apartment so you can use the
system without going to the main
Monitor (see backpage for wiring
detail).
