Fermax VIDEO DIGITAL COLOR KIT User Manual

Pag 28
3.Once the wires are connected, plug in
the connector and place the Monitor as
shown above: 1 - 2 - 3 .
90º
F
L
A
T
M
O
N
I
T
O
R
H
I
G
H
R
E
S
O
L
U
T
I
O
N
2
1
F
L
A
T
M
O
N
I
T
O
R
H
I
G
H
R
E
S
O
L
U
T
I
O
N
2
1
2
1
3
4.To unhook the Monitor, insert the screw-
driver in the notch , turn it a few degrees
and slide up the Monitor.
Once the equipment is fully installed, the Monitor will need to be programmed
in order to assign it a call pushbutton. Follow the set up sequence shown in
page 32.
90º
1
2
3
1.60m
FROM THE
FLOOR

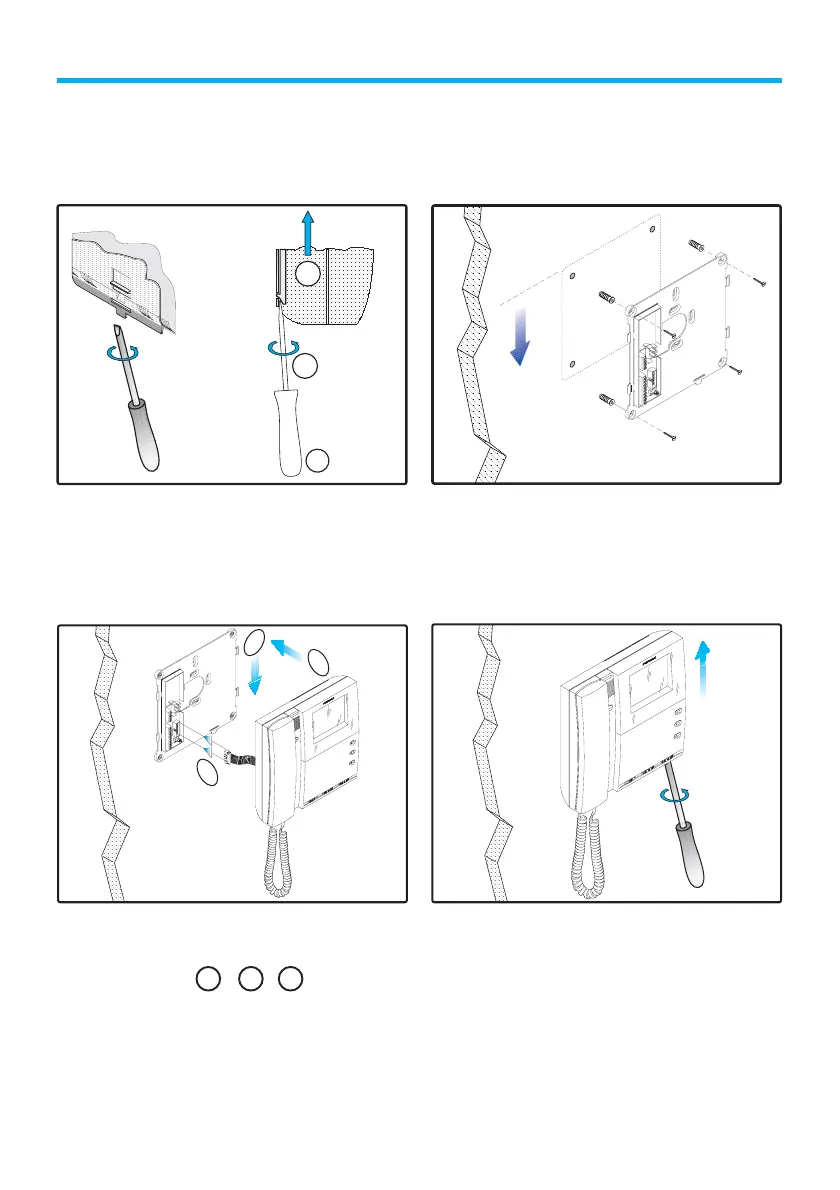

1.Use a plain screw-driver to separate the
base from the Monitor. Put it in, rotate
and slide the Monitor up.
2.Install the Monitor on a hard and flat
surface. Mark and drill the wall at the
holes in the base.
MONITOR INSTALLATION
The CityMax monitors allow a quick and easy installation, without neccesity
of doing any kind of building-work. Do not remove the screen protection film
until the Monitor is completely installed.
