Ferris FW35 Series User Manual

Not for
Reproduction
3
Instrument Control Panel: Models Equipped Briggs &
Stratton EFI Engine
Briggs & Stratton EFI Engines are available on models with
either handle bar style.
4

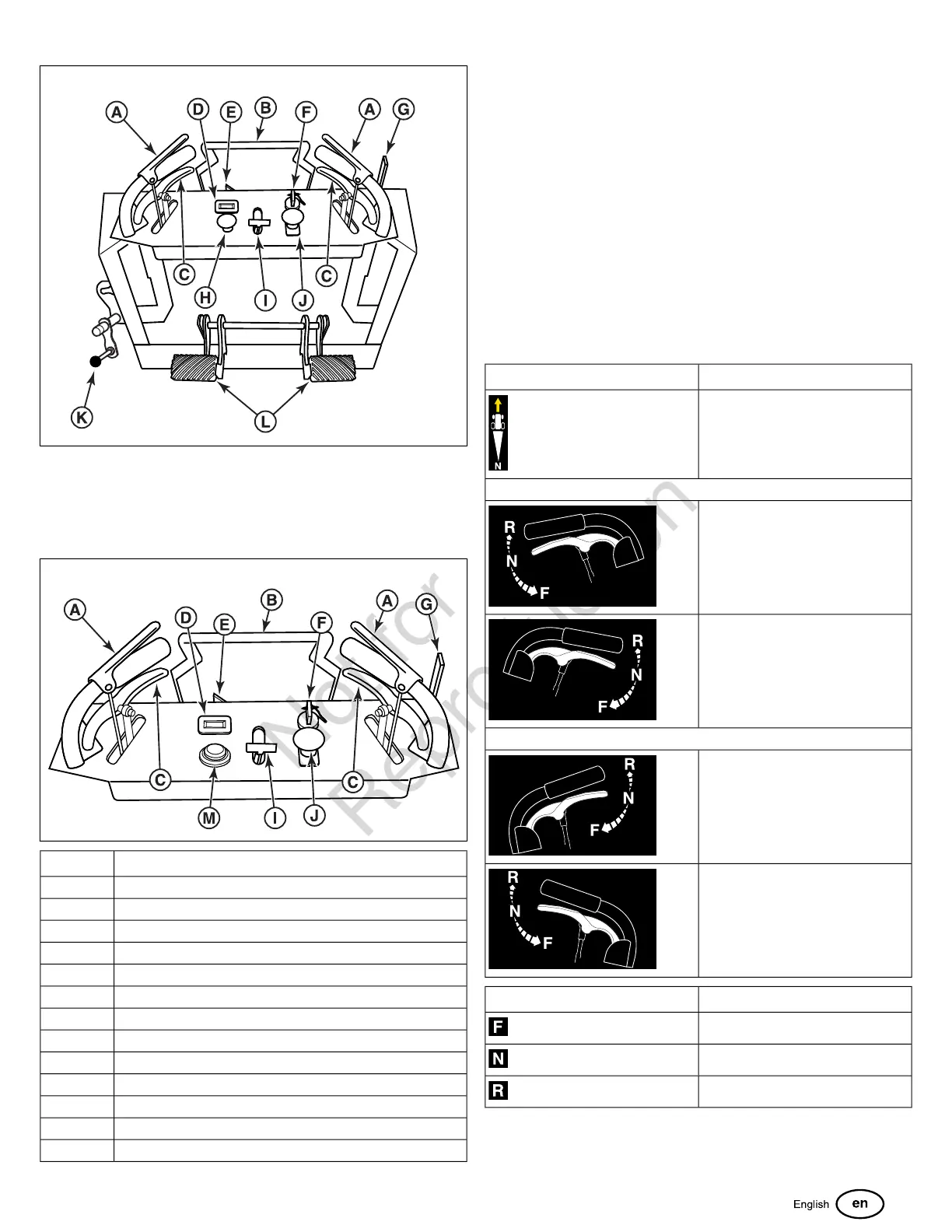

Control NameCallout
Operator Presence HandlesA
Forward Speed Control LeverB
Drive LeversC
Hour MeterD
Forward Speed IndicatorE
Ignition SwitchF
Parking Brake LeverG
ChokeH
Throttle ControlI
PTO (Power Take Off) SwitchJ
Cutting Height Adjustment HandleK
Neutral Return PedalsL
Malfunction Indicator Lamp (M.I.L.)M
Operator Presence Handles: These handles are a major factor
in the safety interlock system of the mower. Both handles are
tied together so depressing one handle depresses both. The
operator must depress the handles in order to activate the PTO
(Power Take Off) switch.
If the operator presence handles are released and the forward
speed control lever is in the NEUTRAL position and the PTO
switch is engaged, the mower blades will stop, but the engine
will remain running.
If the operator presence handles are released and the forward
speed control lever is NOT in the NEUTRAL position, the engine
will stop (with or without the PTO engaged).
Forward Speed Control Lever / Drive Levers: These levers
control the ground speed and direction of travel of the mower.
Control NameIcon
Forward Speed Control Lever
Machines with Standard Style Handle Bars:
Left Drive Lever
Right Drive Lever
Machines with Centralized Controls Style Handle Bars:
Left Drive Lever
Right Drive Lever
Control PositionIcon
Forward
Neutral
Reverse
The forward speed control lever controls the forward ground
speed of both drive wheels. S/N: 2016973573 & Below: The
11

Ferris FW35 Series Specifications

General

Deck Type	Fabricated
Fuel Type	Gasoline
Turning Radius	Zero-turn
Engine	Kawasaki
Drive System	Hydrostatic
Engine Manufacturer	Kawasaki
Transmission	Hydrostatic
Deck Material	Steel
