3. Check the balance of the mower blade. If either end of the
mower blade moves downward is heavier than the other.
Sharpen the heavy end until balance is achieved. See
Sharpening the Mower Blades for sharpening instructions.
4. Repeat the process until the mower blade remains in the
horizontal, level position.
Installing Mower Blades

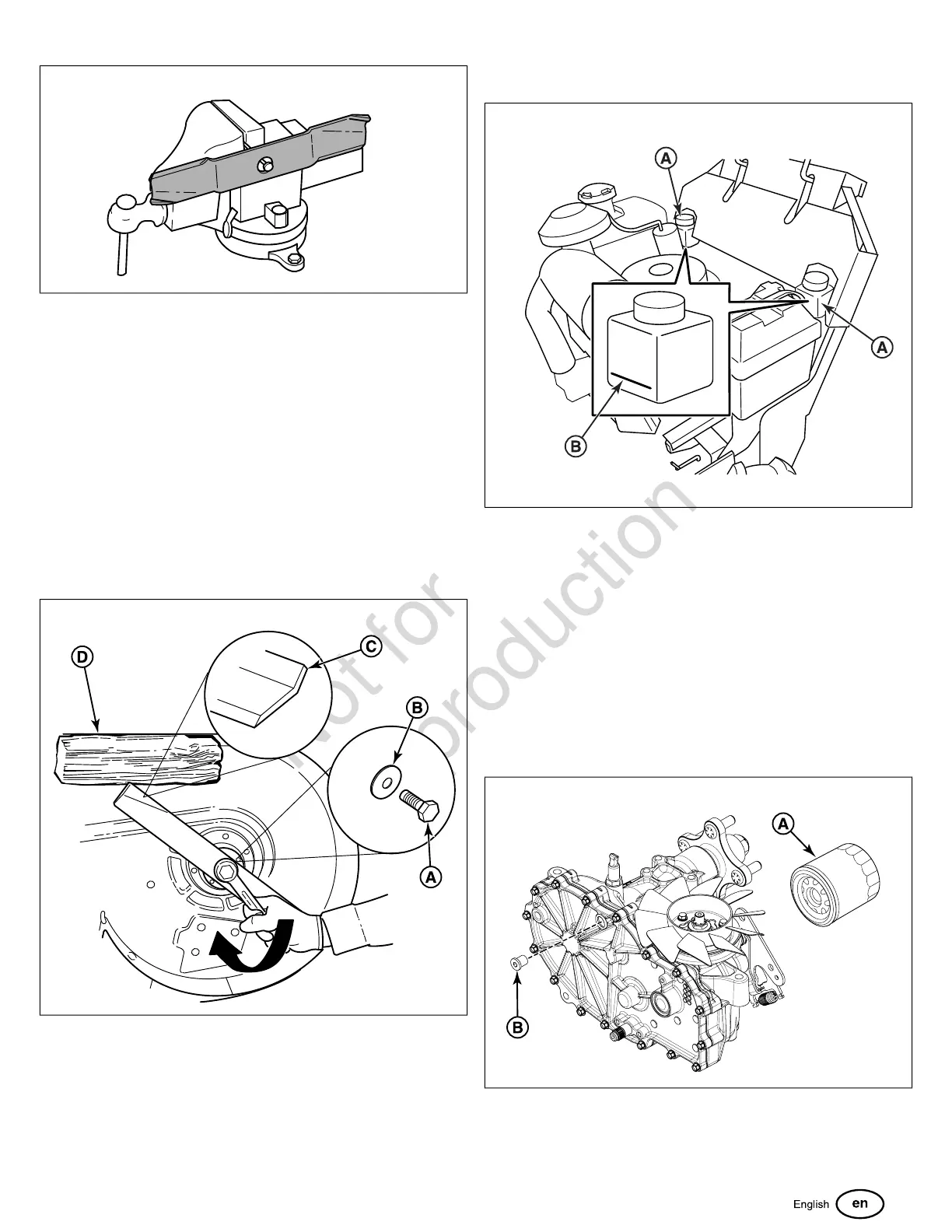

1. Reinstall each mower blade with the air lifts (C, Figure 27)
pointing up towards the mower deck as shown in Figure
27. Secure with the mower blade mounting bolt and flat
washer (A & B). Wedge a wooden block (D) between the
mower blade and the mower deck housing to keep the
mower blade from turning and torque to 70 ft. lbs (94 Nm).
27
Check / Fill Transmission Oil
Oil Type: 20W-50 conventional detergent motor oil.
1. Check the oil level when the unit is cold. Locate the
transmission oil reservoirs (A, Figure 28) located on the
handle bar assembly. The oil should be up to the “FULL
COLD” mark (B). If the oil is below this level, proceed to
step 2.
28
2. Before removing the reservoir caps, make sure the area
around the reservoir cap and fill neck of the reservoir is free
of dust, dirt, or other debris. Remove the reservoir cap.
3. Add oil up to the “FULL COLD” mark (B).
4. Reinstall the reservoir caps.
Transmission Oil Filter Change
Change Interval: Every 200 Hours
Replacement Filter Number: 5101026X1
1. Locate the transmission oil filters (A, Figure 29) underneath
the rear of the machine on the transmissions.
29
2. Clean the area around the filter base and remove the filter.
