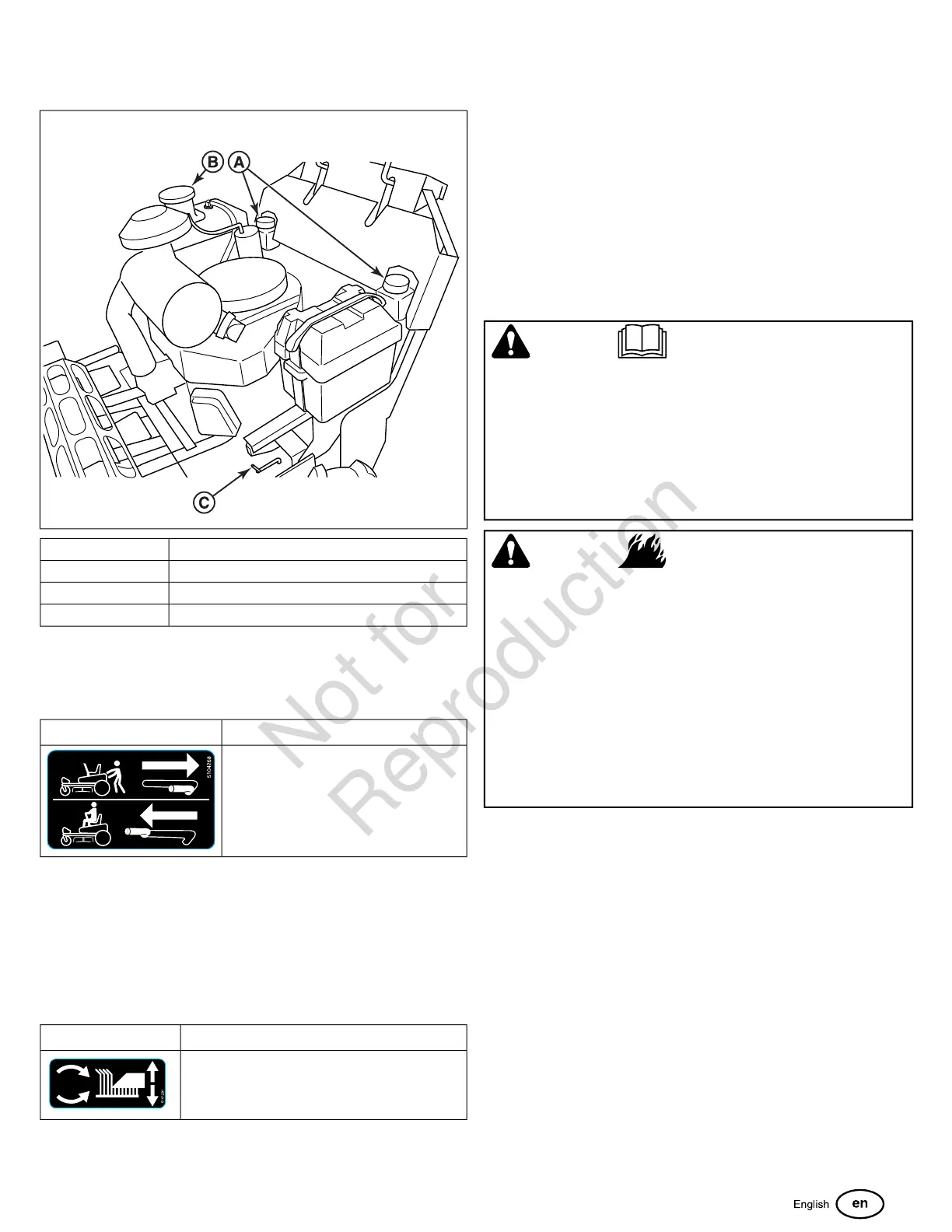

Control Locations & Functions - Left Side of
Mower
5
Control NameCallout
Transmission Oil FillA
Fuel Tank CapB
Transmission Release LeversC
Fuel Tank Cap: To remove the cap, turn counter-clockwise.
Transmission Release Levers:
Control NameIcon
Transmission Release Levers
This unit is equipped with two transmission release levers. The
transmission release levers deactivate the transaxle so that the
unit can be pushed by hand. Both transmission release levers
must be in the same position whether you are driving the unit
or pushing it by hand. See
Pushing the Unit by Hand
for
operational information.
Cutting Height Adjustment Handle:
Control NameIcon
Cutting Height Adjustment Handle
The cutting height adjustment handle controls the mower deck
cutting height. To raise the mower deck cutting height: crank
the cutting height adjustment handle clockwise. To lower the
mower deck cutting height crank: the cutting height adjustment
handle counter-clockwise.
Operation
Before First-Time Use
• Be sure to read all information in the Safety and Operation
sections before attempting to operate this unit.
• Become familiar with all of the controls and how to stop the
unit.
• Operate in an open area without engaging the PTO to
become accustomed to the unit.
WARNING
Read the operator's manual before attempting to operate
the machine.
If you do not understand how a specific control functions, or
have not yet thoroughly read the Features and Controls
section, do so now.
Do not attempt to operate the mower without first becoming
familiar with the location and function of all controls.
WARNING
• Before leaving the operator's position for any reason,
engage the parking brake, disengage the PTO, stop the
engine and remove the key.
• To reduce fire hazard, keep the engine and mower free
of grass, leaves and excess grease. Do NOT stop or park
unit over dry leaves, grass or combustible materials.
• Gasoline is highly flammable and must be handled with
care. Never fill the tank when the engine is still hot from
recent operation. Do NOT allow open flame, smoking or
matches in the area. Avoid over-filling and wipe up any
spills.
