UNLOCK: This position will allow the mower deck to
be raised and lowered without locking in the TRANSPORT
position when raised.
LOCK: This position will allow the mower deck to lock in
the TRANSPORT position when raised.
Parking Brake: Pull the parking brake lever back to
engage the parking brake. Move the lever fully forward to
disengage the parking brake.
Note:To start the unit the parking brake must be engaged.
DISENGAGE: Releases the parking brake.
ENGAGE: Locks the parking brake.
Ground Speed Control Levers: These levers control the
ground speed and direction of the rider. The left lever controls
the left rear drive wheel and the right lever controls the right
rear drive wheel.
9
A.
FORWARD
B.
NEUTRAL
C.
REVERSE
D. NEUTRAL LOCK POSITION
Moving a lever forward (A, Figure 9) from the NEUTRAL
position (B) increases the FORWARD speed of the
associated wheel, and pulling back (C) on a lever increases
the REVERSE speed.
Moving a levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL position.
Note:The further a lever is moved away from the neutral
position, the faster the drive wheel will turn.
See the Zero-Turn Driving Practice section for steering
instructions.
Fuel Level Gauge: Displays the fuel level in the tank.
Suspension Seat: Some models are equipped with a
suspension seat. This seat has several additional options.

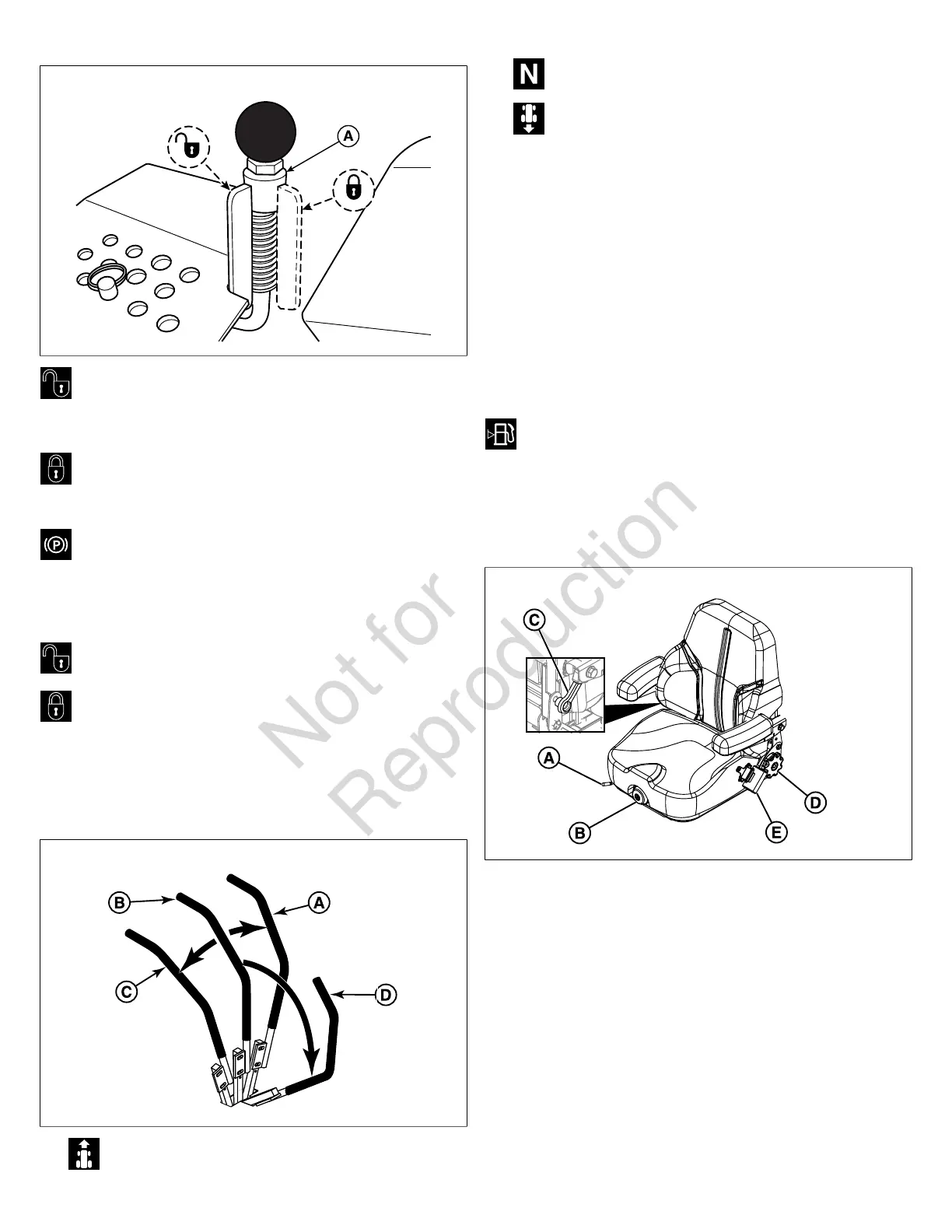

See Figure 10 and the list below for the location of the seats
features and brief description of their function.
10
A. Seat Adjustment Lever (Forwards/Backwards):
The seat can be adjusted forward and back. Move the
forwards / backwards seat adjustment lever, position the
seat as desired, and release the lever to lock the seat in
position.
B. Seat Adjustment Knob (Suspension/Ride Comfort):
The seat adjustment knob adjusts the suspension of the
seat (ride comfort). Turn the adjustment knob until the
display scale has a reading that matches the weight of
the operator.
C. Lumbar Adjustment Lever (Located underneath right
hand arm rest): Turn the lumbar adjustment knob until
the desired amount of lumbar is achieved.
D. Back Angle Adjustment Knob: Turn the back angle
adjustment knob until the desired amount of back angle is
achieved.
