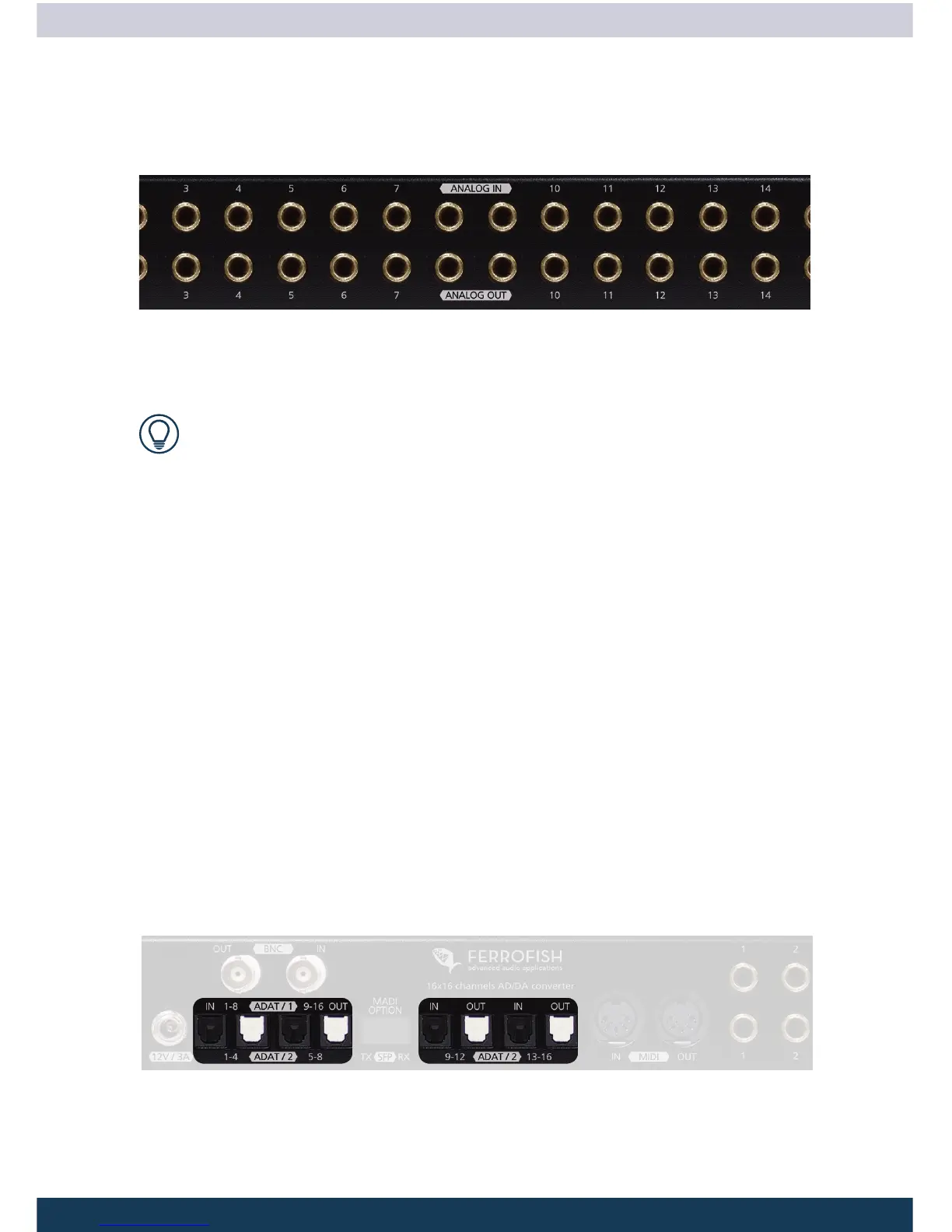

PULSE16 I/O’s – analog inputs and outputs
All analog inputs and output can be found on in balanced ¼” (6.3mm) TRS jacks, and
can be set independently to a level/sensivity between -8dBu and +20dBu.
The reference levels on the analog side mean a value of 0dBFS on the digital side,
when set to an input sensitivity of +4dBu and feeding the input with a signal level
of +4dBu (1.22Vrms)
The pinout of the TRS connections is:
Tip = hot, Ring = cold, Shield = ground.
When connecting the balanced input of the PULSE16 to an unbalanced device, please
set the cold channel to ground. When connecting the balanced output of the PULSE16
to an unbalanced input, leave the cold pin unconnected.
PULSE16 I/O‘s – ADAT
ADAT® is a digital multichannel interface standard by Alesis®. It can transfer eight
channels of audio data at 48kHz via an optical plastics fibre. The maximum length of an
ADAT connection is limited to 10 meters.
The PULSE16 has four pairs of ADAT I/O ports. The ports with white doors are the out-
puts, the black ones are the inputs.
