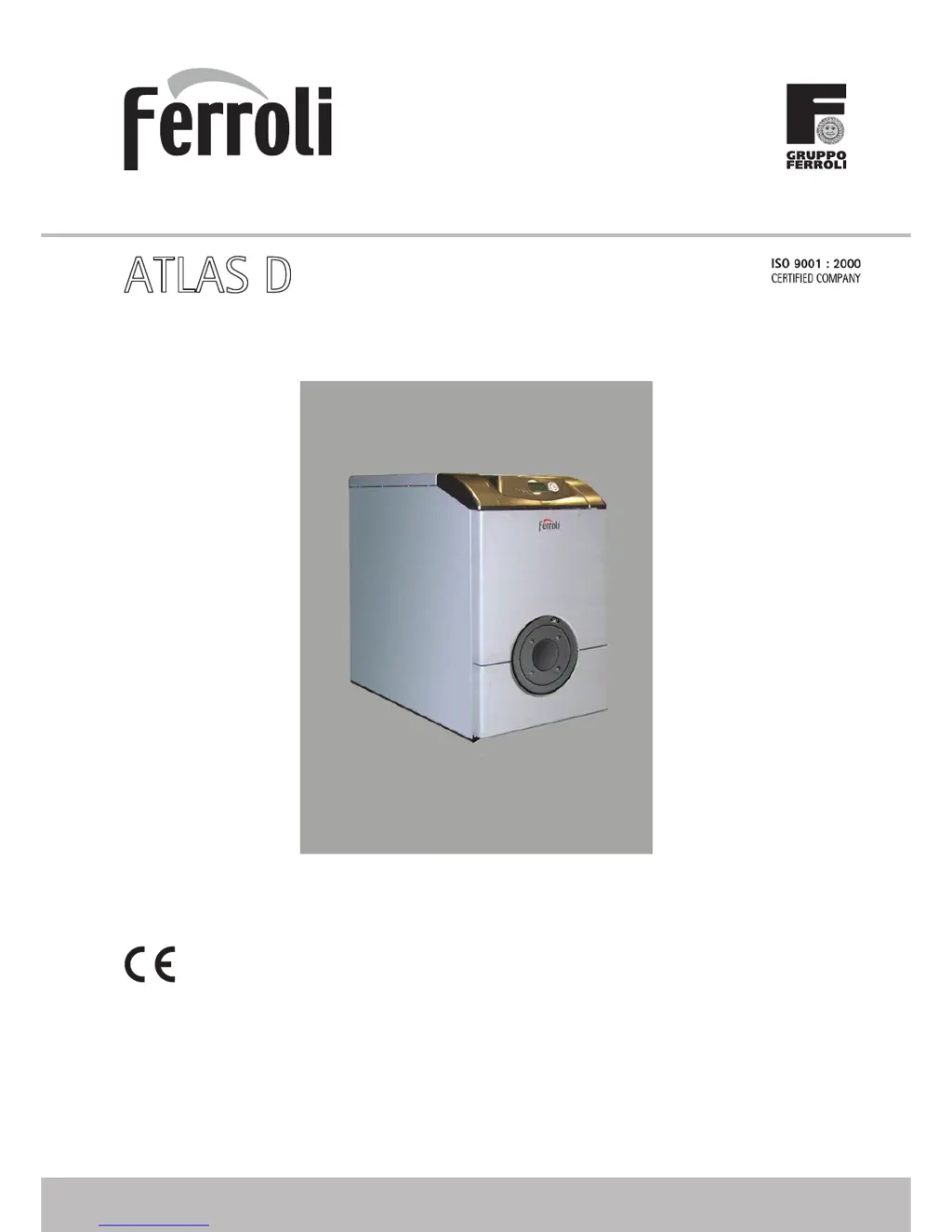

Ferroli ATLAS D User Manual (English)

Questions and Answers:

M
Mr. Daniel Williams DVMAug 17, 2025
What to do if the Ferroli ATLAS D shows overtemperature protection activation?
- J
  Jason LucasAug 17, 2025
  If the Ferroli Furnace is showing an overtemperature protection activation, it could be due to several reasons. First, the heating sensor might be damaged; in this case, you should check its correct positioning and operation. Second, there might be no water circulation in the system, so you should check the circulating pump. Finally, air in the system can also cause this issue, so try venting the system.
T
Taylor EdwardsAug 19, 2025
How to fix a delivery sensor 1 fault in a Ferroli ATLAS D Furnace?
- M
  Mark BrownAug 19, 2025
  If the Ferroli Furnace indicates a delivery sensor 1 fault, it is likely that the sensor is damaged. You should check the wiring or replace the sensor.
K
kwilliamsAug 22, 2025
How to fix DHW sensor fault in Ferroli Furnace?
- L
  lisa07Aug 22, 2025
  If the Ferroli Furnace indicates a DHW sensor fault, it is likely that the sensor is damaged. You should check the wiring or replace the sensor.
R
robertmaloneAug 25, 2025
How to fix delivery sensor 2 fault in Ferroli Furnace?
- A
  Anne SmithAug 26, 2025
  If the Ferroli Furnace indicates a delivery sensor 2 fault, it is likely that the sensor is damaged. You should check the wiring or replace the sensor.
G
gprattAug 27, 2025
What causes an external probe fault in a Ferroli Furnace?
- M
  Michael ChapmanAug 27, 2025
  If the Ferroli Furnace indicates an external probe fault, it could be due to a damaged probe or shorted wiring, in which case you should check the wiring or replace the sensor. Alternatively, the probe might be disconnected after activating the sliding temperature; in this case, reconnect the external probe or disable the sliding temperature.
H
holly92Aug 30, 2025
How to solve heating sensor fault in Ferroli ATLAS D?
- A
  Andrew HallAug 30, 2025
  If the Ferroli Furnace displays a heating sensor fault, it means that the sensor is damaged and should be replaced.
J
Jonathan RichSep 2, 2025
Why is my Ferroli ATLAS D Furnace showing a supply voltage under 170V?
- C
  coffeygraceSep 2, 2025
  If the Ferroli Furnace is experiencing a supply voltage under 170V, this is due to an electric mains trouble. You should check the electrical system.
D
Denise RyanSep 4, 2025
What causes a mains frequency fault in a Ferroli ATLAS D Furnace?
- B
  bushashleySep 4, 2025
  If the Ferroli Furnace is showing a mains frequency fault, it is due to an electric mains trouble. You should check the electrical system.

Ferroli ATLAS D Specifications

General

Type	Condensing
Fuel Type	Natural Gas / LPG
Heat Exchanger Material	Stainless Steel
Max working temperature	80 °C
Efficiency	Up to 98%
Output	24 kW
Water pressure	Max. 3 bar

Summary

General Instructions

Operating Instructions

Introduction to Ferroli Boiler

Introduces the Ferroli boiler and its advanced features, emphasizing manual importance.

Control Panel Overview

Details the control panel layout, symbols, and indicators for heating and DHW operation.

Turning Boiler On and Off

Explains the procedure for powering the boiler on and off, including lighting sequences.

Boiler Adjustments

Summer/Winter Mode Switchover

How to switch between Summer and Winter operating modes for seasonal efficiency.

Heating Temperature Setting

Setting the desired heating system output temperature for comfort and efficiency.

Hot Water Temperature Adjustment

Setting the desired domestic hot water temperature for user comfort.

Room Temperature Control

Adjusting room temperature via optional remote control or thermostat.

Sliding Temperature and Compensation Curves

Configuring intelligent heating based on outdoor temperature and compensation curves.

Remote Timer Control Adjustments

Table 1: Remote Timer Control Management

Details how the remote control manages various boiler adjustments and settings.

Water System Characteristics & Antifreeze

Water Hardness and Treatment

Advisories on water hardness and treatment for system longevity and performance.

Antifreeze System and Fluids

Information on the boiler's antifreeze system and approved fluids for protection.

Hot Water Storage Tank Connection

DHW Production Setup

Steps for connecting an external storage tank for domestic hot water production.

Installation Procedures

General Installation Requirements

Key requirements for boiler installation by qualified personnel.

Place of Installation Guidelines

Guidelines for selecting a suitable and safe location for boiler installation.

Plumbing and Burner Connections

Instructions for making proper water system pipe and burner connections.

Electrical Connection Safety

Safety and procedural requirements for electrical hookups to the boiler.

Room Thermostat and Terminal Block Access

Room Thermostat Connection Warnings

Critical safety notes regarding room thermostat wiring to prevent damage.

Accessing the Terminal Board

Steps to open the control panel cover and access the internal terminal board.

Flue System and Maintenance

Flue Connection Requirements

Guidelines for connecting the boiler to a suitable and compliant flue system.

Boiler Maintenance Procedures

Covers periodic checks, burner adjustment, start-up checks, and cleaning.

Diagnostic Fault Codes

How the self-diagnosis system displays faults, error codes, and troubleshooting steps.

Technical Specifications and Data

Dimensions and Main Components

Diagrams and labels identifying physical dimensions and key boiler parts.

Technical Data Table

Specifications and performance data for different models of the boiler.

Pressure Loss Water Side Graph

Graph illustrating water pressure loss characteristics against flow rate.

Wiring Diagram and Components

Boiler Wiring Diagram

Detailed electrical schematic showing internal connections and component layout.

Wiring Diagram Component List

List of components referenced in the wiring diagram with their function.
