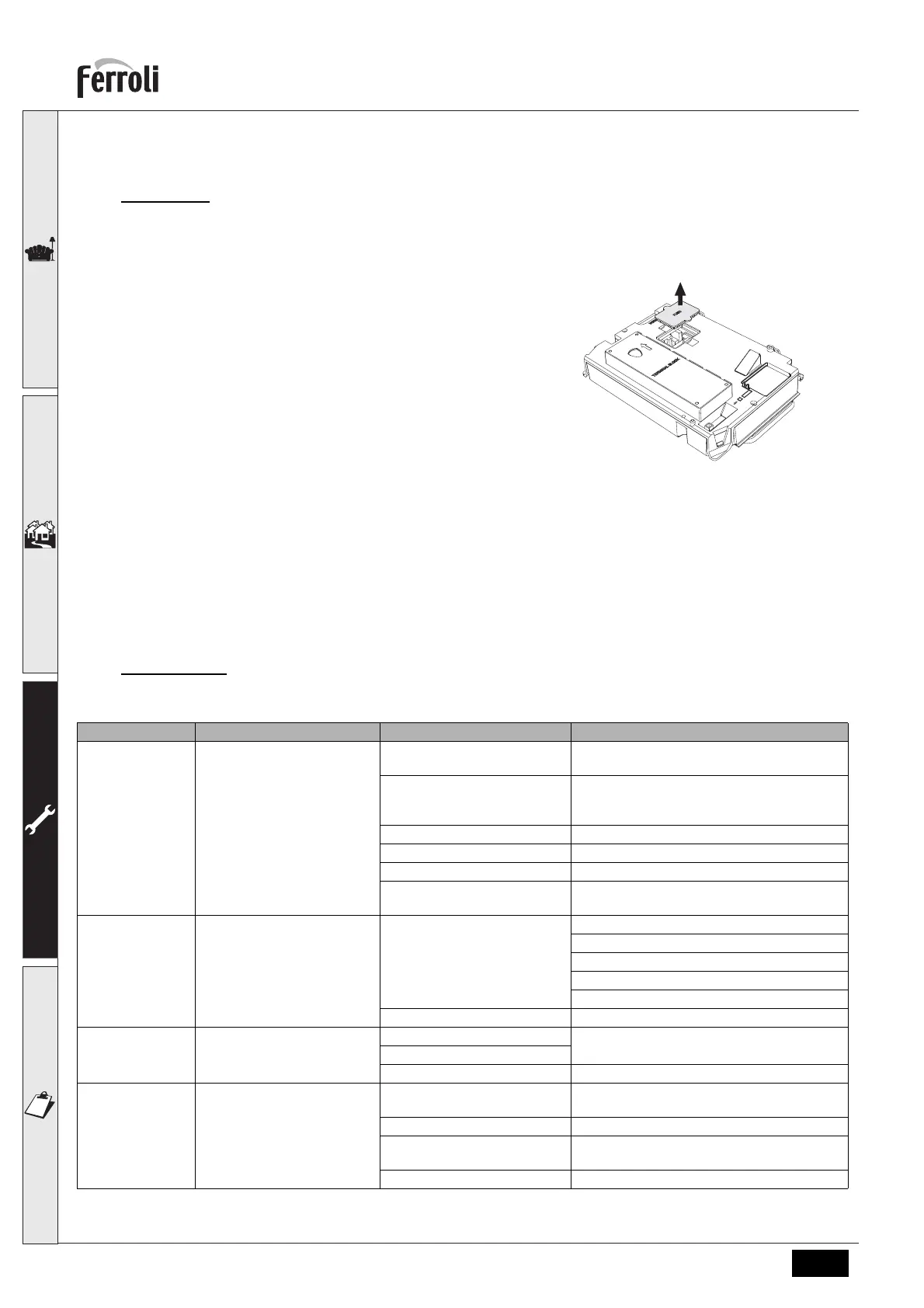

BLUEHELIX TECH RRT 24 H
196 EN
cod. 3541C662 - Rev. 00 - 09/2020
3.4 Troubleshooting
Diagnostics
LCD Off
LCD On
In case of operating problems or trouble, the display flashes and the fault identification code appears
There are faults that cause permanent shutdowns (marked with the letter "A"): to restore operation it is sufficient to press
the reset button (detail 6 - fig. 1) for 1 second or use the RESET on the remote timer control (optional) if installed; if the
boiler does not restart, it is necessary to, firstly, eliminate the fault.
Other faults cause temporary shutdowns (marked with the letter F”) which are automatically reset as soon as the value
returns within the boiler's normal working range.
Table of faults
Table 10- List of faults
Make sure that the card is powered: using a digital multimeter, check for the pre-
sence of supply voltage.
In case of no voltage, check the wiring.
If the voltage is sufficient ( Range 195 – 253 Vac ), check the fuse
(3.15AL@230VAC). The fuse is on the card. To reach it, see fig. 20 and fig. 48.
fig. 48- Fuse housing
Fault code Fault Possible cause Cure
A01 No burner ignition
No gas
Check the regular gas flow to the boiler and that
the air has been eliminated from the pipes
Ignition/detection electrode fault
Check the wiring of the electrode and that it is
correctly positioned and free of any deposits;
replace the electrode if necessary.
Faulty gas valve Check the gas valve and replace it if necessary
Insufficient gas supply pressure Check the gas supply pressure
Trap blocked Check the trap and clean it if necessary
Air/fume ducts obstructed
Remove the obstruction from the flue, fume
extraction ducts, air inlet and terminals.
A02
Flame present signal with burner
off
Electrode fault
Check the ionization electrode wiring
Check the condition of the electrode
Electrode to earth
Cable to earth
Check the trap and clean it if necessary
Card fault Check the card
A05 Fan fault
No 230V power supply
Check the 5-pin connector wiring
Tachometric signal interrupted
Fan damaged Check the fan
A06 No flame after the ignition phase
Ionization electrode fault Check the position of the ionization electrode and
replace it if necessary
Flame unstable Check the burner
air/fume ducts obstructed
Remove the obstruction from the flue, fume
extraction ducts, air inlet and terminals
Trap blocked Check the trap and clean it if necessary
