Boiler shell
2. (Fig. 14) Clean the link housing with grease solvent.
Thoroughly clean the twin-cone housing on the rear
element using fine glass paper, then clean all the other
elements forming the boiler shell, if there is rust.
4. (Fig. 16) Mount the twin-cone in its housing, lightly
tapping it into place with a wooden mallet.

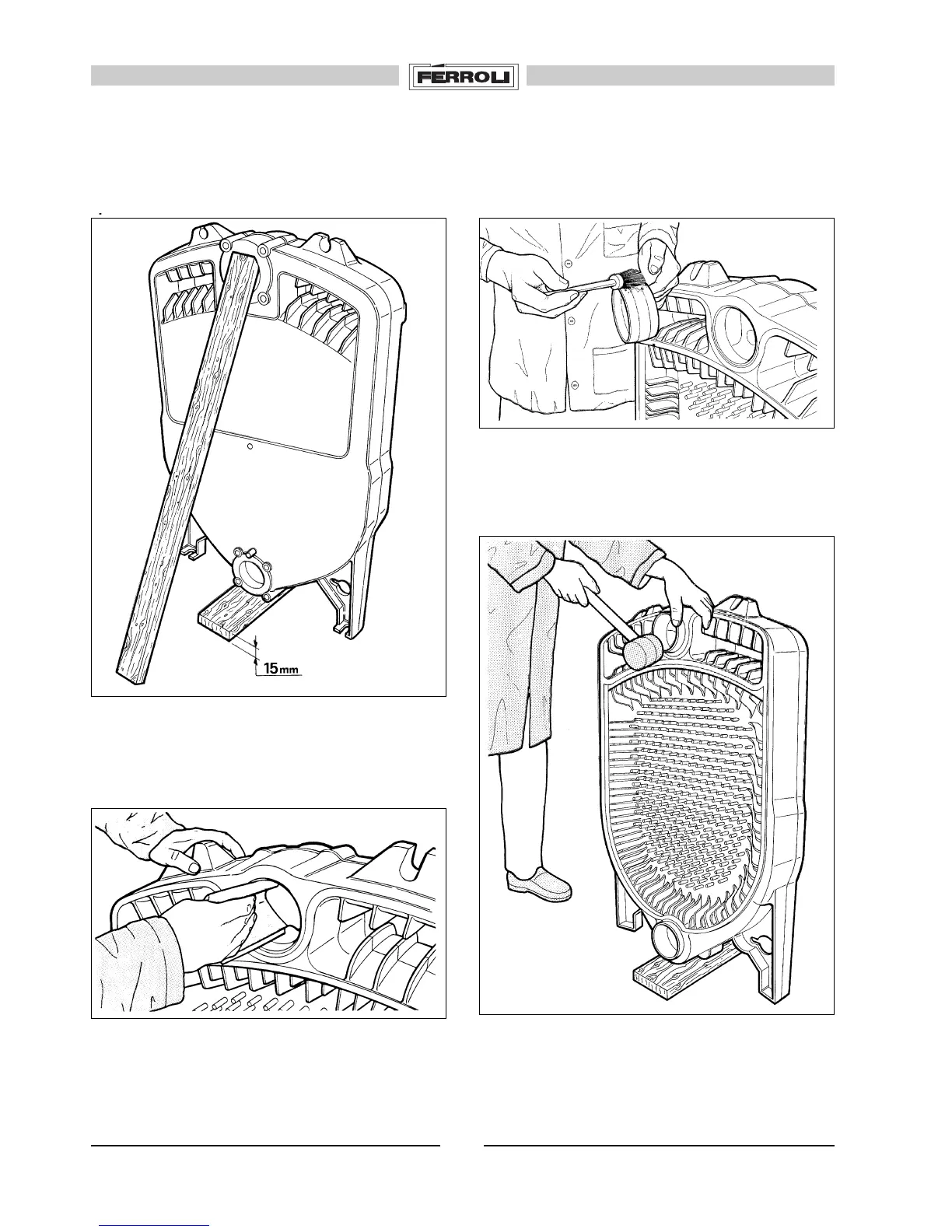

Fig. 13
Fig. 14
Fig. 15
3. (Fig. 15) Clean the links with grease solvent. Using the
package in the assembly kit, spread a light coating of
minium on the twin-cone and its housing, using a soft
brush.
Fig. 16
1. (Fig. 13) Use a 15 mm. wooden strip to shim the rear
element.
Now set a second strip in place, checking that it remains
stable throughout the assembly operations.
