18
GN3

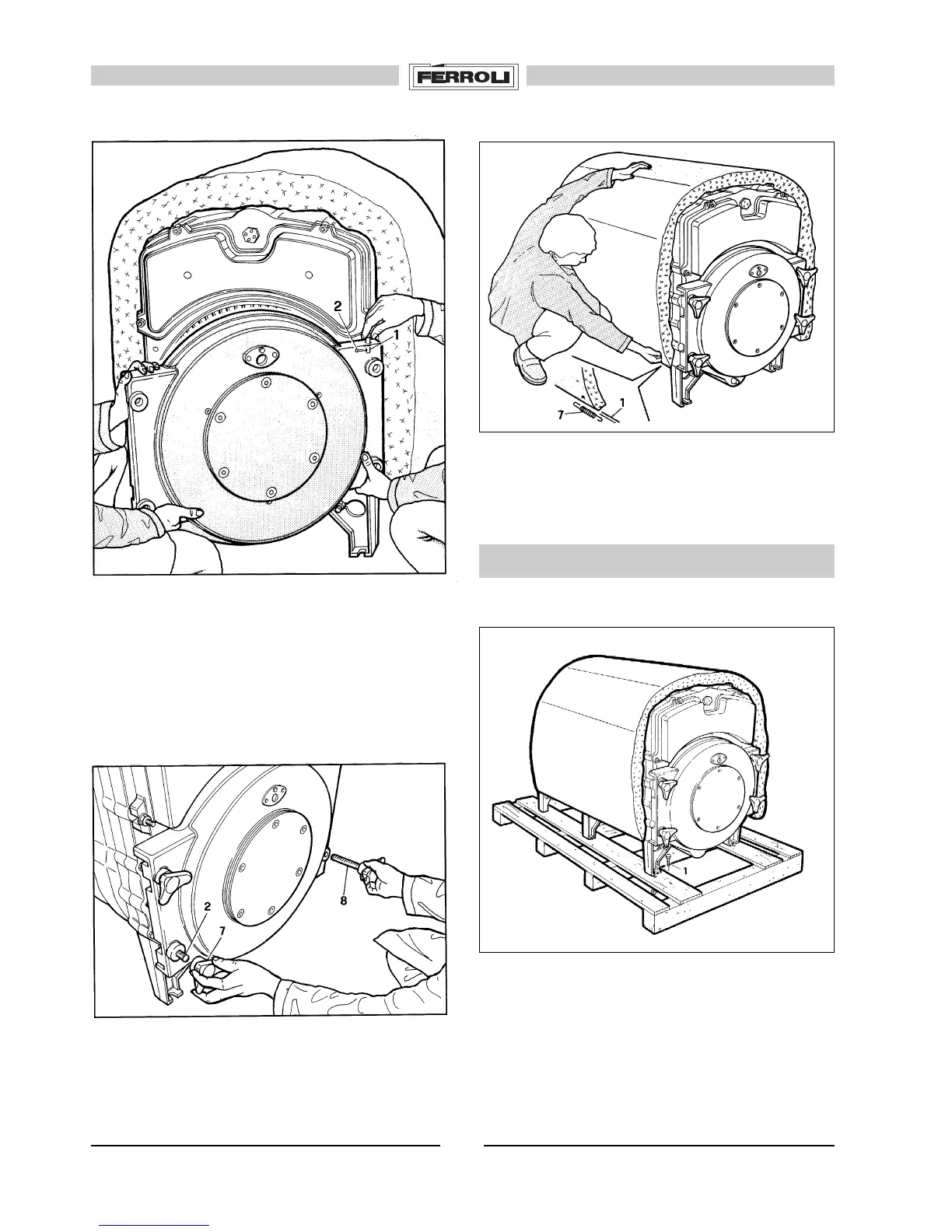

22. (Fig. 35) The boiler shell can be supplied already
assembled. In this case, it will be dispatched from the
factory on a pallet.
Remove bolts 1 fixing it to the pallet and place it in its
permanent installation position. Now mount the various
panels.
20. (Fig. 33) Fix the door with knobs 7 which should be
screwed on to stud bolts 2 (Fig. 26) and with knobs 8
already fitted with stud bolts.
CASING ASSEMBLY
19. (Fig. 32) Mount the lower door of the burner, hinging
it to support 3 (Fig. 28) with the relative pins 1 and split
pins 2.
Fig. 32
Fig. 33
21. (Fig. 34) Cover the boiler shell with the supplied sheet
of mineral wool, fixing it to rods 1 (Fig. 24) and using clips
7 included in the assembly kit.
Fig. 34
Fig. 35
