GN3
GENERAL INFORMATION
Description
Boiler GN3 is a new highly efficient heat generator. It
produces hot water for heating purposes and is able to
operate with either liquid and/or gas fuelled burners.
The boiler shell consists of cast iron elements assembled
with double steel cones and rods. The shape has been
specially designed for optimum fin distribution in order to
achieve high thermal efficiency with consequently excel-
lent enery savings.
Together with the dry chamber, the shape of the shell
enables this appliance to operate with delivery tempera-
tures of about 60°C without the formation of condensate.
Boiler insulation consists of a thick layer of mineral wool
which reduces heat dispersion in the environment to the
minimum.

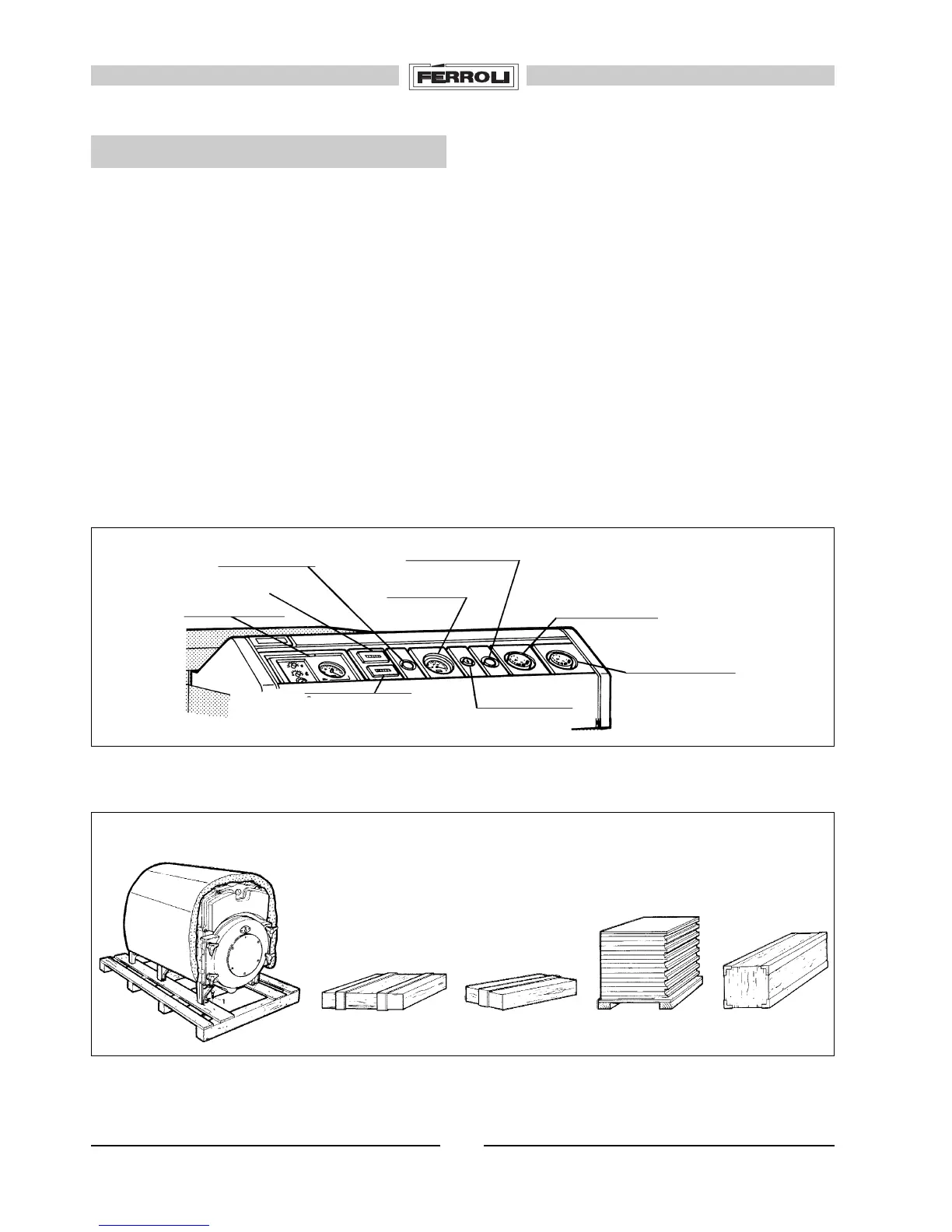

Packing (fig. 2)
Boiler GN3 can be supplied in two types of pack: with the
boiler shell assembled or in parts:
In the former case, 3 packs will be sent including:
1. Boiler body
2. Casing
3. Control panel
In the latter case, there will be 4 packs containing:
2. Casing
3. Control panel
4. Group of elements
5. Accessory kit
1. Boiler body
2. Casing
3. Control panel
4. Group of elements
5. Accessory kit
Fig. 1
Fig. 2
Burner inhibition warning light
Electronic plant (not supplied)
Boiler thermometer
Burner switch and warning light
2nd burner stage operation
hour counter
Safety thermostat
2nd burner stage adjuster thermostat
1st burner stage adjuster
thermostat
1st burner stage operation
hour counter
