17
GN3

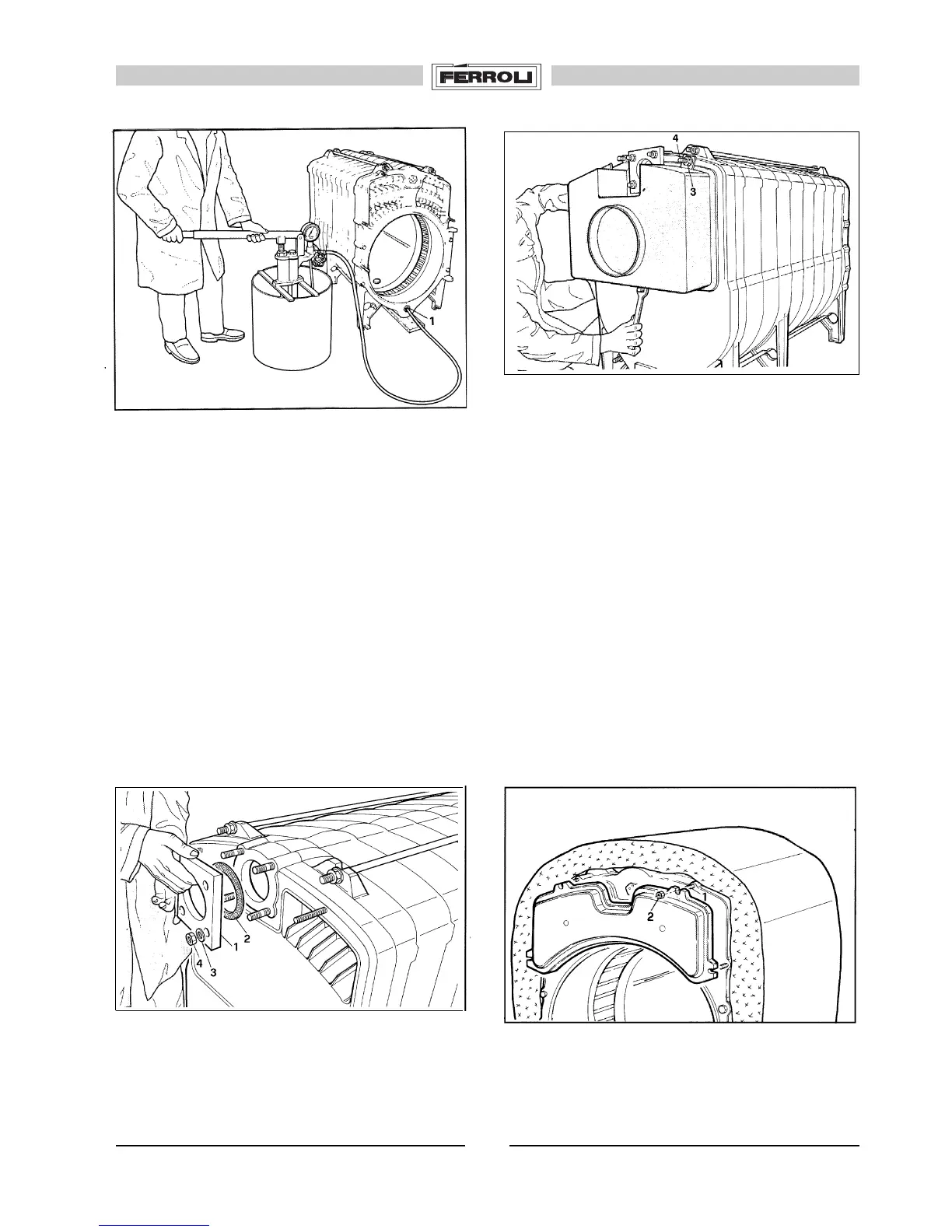

16. (Fig. 29) Mount flange 1 after having interspaced seal
2, washers 3. Now tighten with nuts 4.
18. (Fig. 31) Mount the upper front door on the four stud
bolts 1 and lock it in place with the relative nuts 2.
Fig. 29
Fig. 31
17. (Fig. 30) Mount the smokebox on the three stud bolts
4 (Fig. 24), locking them in place with nuts 3.
15. (Fig. 28) Using the relative pump, connect to union 1
and let water under pressure into the boiler (8 bar). Wait
a few minutes before checking that there are no leaks.
Now check that the fumes seal between the elements is
correct.
Ferroli S.p.A. declines all responsibility for damage to
persons or property caused by fumes and water leaks
from the boiler due to assembly errors or negligent seal
inspections.
Fig. 28
Fig. 30
