20
GN3

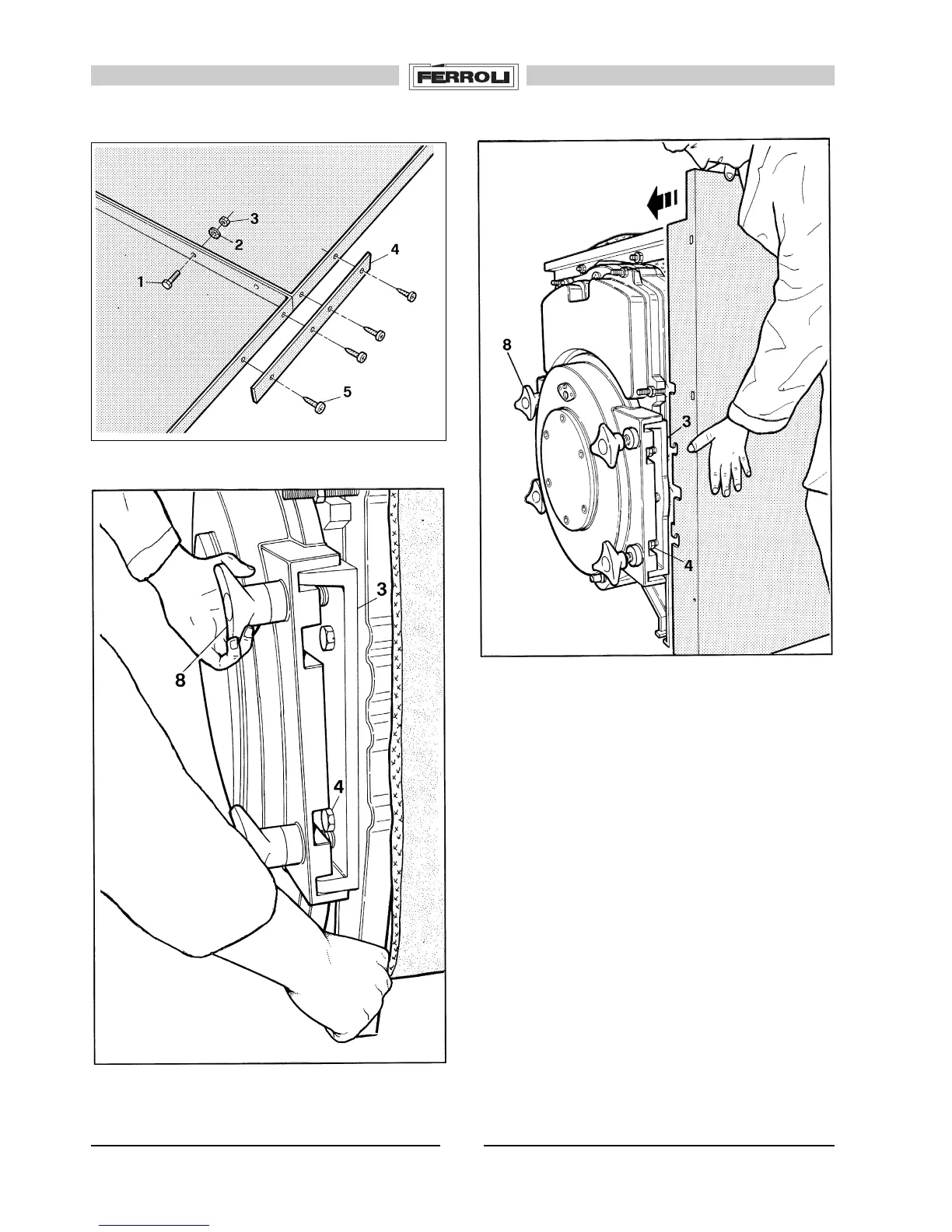

25. (Fig. 38) Connect the panels together using screws 1,
washers 2 and nuts 3, reinforcing their lower part with
bars 4 fixed with screws 5.
26. (Fig. 38) Slacken knobs 8 on the right side of the boiler
together with the two screws 4 fixing door support 3.
27. (Fig. 40) Insert the complete right side panel between
door support 3 and the boiler shell, checking that the
machined slots fit into their correct positions.
Now tighten screws 4 and knobs 8.
Fig. 39
Fig. 40
Fig. 38
