Ferroli optima 601 - Appliance Dimensions

601
5

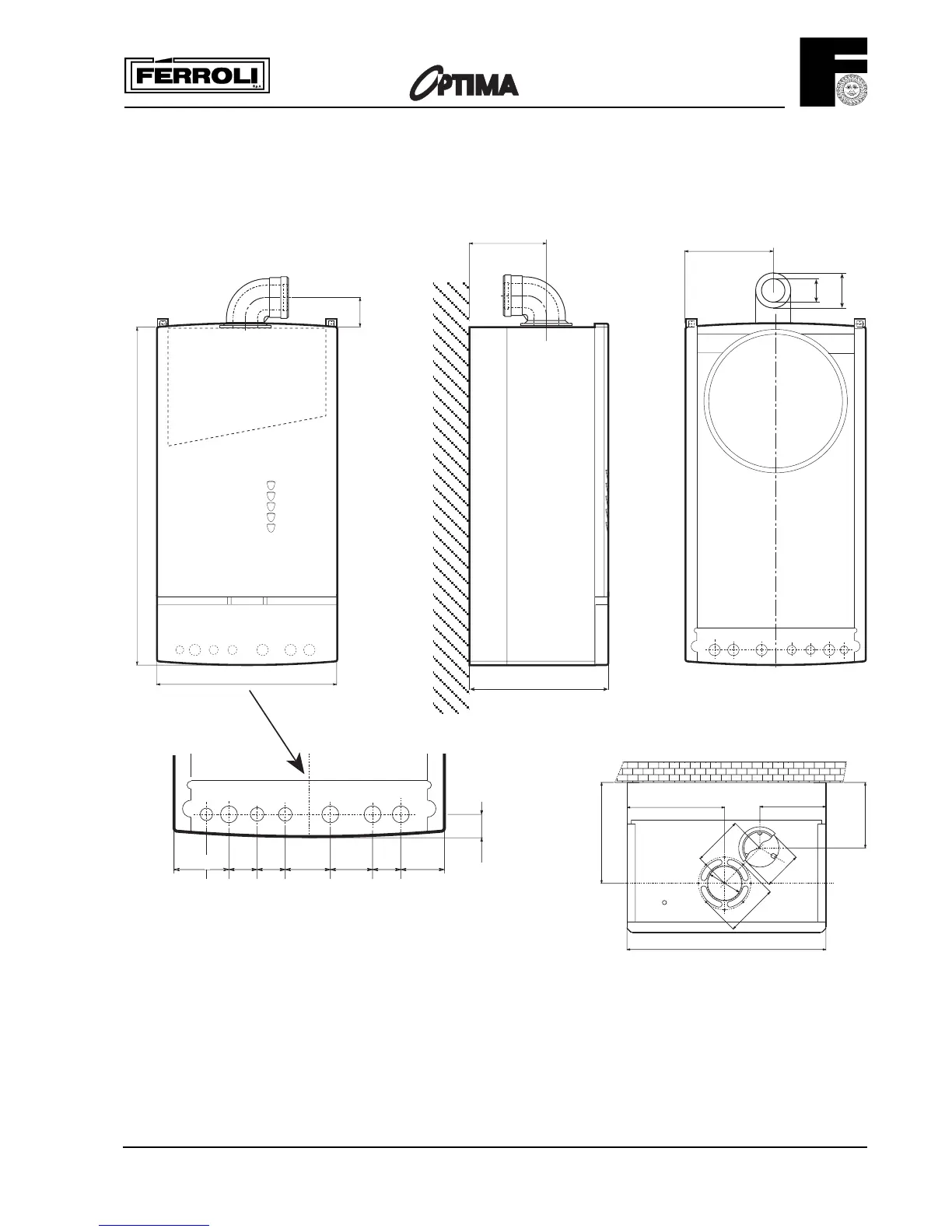

Appliance Dimensions
Fig. 1
Key
1. Electricity cable entry
2. Gas supply
3. Domestic Hot Water outlet
4. Domestic Cold Water inlet
5. Central Heating Pressure relief valve
6. Central Heating Flow outlet
7. Central Heating Return inlet
8. Air intake for two pipe flue systems
FRONT VIEW LEFT SIDE VIEW REAR VIEW
8 - TOP VIEW
480
900
370
77.5507580505097.5
12 3 4 5 6 7
40
85
242
235
60
100
Øi92
Øi82
120
242
126.5
235
160
157
480
