Note！
●To prevent damage the equipment, make sure to turn down the volume and shut down all the
equipment before making any connection.
●Additional cymbals, speakers, headphones, and peripherals are not standard accessories, if necessary
you must purchase separately.
1. When in use, connect the power terminal according to the diagram, and insert the power outlet of the
module box at one end and the 100-240V household power outlet at the other end. (Fig. 1)
2. If you do not use this product for a long time, please pull out the power plug and keep it properly.The use of
an electronic drum MIDI USB interface can interact with music devices with MIDI.
1
POWER TERMINAL CONNECTION
Connecting headphones monitor the details of percussion and do not disturb others when playing without
connecting speakers. (Fig.5)
5
EARPHONE SOCKET
Audio output port can be connected with active speaker (special electronic drum speaker) and large audio
equipment. (Fig. 3)
3
AUDIO OUTPUT SOCKET
The audio input port can connect the sound source playback device to the module box for playback(such as
MP3. mobile phone and other audio signal input). (Fig. 4)
4
AUDIO INPUT SOCKET
The use of electronic drum MIDI USB interface can interact with music devices with MIDI.
1. Through the pre-installed Music software on computers and mobile phones, we can learn to
play,compose music, store and other functions. (Fig. 2)
2. When connected to a computer or mobile phone, the audio output of the device needs to be connected
to the audio input socket of the module box in order to synchronize the sound effects on the device. (Fig. 5)
2
2 USB MIDI SOCKET

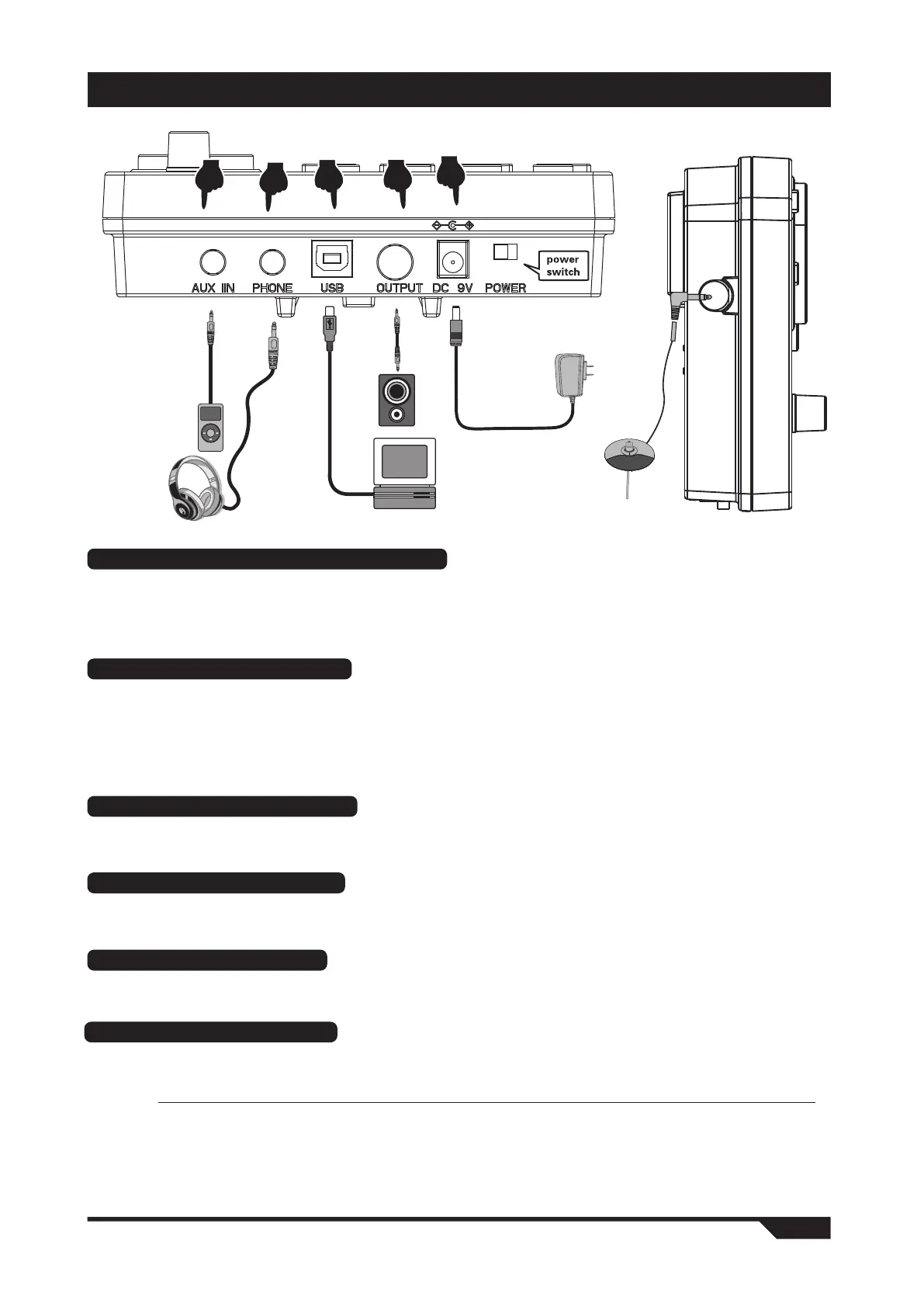

MOUDLE SOCKET DIAGRAM
8
MANU
MP 3
SONG
The audio output port can be connected with an active speaker (special electronic drum speaker) and large
audio equipment. (Fig.3)
6
ADD CYMBAL SOCKET
4
5
2
3
1
