3 Installation
Festo CDPX-… en 1203NH 3-6

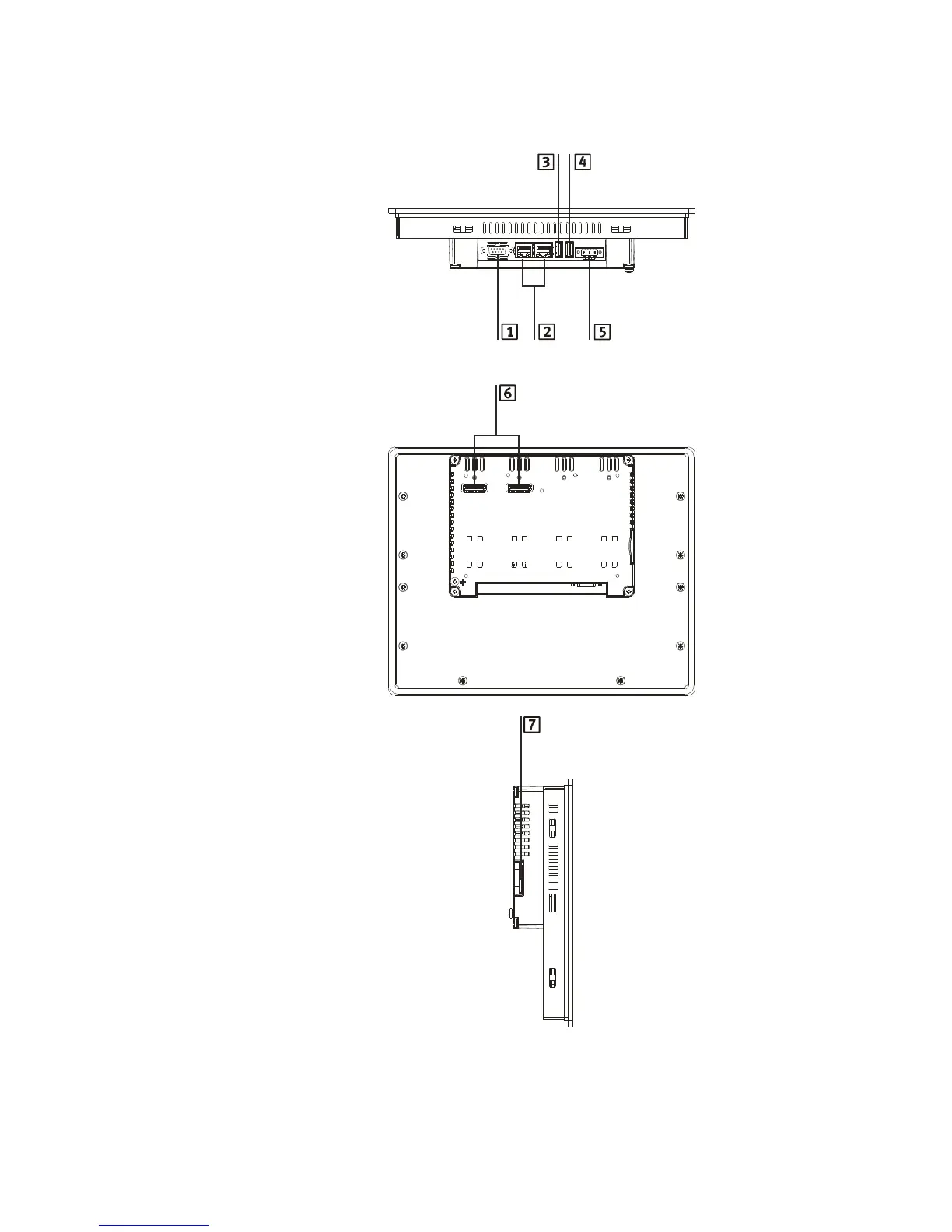

1 Serial Port
2 Ethernet Port
3 USB Port (version 2.0
and 1.1)
4 USB Port (version 2.0
High speed only)
5 Power
6 Expansion Slot
7 SD Card Slot
Fig 3/6: Connections of CDPX-X-A-W-7, CDPX-X-A-S-10, CDPX-X-A-W-13
