3 Installation
3-9
Festo CDPX-… en 1203NH

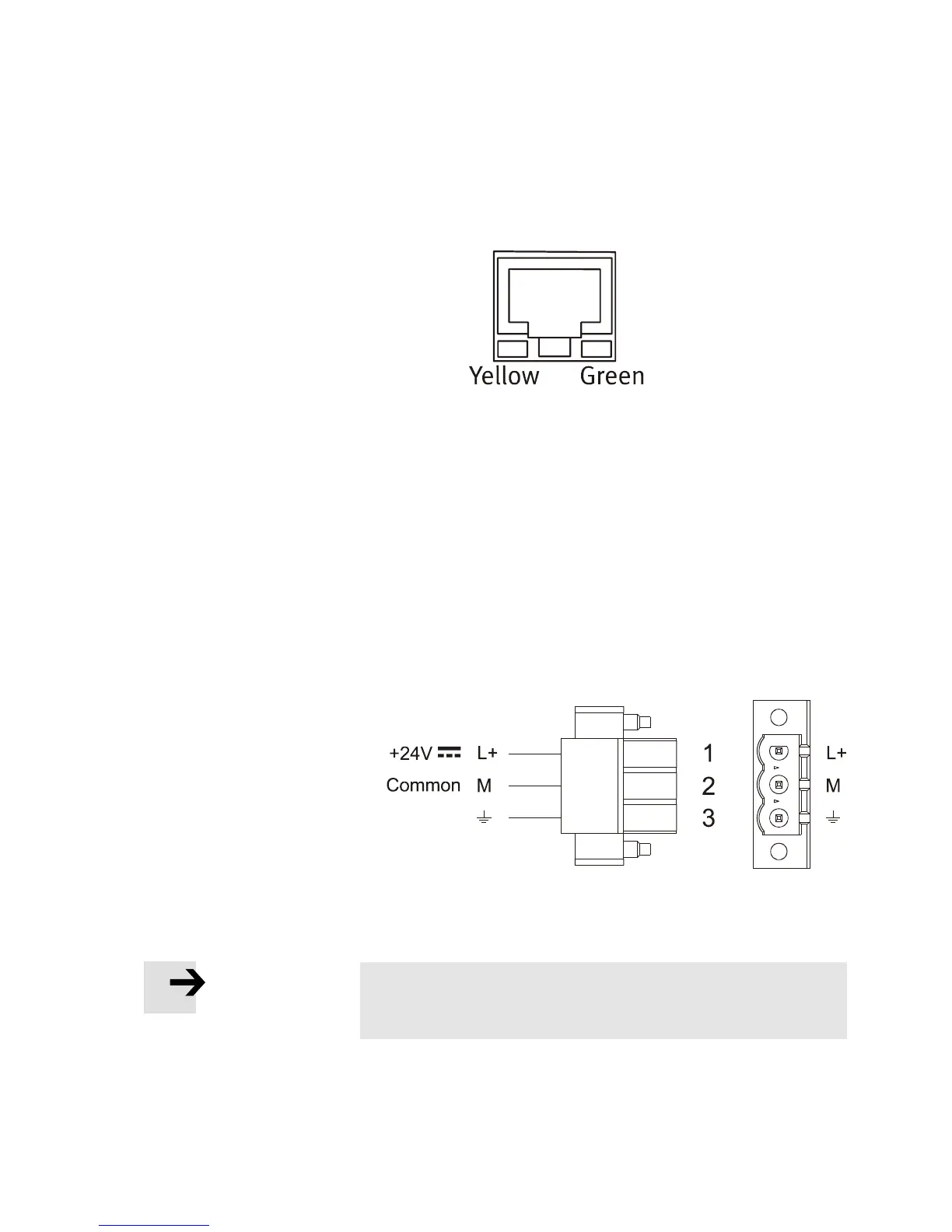

3.4 Ethernet Port
The Ethernet port have two status indicators.
Yellow OFF: Valid link has NOT been detected
Yellow ON: Valid link has been detected
Green ON: No activity
Green BLINKING: Activity
3.5 Power Supply and Grounding
The power supply connection on the CDPX operator panel is
shown in fig. 3/7. The 24 V plug is supplied with the CDPX.
Fig 3/7: power supply connection
Please note
Ensure that the power supply has enough power capacity for
the operation of the equipment.
