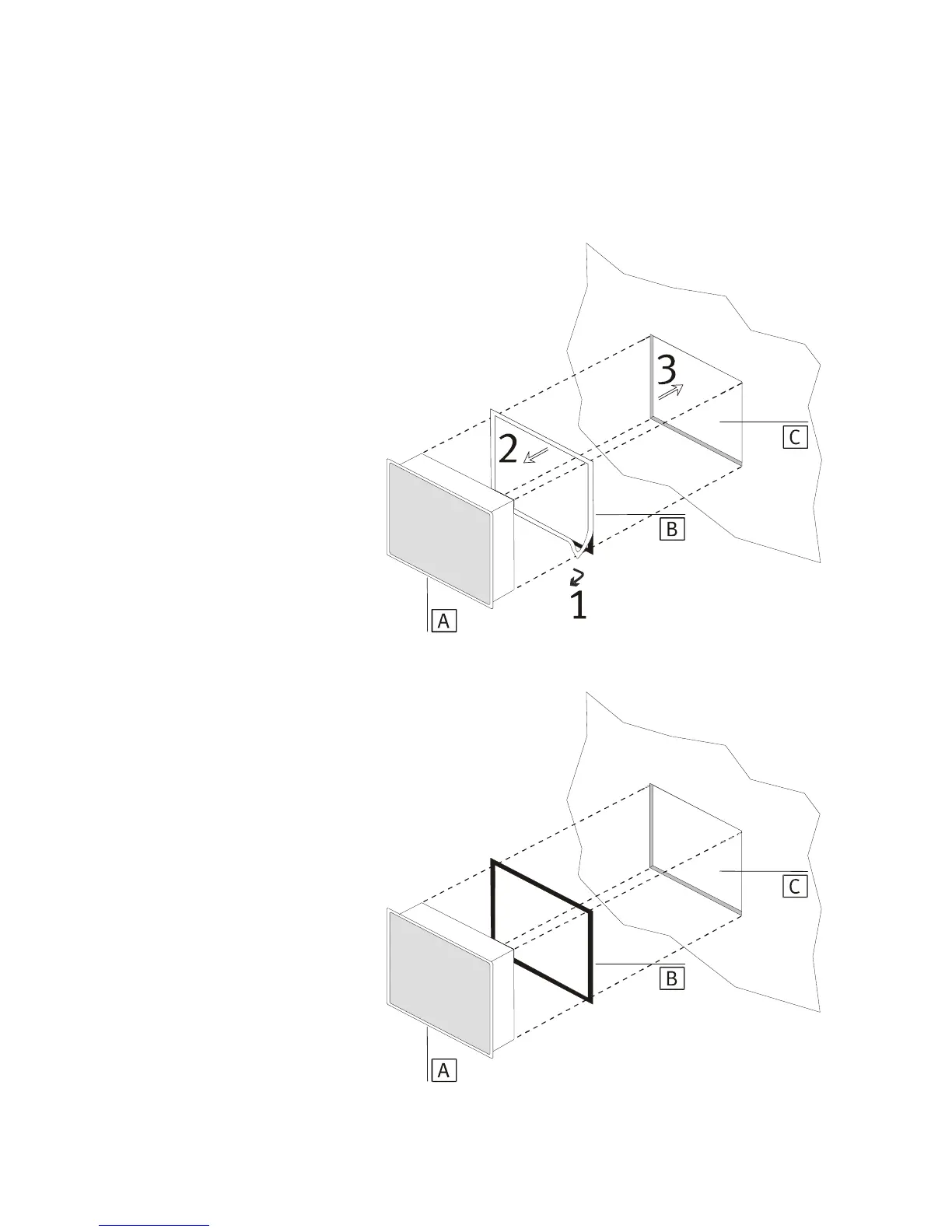

3.8.1 Applying the gasket
The gasket should be applied on the rear of the frame
A CDPX
B Gasket
C Cutout
Fig 3/11: Applying the gasket on the CDPX-X-A-S-10, CDPX-X-A-W-13
A CDPX
B Gasket
C Cutout
Fig 3/12: Applying the gasket on CDPX-X-A-W-4, CDPX-X-A-W-7
