2.1 General remarks on the fieldbus protocol PROF IBUS-DP
The CTEU-… product famil y enables the creation of a decent-
ralised automation system in a PROFI BUS-DP fieldbus net-
work.

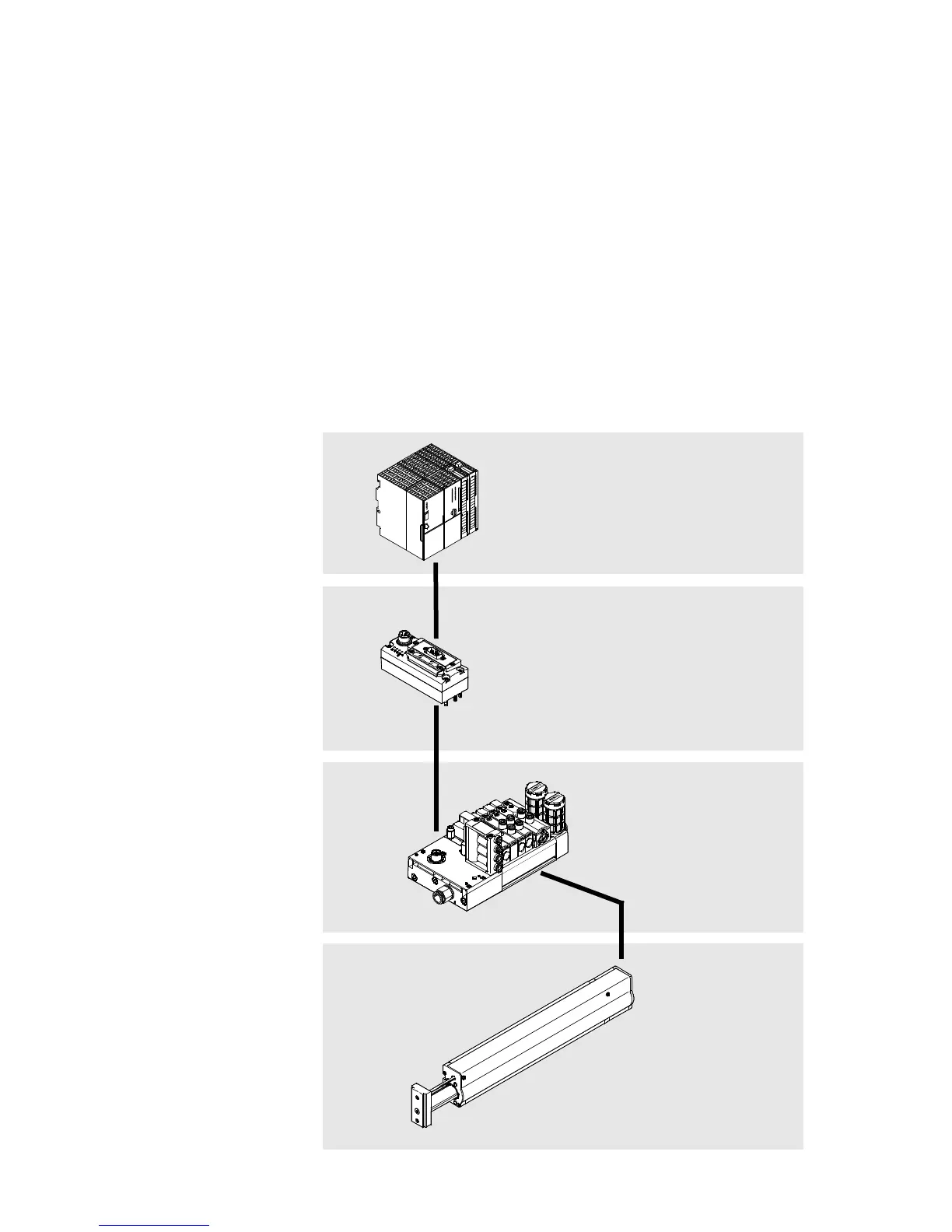

2.1.1 Components
1 Higher-order con-
troller (DP master):
e.g. from
SIEMENS
2 Fieldbus level:
bus node CTEU
3 Device level:
e.g. valve termin-
al VTUB-12
4 Drive level:
e.g. Linear mo-
dule H ME
1
2
3
4
