2.6.5 Application example for the parameterisation
In the application example (Fig. 2/13), packages are transpor-
ted on a fast-moving conveyor belt.
1
Input for 1st
sensor
2
Parameterised in-
put for 2nd
sensor
2
1
1st sensor
2nd sensor

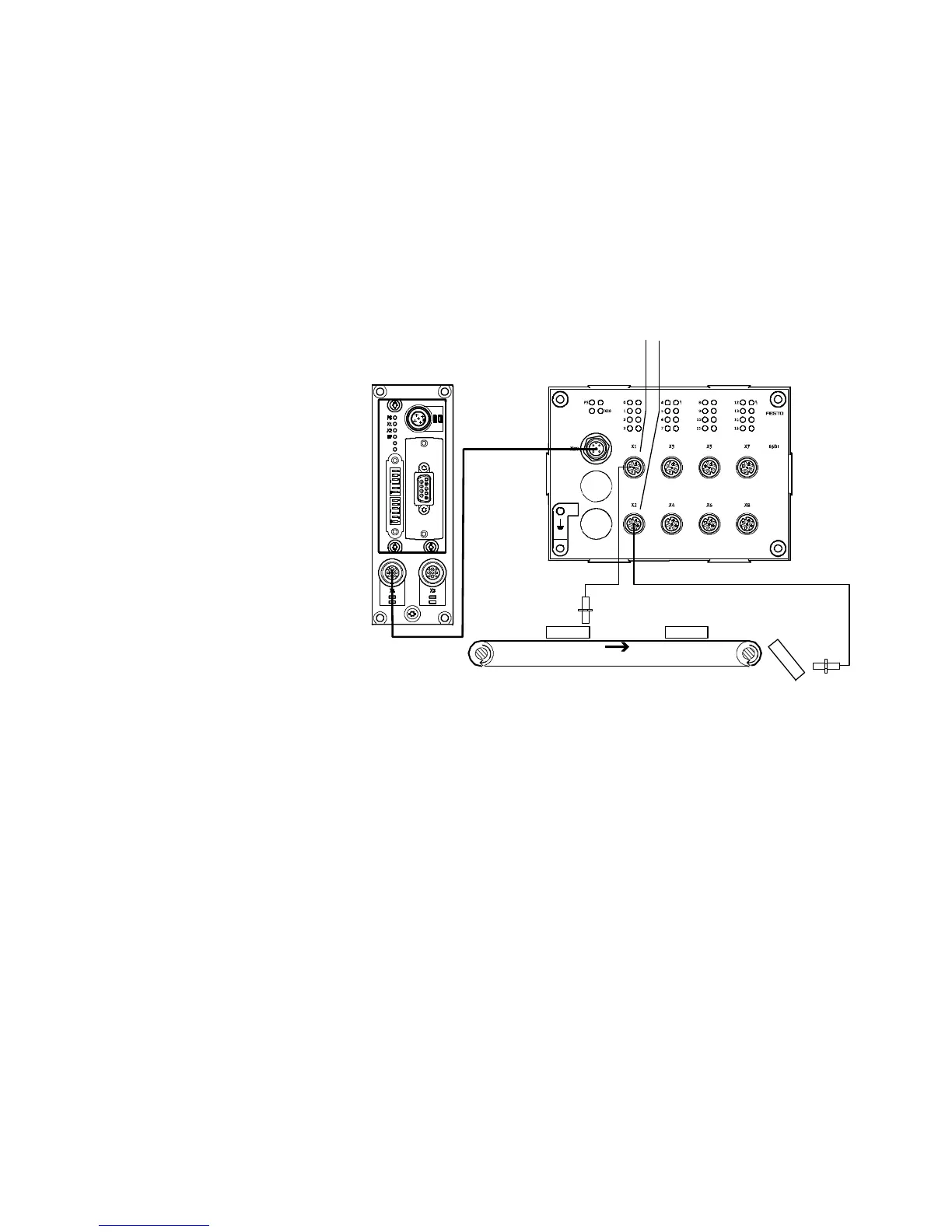

Fig. 2/13: Application example for parameterisation of input debounce time and signal
extension time on the 2nd sensor
For improvement of the signal detection and processing, the
input for the 2nd sensor is parameterised as follows:
– Reduction of the input debounce time from 3 ms (factory
setting) to 0.1 ms: detection of shorter signals is possible.
This parameter is set for the total module.
– Signal extension time set for 50 ms: Secure detection of
the signals through the controller.
The value of this parameter is set for the complete mod-
ule, but must be activ ated / deactiva ted separately for
each input channel.
