5. Confirm with “OK”.
1
1
Deactivate checks so that ONLINE fields that have already been filled out are
not overwritten.

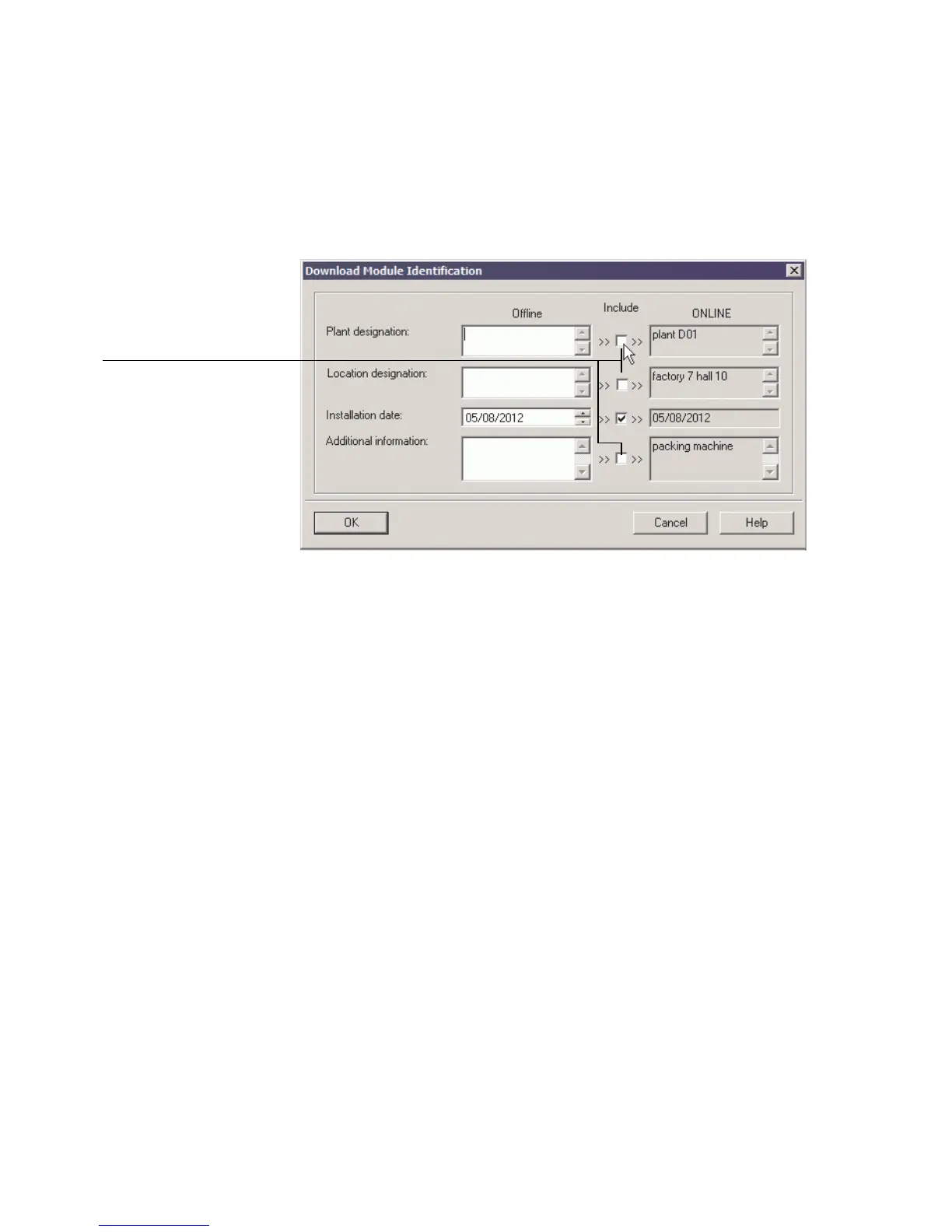

Fig. 2/8: Load identification data into the bus node
2.5.3 Check identification properties using Step 7
1. Mark the bus node in HW Config.
2. Click on [Module Information...] in the [PLC] menu.
The corresponding dialogue window is displayed
(see Fig. 2/9).
“General” In the “General” tab, you will find the hardware and softw are/
firmware status of the bus node (see Fig. 2/9) as well as the
specifications entered in the fields “Plant designation” and
“Location designation” (Fig. 2/8).
“DP-Slave Diagnostics” In the “DP-Slave Diagnostics” tab, you will find, if applicable,
diagnostic information about the bus node (see Fig. 2/10,
status: error).
“Identification” In the “Identification” tab, you will find further information,
such as manufacturer's specifications (see Fig. 2/10) as wel l
as the specifications entered in the fields “Installation date”
and “Additional information” (Fig. 2/8).
