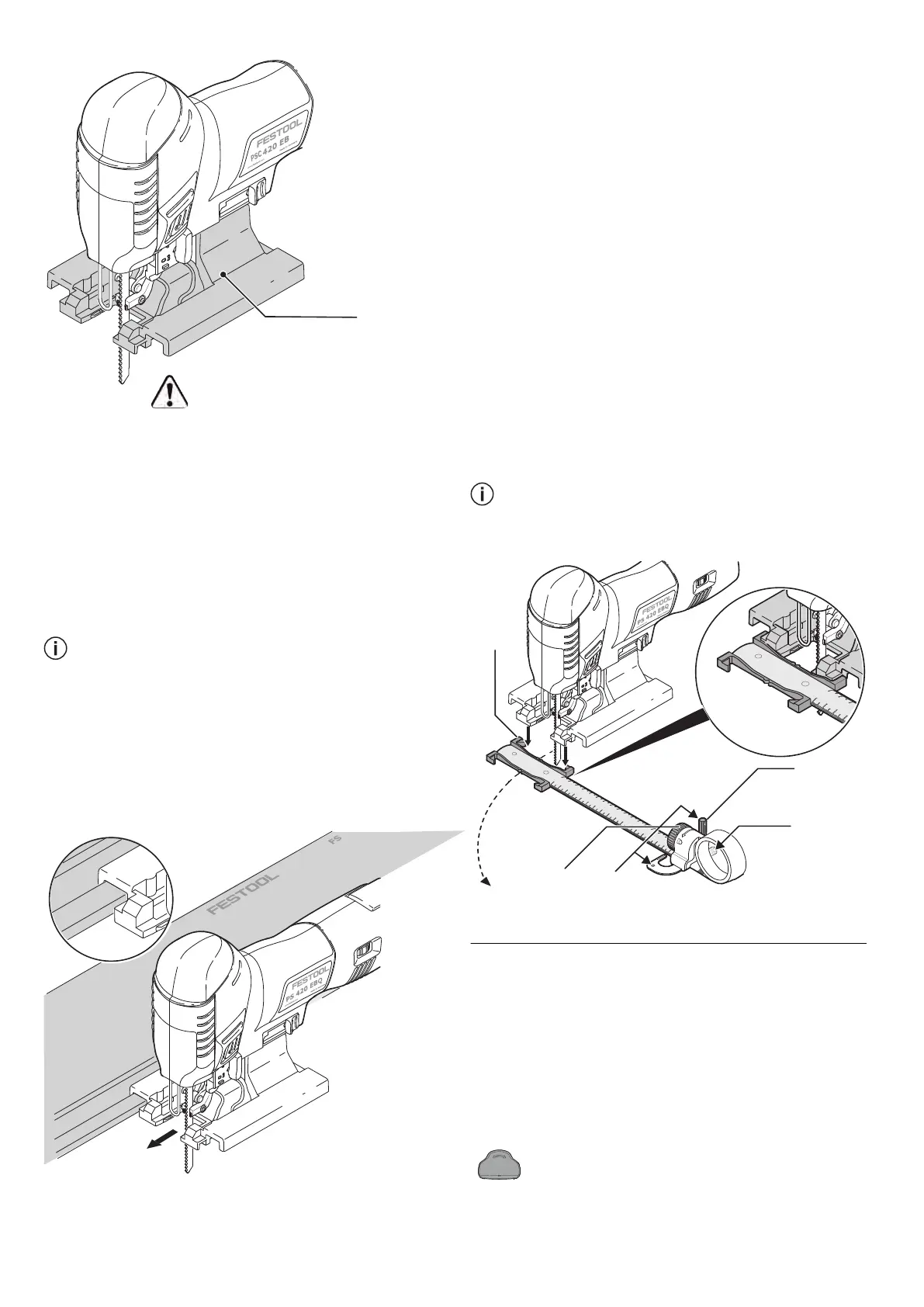

Installing the base adapter
► Remove the saw table [1-12] (see section
8.4 ).
► Position the base adapter [9-1] against the
saw table support.
► Close the lever [1-10].
Ensure that the base adapter is firmly seated in
the guide.
Also use the extractor connector [1-9]
with the base adapter.
Adaptation to the FS 2 guide rail
The FS 2 Festool guide system (Fig. [10]
)
makes it much easier to produce straight and
precise cuts.
► Place the jigsaw with attached base adapter
[9-1] on the guide rail.
Adaptation to the core maker
The core maker can be used to create circular
cuts with a diameter between 4-3/4" and
118-1/8" (120 and 3000 mm). The core maker
can be installed from both sides on the base
adapter.
► Place the jigsaw with attached base adapter
on the adapter [11-1] on the core maker.
► Insert the centring mandrel [11-2] in the
hole [11-4] on the core maker aligned with
the saw blade.
► Clamp the measuring tape to the core mak
er using the rotary knob [11-5].
Recommended settings when using the core
maker:
► Cut in an anticlockwise direction.
► Work at a slow rate of advance.
► Set the pendulum stroke [1-13] to 0–1.
► Set the stroke rate [1-6] to 1–5.
Store the centring mandrel in the depot
[11-3]
.
11-2
11-
3
11-411-5
11-1
11
KS-PS 400
11.5 SYSTAINER
Systainer
Many Festool products are shipped in a unique
system container, called "Systainer". This pro
vides protection and storage for the tool and ac
cessories. The Systainers are stackable and
can be interlocked together. They also can be
interlocked atop Festool CT dust extractors.
To open the Systainer
Turn the T-loc [SYS-b-1] to this posi
tion.
