13
CENTROTEC tools.
Attaching the CENTROTEC
Pull the release ring
[6-3]
forwards.
Attach the tool chuck to the drill spindle
[6-4]
.
Release the ring
[6-3]
.
Detaching the CENTROTEC
Pull the release ring
[6-3]
forwards.
Remove the tool chuck.
Changing tools
Pull back the green release ring
[6-2]
to attach
or detach tools with a CENTROTEC shank.
When attaching the tool, rotate until the hexa-
gon shank
[6-1]
engages in the hexagon holder
on the drill spindle.
Release the ring
[6-2]
.
Chuck BF-FX 8
The chuck BF-FX 8 is used for clamping drill and
screwdriver bits up to 8 mm chuck diameter.
Attaching the chuck BF-FX 8
Attach the chuck to the drill spindle
[7-5]
.
Pull the release ring
[7-3]
forwards.
Turn until the hexagon pin
[7-4]
on the chuck
engages in the hexagon socket holder in the
drill spindle.
Push the chuck all the way onto the drill spindle.
Release the ring
[7-4]
.
Detaching the chuck BF-FX
Pull the release ring
[7-4]
forwards.
Remove the chuck.
Changing tools
Turn the clamping sleeve
[7-2]
anticlockwise to
open the clamping jaws
[7-1]
.
The arrow on the spindle indicates the opening
direction.
Insert the tool into the chuck.
Turn the clamping sleeve
[7-2]
clockwise to
clamp the tool.
CAUTION
Tool has sharp edges and can cause cutting inju-
ries curing a tool change!
Wear protectiv gloves!

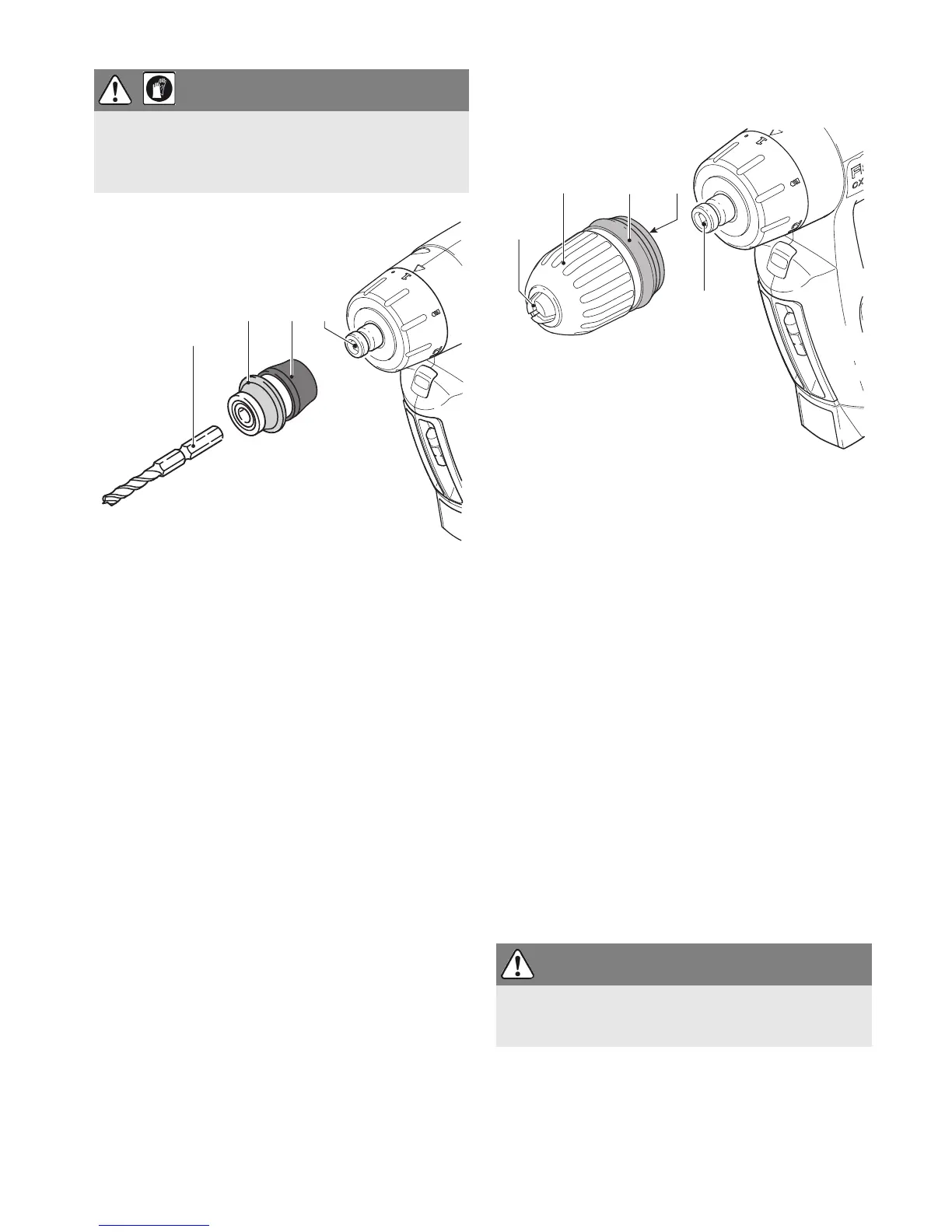

6
WH-CE
CENTROTEC
®
6-2 6-3 6-4
6-1
CAUTION
Risk of injury
Clamp the tool centrally in the chuck!
7
BF-FX 8
7-2
7-5
7-3
7-1
7-4
