14
Angle attachment XS-AS
The angle attachment XS-AS (partly accessories)
allows you to work (drill, fasten) vertically in rela-
tion to the longitudinal axis on the machine.

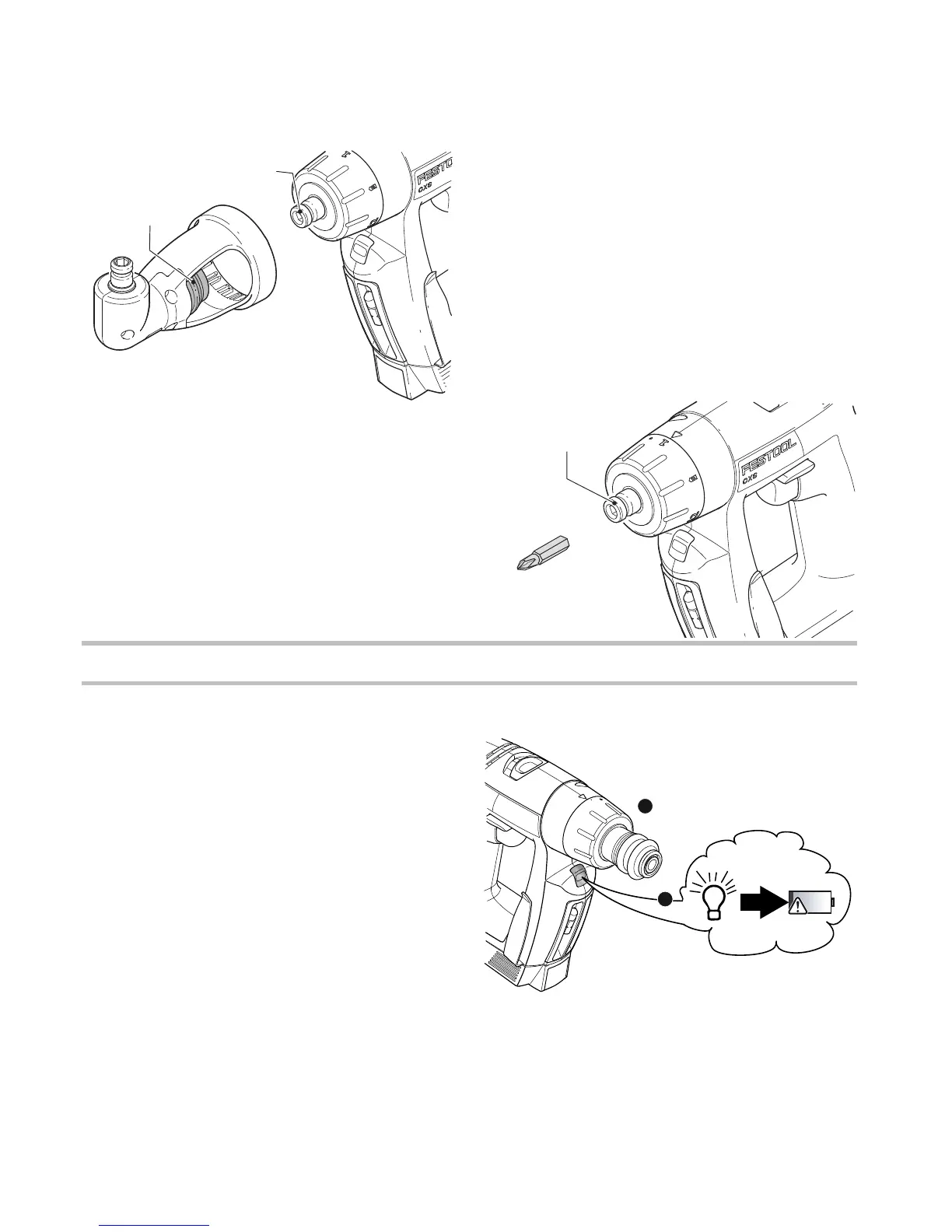

Fitting the angle attachment XS-AS
Pull the green release ring
[8-1]
forwards.
Fit the angle attachment to the drill spindle
[8-
2]
.
Turn the attachment until is engages in the re-
quired position.
You can engage the angle attachment in 16 dif-
ferent positions.
Release the ring
[8-1]
.
Removing the angle attachment XS-AS
Pull the green release ring
[8-1]
forwards.
Remove the angle attachment.
Changing tools
The tools can be fixed on the angle attachment via
CENTROTEC tool chuck, the chuck BP-XS 8 or di-
rectly into the drill spindle.
Tool holder in the drill spindle
Bits can be inserted directly in the hexagon socket
holder on the drill spindle
[9-1]
to shorten and re-
duce the weight of the machine.
Working with the machine
Consider the pictures on the fold-out page.
Switch on/off
The switch
[1-6]
is an on/off switch (press = ON, re-
lease = OFF).
The speed of the machine depends on how far
the ON/OFF switch is pressed in.
When the ON/OFF switch is released, the work-
ing spindle (chuck) stops immediately.
The LED bulb
[1-10]
lights up when the ON/OFF
switch is pressed
[1-6]
.
Bit store
Bits or bit holders are inserted sideways into the bit
store [1-9].
Warning signals [10]
Machine shuts down, light flashes twice:
Battery pack is empty.
Change the battery pack.
Machine shuts down, light does not flash:
Machine is overheated or has been overloaded.
Reduce the machine load.
Allow the machine to cool down.
8
XS-AS
2-8
1-8
