7.2 Capacity indicator

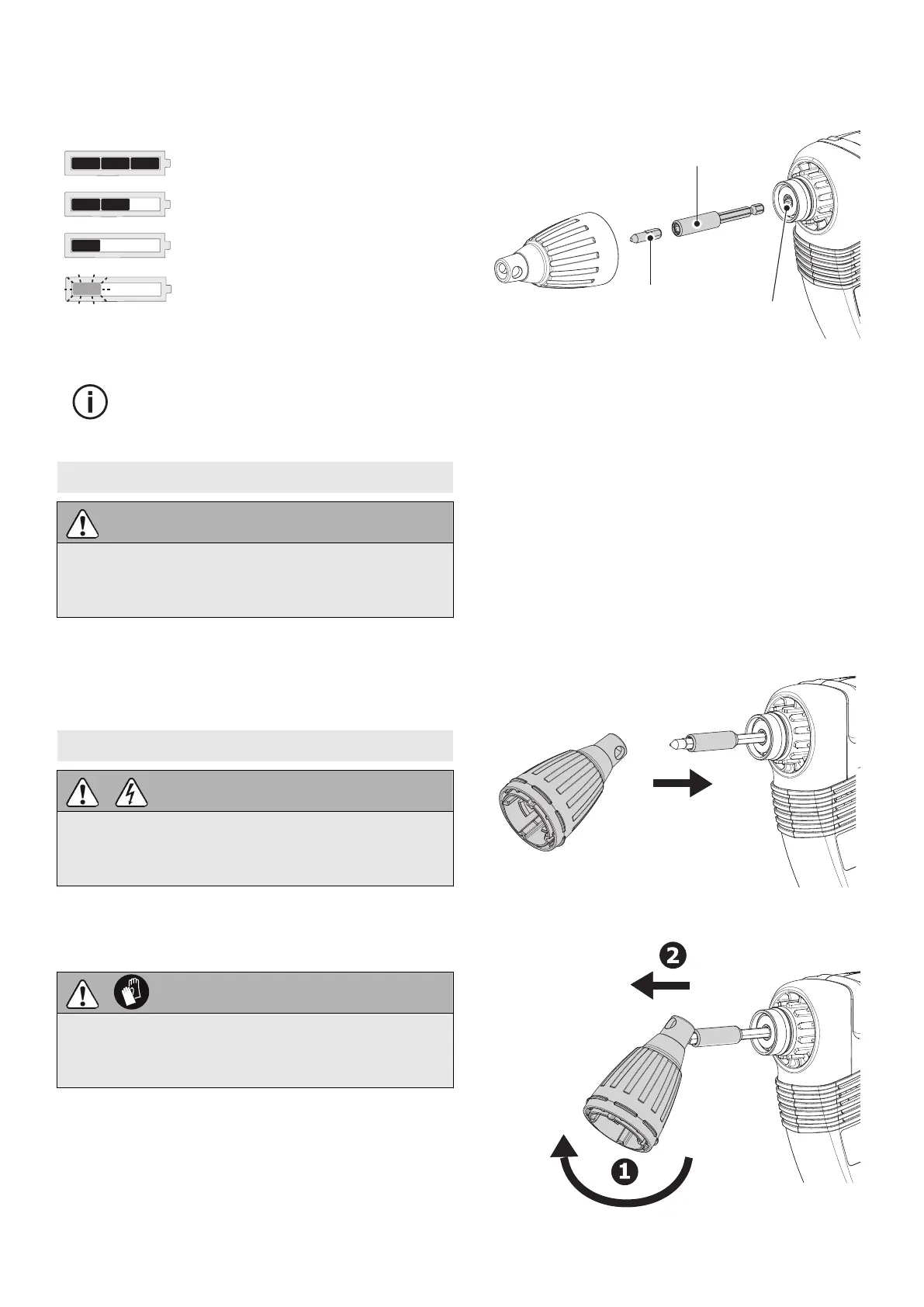

The capacity display [1-8] indicates the charge
of the battery pack for approx. 2 seconds after
the button [1-9] is pressed:
70–100%
40–70%
15–40%
< 15%
*
*
Recommendation: Charge the battery pack
before any further use.
Further information about the battery
pack and charger can be found in the
corresponding operating manual.
8 Settings
CAUTION
Risk of injury
► Only adjust the settings when the power
tool is switched off.
8.1 Changing direction of rotation [1-3]
– Switch to the left = clockwise rotation
– Switch to the right = counterclockwise rota
tion
9 Tool holder, attachments
WARNING
Risk of injury, electric shock
► Always disconnect the battery pack before
any type of work on the machine!
9.1 Bit holder
The bit holder enables the operator to change
drill bits quickly.
CAUTION
Risk of injury from hot and sharp tool
► Do not use any blunt or faulty tools.
► Wear protective gloves.
Attaching the bit holder
► Move the switch [1-4] to the MAN position.
► Push the bit holder [3-2] into the tool hold
er [3-3] until it clicks into place.
► Place the bit [3-1] in the holder.
► Then affix the depth stop to the transmis
sion housing, as described in section .
Removing the bit holder
► Take out the depth stop as described in sec
tion .
► Remove the bit holder from the tool holder
by pulling firmly.
9.2 Changing the bit
To change the bit [1-6], you can use the depth
stop [1-5].
► To do this, place the depth stop on the bit as
shown in figure [3b].
► The bit can be taken out by tilting the depth
stop with the bit, while pulling at the same
time.
► Then place the new bit in the bit holder.
