The current setting can be read off the pre
setting display [10-2]
Once the setting is made, drive in a test screw,
then, if necessary, correct the depth setting us
ing the adjusting wheel [10-1]. Each setting ad
justment shifts the stop by ± 0.1 mm.
We recommend screwdriving in the
automatic mode – see section 10.1 b).

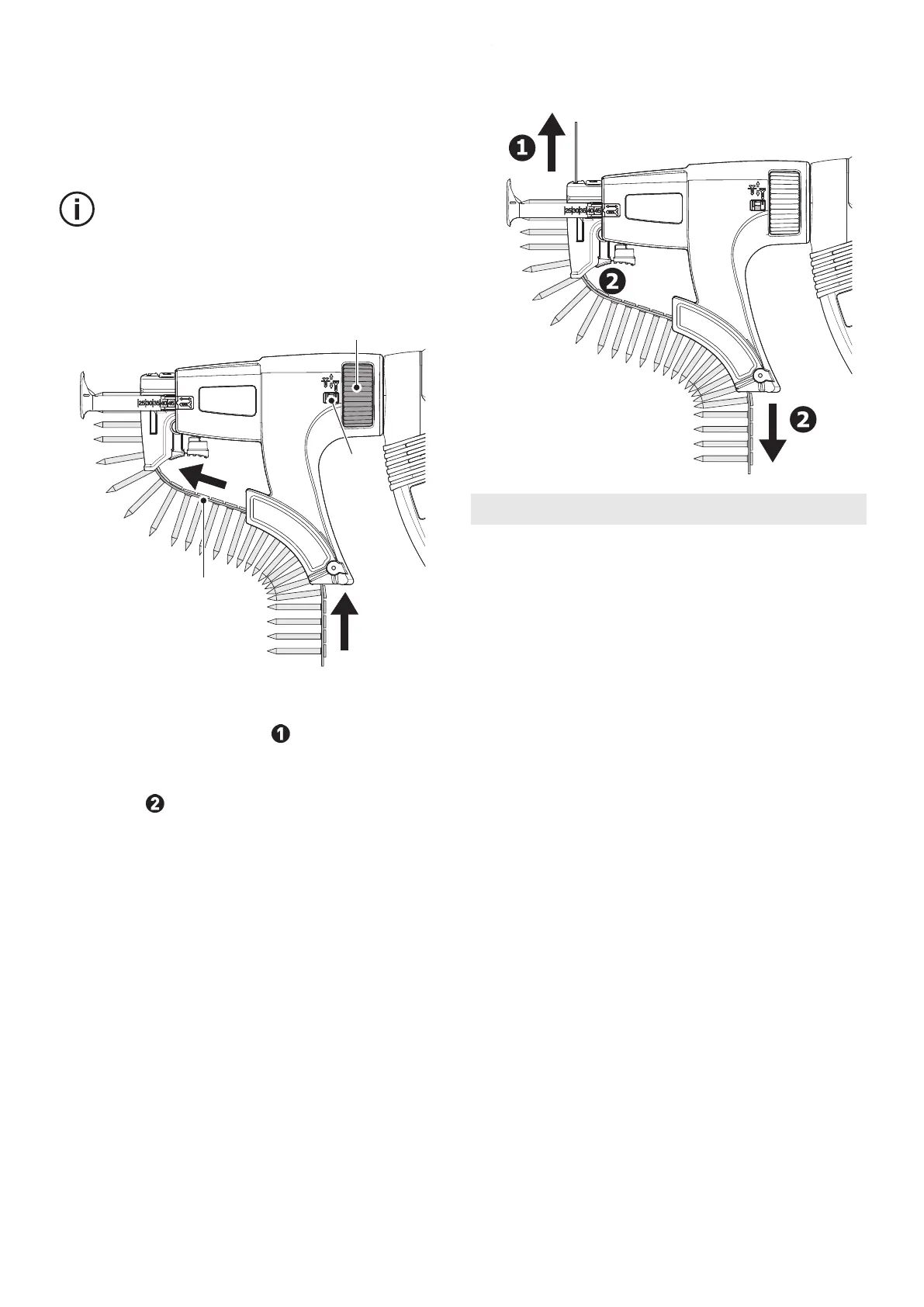

Removing collated screws
► Remove the collated screws by pulling up
wards once (figure [11]
) or by engaging
the transport lever at the same time as
pulling the collated screws downwards (fig
ure [11]
).
11 Working instructions
– The magazine attachment must not be held
in the area of the depth stop.
– Each screwdriving process must be com
pleted in full. Interrupting a screwdriving
process or applying pressure when screw
driving can cause the tool to malfunction.
– The collated screws must only be changed
when the tool is at a standstill.
– The magazine attachment must under no
circumstances be used in any way other
than that described in this operating man
ual.
– Use only original screwdriver bits.
– Use only original collated screws.
– The collated screws must always be kept in
their original packing.
– Always work at right angles to the board
that is being affixed.
11.1 Magazine attachment maintenance
The magazine attachment is essentially mainte
nance-free. After an extensive period of use,
however, it is recommended to clean it with
compressed air.
The magazine attachment can be lubricated
around the area of the carriage guide – see fig
ure [12].
For the purposes of cleaning, the magazine at
tachment can be dismantled as described be
low.
Prior to cleaning, remove the collated screws
from the magazine as described in section "Re
moving collated screws".
