Fetco CBS-2131XTS - Back Panel Assembly Diagrams (Continued); CBS-2131;41 CE Back Panel Diagram; CBS-2131;41 CE Back Panel Parts List

39

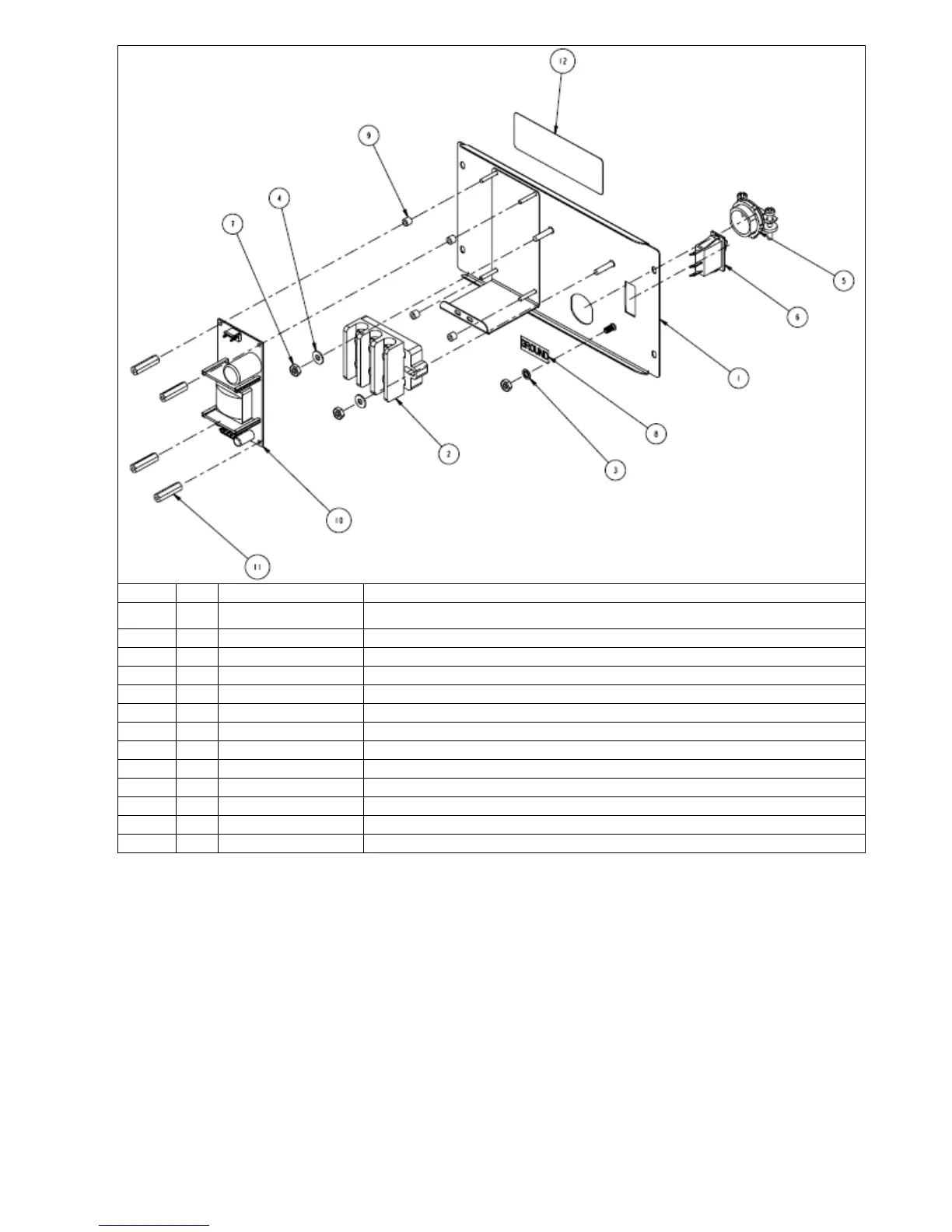

BACK PANEL ASSEMBLY, CBS-2131XTS Drawing 1102.00209.00
Ref # Part Number Name
1 1 1112.00226.00 WELDMENT BACK COVER 2131 AND 2141
2 1 1052.00002.00 TERMINAL BLOCK, 3 POLE, W/ MARKING STRIP
3 1 1083.00011.00 WASHER, #8 SCREW SIZE, INTERNAL TOOTH LOCK
4 2 1083.00016.00 WASHER, #8 SCREW SIZE, FLAT
5 1 1086.00008.00 CONNECTOR, CABLE CLAMP, 3/4"
6 1 1058.00020.00 SWITCH, PWR ROCKER RED, ILLUM. 250VAC
7 3 1084.00006.00 NUT, 8-32 18-8 HEX MACHINE SCREW
8 1 1044.00003.00 LABEL GROUND
9 4 1081.00006.00 SPACER, 6MM OD x 3.2MM ID x 5MM LG, Z/P
10 1 1052.00001.00 POWER SUPPLY, 90-264VAC/24VDC, 1.8A
11 4 1029.00012.00 SPACER, .25" HEX X 1" LG, FEM #4-40 THREAD
12 1 1046.00030.00 LABEL WARNING, DISCONNECT FROM POWER SOURCE
